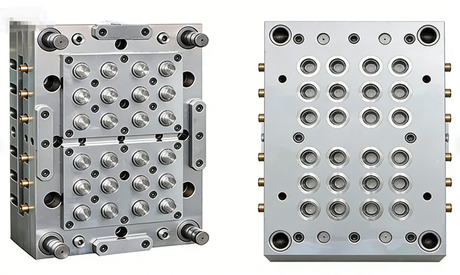

24-Cavity Bottle Cap Mold Case Study

Stabilizing Cavity-to-Cavity Consistency for Water Seal Closures

This is an anonymized case study of a 24-cavity bottle cap mold developed for water bottle cap sealing and drinking water closure applications. The project focused on one core question:
How do you keep 24 cavities running consistently enough to reduce fitting work, stabilize sealing performance, and shorten trial and validation time?

For cap mold projects like this, the customer usually does not struggle with one cavity only. The real issue is whether all cavities behave the same way — in assembly, in sealing, and in repeat production. That is the problem this project was built to solve.

10-Second Summary

Best Fit For

• 24-cavity and higher multi-cavity cap mold projects

• water bottle cap sealing applications

• drinking water closures

• projects where cavity variation leads to leakage, long setup time, or repeated fitting work

What We Help Improve

• lower cavity-to-cavity variation

• more stable sealing performance

• fewer fitting adjustments during assembly and trial runs

How We Do It

• controlled machining of critical mold components

• process inspection at key stages

• functional datum and CTQ-based control

• replaceable component strategy for easier maintenance

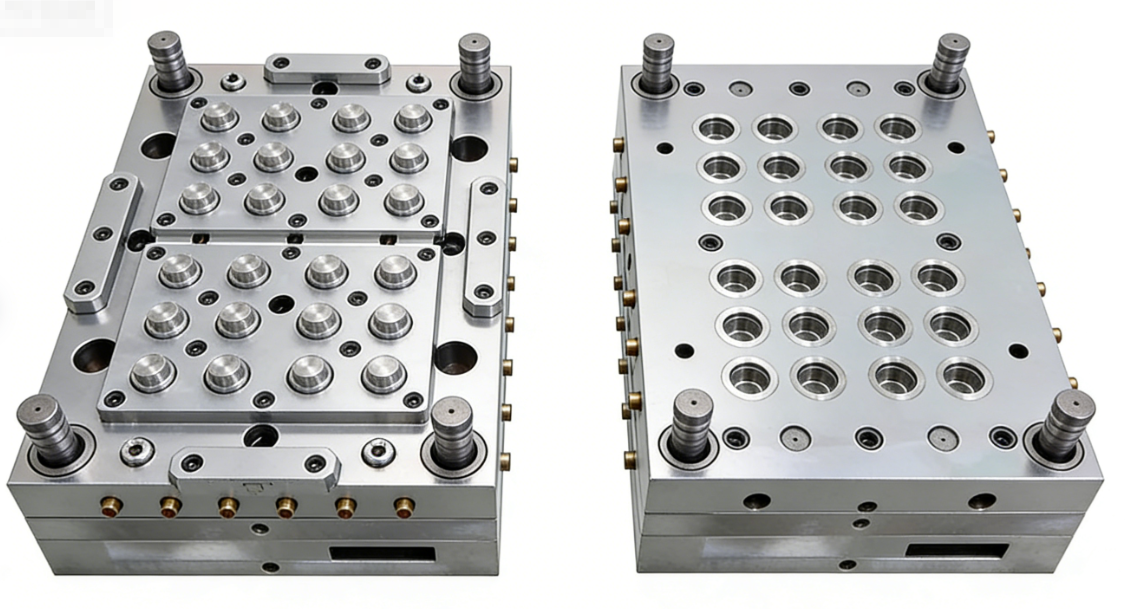

Project Snapshot

The Customer’s Challenge

The customer’s target was not only to make caps. The target was to make them consistently across all 24 cavities while keeping sealing performance stable in production.

The main risks in this type of project were:

• some cavities showing different sealing behavior

• thread engagement changing slightly from cavity to cavity

• fitting work increasing during assembly

• validation taking longer because sealing was not stable enough

• trial molding requiring repeated adjustments before all cavities ran consistently

In short, the issue was not whether a single cavity could pass.
The issue was whether all 24 cavities could perform the same way.

Why This Project Was Sensitive

For bottle cap molds used in sealing applications, the most critical features are usually not all dimensions equally. The real focus is on CTQ features, including:

• sealing lands

• thread-related diameters

• fit diameters

• concentricity-related features

• shutoff and assembly-related areas

Small drift in these areas can lead to:

• uneven sealing contact

• unstable thread performance

• higher flash risk

• more bench fitting during assembly

• longer trial and validation cycles

This is why the project was treated as a consistency control problem, not only as a machining problem.

Our Solution Strategy

Instead of looking at the mold only as a finished tool, we focused on the parts inside it that most directly affect repeatability.

1. Critical Mold Components First

We focused on the consistency of the mold components that most directly influence sealing and cavity behavior, including:

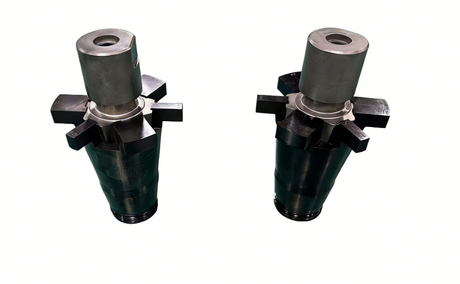

• core pins

• cavity inserts

• neck rings

• thread inserts

• fit-related replacement parts

2. CTQ-Based Machining Route

Machining routes were selected according to:

• feature type

• sealing or thread function

• access for cutting or EDM

• fit-related risk

• inspection requirement

This helped keep tighter control on the areas that actually affect mold behavior.

3. Functional Datum Control

Datum strategy was aligned to fit and sealing functions, not only part shape. This reduced hidden variation that often appears only after assembly.

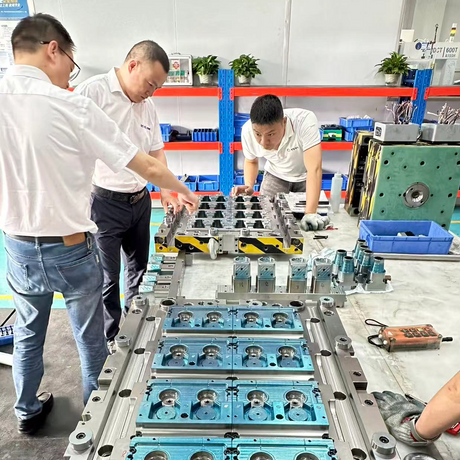

4. Inspection Embedded in the Process

Inspection was not treated as a final gate only. Critical dimensions were checked during production and reviewed again before release.

Cavity-to-Cavity Consistency

What We Actually Check

We do not define cavity consistency only by appearance. We verify it through the features that directly affect mold performance.

Typical Control Items

• concentricity / runout on fit-related diameters

• thread-related dimensions where closure performance matters

• sealing land position and related fit surfaces

• cavity-to-cavity dimensional comparison on defined CTQ features

• assembly-related dimensions before final mold build

Typical Inspection Gates

• after rough or semi-finishing

• after heat treatment where required

• after EDM / wire EDM

• before final fit-related operations

• before shipment

Typical Verification Methods

• Zeiss CMM for critical dimensions and geometry

• roundness / concentricity checks where required

• thread-related verification depending on the cap design

• visual and fit-related review before release

This means the goal is not only to qualify one cavity. It is to keep all 24 cavities behaving as consistently as possible.

Capability Snapshot

Note:
Tolerance capability applies only to defined CTQ features. Final acceptance depends on the drawing, agreed tolerance system, inspection plan, and project validation method.

Hot Runner vs. Cold Runner

Which One Fits the Project?

For cap mold projects, runner choice affects productivity, gate appearance, material use, and maintenance.

Hot Runner

Better suited for projects that need:

• higher production efficiency

• lower material waste

• cleaner cycle performance

• more consistent filling across cavities

Cold Runner

Can be considered for projects that prioritize:

• simpler mold structure

• lower initial tool cost

• specific resin or project preferences

The final selection should be based on cap design, resin, output target, and maintenance strategy.

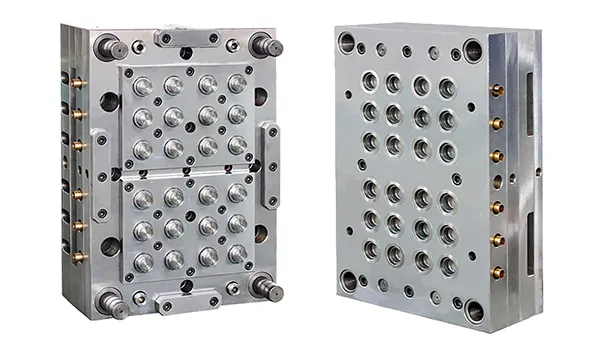

What This Project Needed Most

This project was not only about making a 24-cavity mold.
It was about building a mold that could:

• reduce cavity-to-cavity difference

• keep sealing more stable

• reduce repeated fitting during mold build

• shorten the time spent on validation and adjustment

• support more predictable production

That is the real reason buyers ask for a multi-cavity cap mold solution — not because they want more cavities, but because they want more stable output from those cavities.

Risk and Boundary Conditions

In sealing projects, unstable performance does not always come from the mold alone. It can also be influenced by:

• bottle neck matching condition

• resin batch variation

• machine control and process window

• hot runner temperature balance

• cap-body torque and validation conditions

For this reason, mold review and validation should always be considered together with the real application condition. Where needed, we can review the project with the customer based on actual closure structure and use conditions.

What You Need to Start

To review a similar project more efficiently, please provide:

• cap application

• cavity count

• 2D drawing

• 3D file

• sample, if available

• resin

• key CTQ points, if already defined

• target output or cycle expectation

• target lead time

Even if not all information is ready, we can still provide an initial review.

What You Can Expect From Us

If you share the drawing and CTQ list, we can typically provide:

• initial process route suggestion

• inspection focus points

• risk notes for fit, sealing, and cavity consistency

• RFQ review feedback

For standard project reviews, we aim to provide initial feedback within 24–48 hours, depending on input completeness.

Request a Quote

Working on a 24-cavity bottle cap mold or water closure project?
Send us your drawing, CTQ list, and project target.

We can review the mold structure, identify the critical risk points, and suggest a machining and inspection approach that supports:

• better cavity-to-cavity consistency

• more stable sealing performance

• fewer fitting adjustments

• faster validation and smoother production startup
