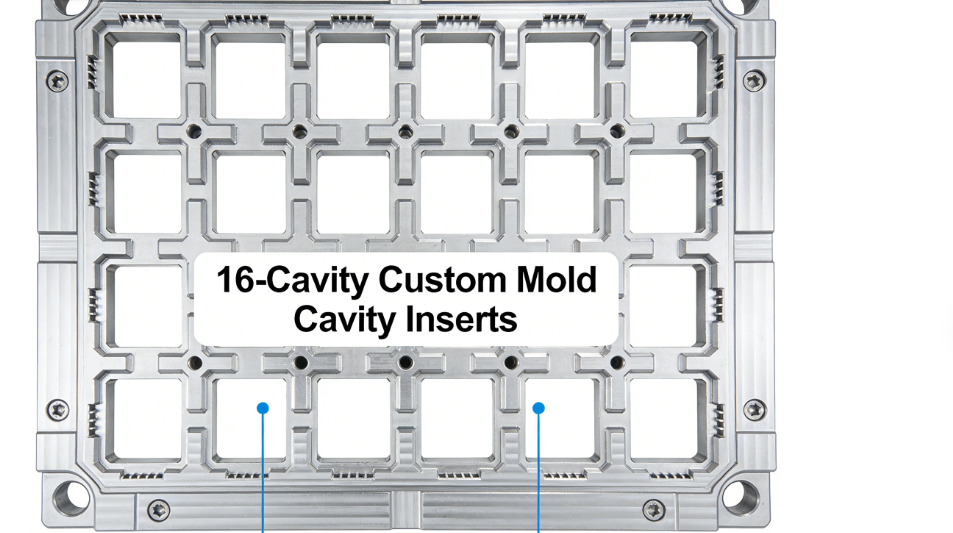

Custom 16-Cavity Mold Cavity Inserts for High-Speed Packaging Molds
Precision cavity inserts built for high-speed beverage and cosmetic packaging
Looking to optimize your multi-cavity production? SENLAN Precision manufactures custom 16-cavity mold cavity inserts for the demands of high-speed beverage and cosmetic packaging. As a direct source factory, we combine ±0.005 mm precision with competitive factory pricing to help improve mold efficiency, reduce fitting work, and support reliable interchangeability in production.
What These Inserts Are Built For
In 16-cavity packaging molds, cavity inserts do more than form part geometry. They directly influence cavity-to-cavity consistency, sealing behavior, maintenance efficiency, and the long-run stability of the mold.
That is why these inserts are developed as functional mold components, not just machined steel parts. You can explore our broader mold components range for related insert, core, and tooling solutions.
Why Choose SENLAN’s Custom Cavity Inserts?
Zero-Fitting Interchangeability
Our controlled “Digital DNA” machining logic helps every insert match the approved master part more closely. This reduces manual bench work, shortens maintenance time, and supports faster replacement in high-cavity molds.
Superior Surface Finish
Using SODICK Mirror EDM and precision finishing, we can achieve Ra 0.1 surface quality where required. This is especially valuable for appearance-sensitive cosmetic caps and closure parts that need stable release and clean cavity surfaces.
Optimized Thermal Management
For 16-cavity systems, cooling efficiency affects both output and dimensional stability. Water-path layouts can be engineered to improve heat transfer, helping reduce cycle time and lower the risk of deformation, shrinkage, or ovality.
Material Traceability
We use premium tool steels such as S136 ESR and STAVAX, selected according to application, resin, and mold-life target. Controlled material sourcing and processing help support longer service life and more stable edge condition over time.
Direct Factory Advantage
As a direct manufacturer, SENLAN keeps machining, fitting control, and inspection in one workflow. This helps reduce communication layers and gives buyers a more competitive total cost of ownership.
Technical Capability for 16-Cavity Systems
| Feature | Specification / Capability |
|---|---|
| Product Type | Custom 16-cavity mold cavity inserts for high-volume injection molding |
| Processing | High-Speed CNC (MAKINO), Mirror EDM (SODICK), Precision Grinding |
| Tolerance | ±0.005 mm on critical fit diameters and seating depths |
| Steel Grade | S136 ESR, 1.2083, H13 |
| Heat Treatment | Vacuum hardened, typically HRC 52–54 depending on application |
| Surface Finish | Ra 0.1 – Ra 0.4 (mirror polished or technical finish) |
| Quality Control | 100% CMM inspection; dimensional reports available upon request |
What These Inserts Help Improve
In high-cavity packaging molds, cavity inserts affect more than part shape. They directly influence:
- cavity-to-cavity consistency
- fit and sealing performance
- maintenance efficiency
- cycle stability in long production runs
- appearance quality on caps and closures
In a 16-cavity system, even small variation in insert geometry can create visible differences across cavities. That is why insert consistency matters as much as insert accuracy.
Typical Applications
Beverage Packaging
Suitable for high-output beverage closure molds where stable dimensions, clean sealing surfaces, and repeatable cavity performance are essential.
Cosmetic Packaging
Well suited for appearance-sensitive cap molds where surface quality, edge condition, and release performance affect the final product.
High-Speed Injection Molding
Designed for molds that need stable running performance, controlled wear, and faster maintenance replacement in multi-cavity production.
Frequently Asked Questions
How does SENLAN ensure consistency across a 16-cavity insert set?
We use a unified datum strategy across our machining process so that each insert is produced from the same reference logic. This helps keep the full insert set more consistent and supports faster replacement without individual cavity correction.
What is the pricing advantage of sourcing directly from SENLAN?
As a direct factory manufacturer, we reduce intermediary markups and keep machining, process control, and inspection in one workflow. This helps buyers control cost while still getting high-precision mold components.
What steel is best for cosmetic or beverage packaging inserts?
It depends on resin, mold-life target, corrosion risk, and surface-finish requirement. For many packaging applications, S136 ESR or STAVAX are preferred because of their polishability, stability, and corrosion resistance.
Can dimensional reports be provided?
Yes. CMM-based dimensional reports can be provided upon request for critical dimensions and fit-sensitive features.
Can you make replacement inserts later?
Yes. We support repeat manufacturing based on the approved master geometry and controlled reference logic, which helps reduce fitting work during maintenance replacement.
RFQ Information
To review your 16-cavity insert project efficiently, please send:
- 2D drawing or 3D file
- cavity layout
- material or hardness target
- resin information, if available
- expected mold life
- inspection report requirement, if any
NDA is available before drawing submission.
Process & Inspection Support
For buyers who need more detail on machining equipment, EDM capability, grinding, and inspection workflow, please refer to our technical advantages page.
