Custom Mold Component Quotation Checklist: What Buyers Should Send Before RFQ
```Quick Answer: Before requesting a custom mold component quotation, buyers should prepare 2D drawings, 3D CAD files, material grade, hardness, tolerance requirements, surface finish, EDM or grinding features, quantity, inspection needs and delivery expectations. This information helps the supplier review machining feasibility, documentation scope and lead-time risk before quoting.
```For mold builders, injection molding companies and product manufacturers, sending a quotation request is not just a purchasing step. It is the first technical handoff between the buyer and the mold component supplier.

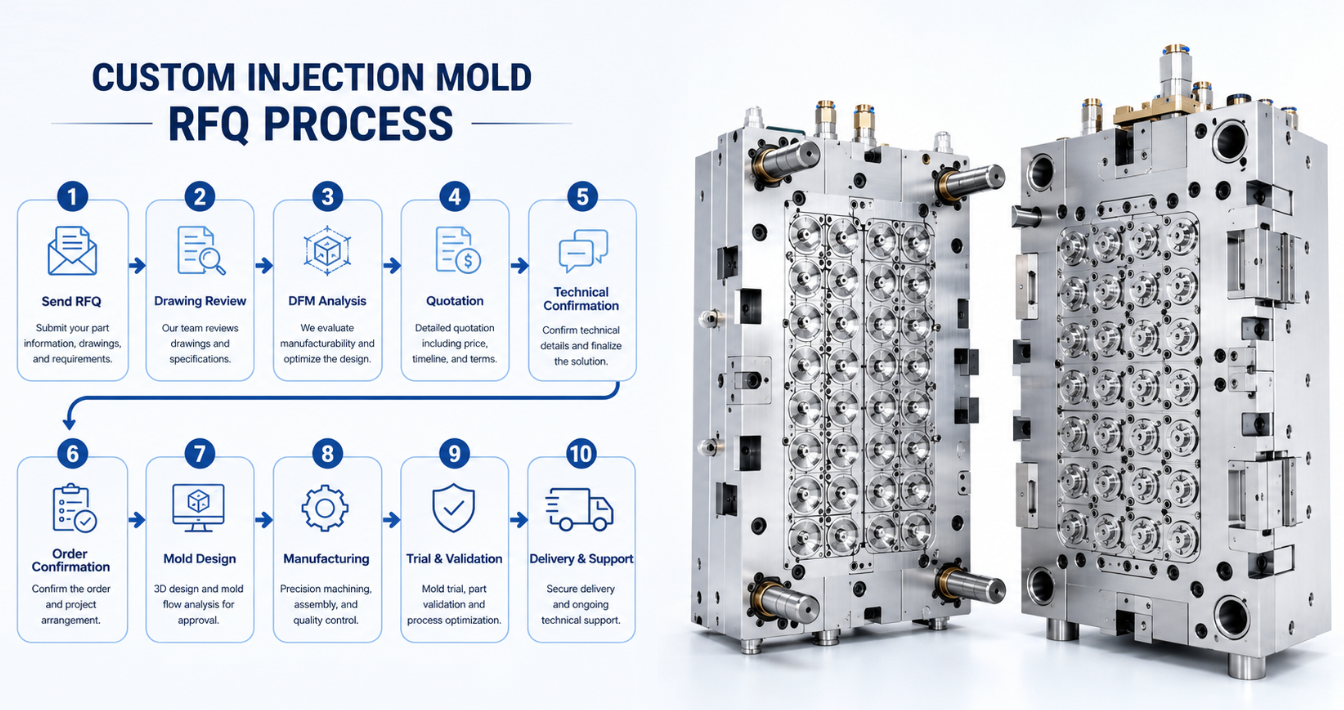

```If the first message includes only a part name and a 3D model, the supplier may not be able to evaluate tolerance risk, material suitability, EDM requirements, inspection scope or delivery feasibility. This often leads to repeated clarification and slower quotation.
This checklist explains what buyers should send before requesting custom mold components such as core pins, cavity inserts, sleeves, thread cores, sliders, lifters, sealing inserts and other precision injection mold parts.
```Why a Complete RFQ Matters for Custom Mold Components
```TL;DR: Custom mold components are often function-critical parts inside an injection mold. A complete RFQ helps the supplier understand not only the part shape, but also the forming, sealing, sliding, fitting or replacement function behind the component.
Custom mold components are different from standard purchased parts. A mold core may define inner geometry. A cavity insert may affect product appearance and dimensional stability. A thread core may control assembly fit. A sealing insert may influence leakage, flash or shut-off performance.
Because these parts work inside a mold system, quotation accuracy depends on more than outside dimensions. The supplier needs to understand the component’s function, material condition, critical tolerances, surface requirements and inspection expectations.
A complete RFQ allows the supplier to evaluate whether the component is suitable for CNC machining, EDM, wire EDM, precision grinding, polishing, heat treatment or a combined process route.
```Essential Files to Send Before Quotation
```TL;DR: Buyers should send both 2D drawings and 3D CAD files whenever possible. The 3D file helps the supplier understand geometry, while the 2D drawing defines tolerances, datum references, surface finish and inspection requirements.
The most useful quotation package usually includes:
- 2D drawing with tolerance callouts
- 3D CAD file in STEP, X_T, IGES or another usable format
- Material grade and hardness requirement
- Surface finish, polishing or coating requirement
- Quantity and expected repeat demand
- Inspection report requirement
- Application or mold type
- Target delivery date
The 2D drawing is especially important because it defines the measurement target. Without tolerance values, datum references and critical dimensions, the supplier may need to quote based on assumptions or ask for clarification before proceeding.
```Before You Contact a Mold Component Supplier
```TL;DR: Before contacting a mold component supplier, buyers should prepare the files and technical details that affect quotation accuracy. A clear inquiry helps the supplier review machining feasibility, inspection scope and delivery risk faster.
Before sending an RFQ, buyers should check whether the inquiry includes the key information needed for technical review. This does not mean every detail must be final, but the supplier should be able to understand the part geometry, material requirement, tolerance level, function inside the mold and expected delivery target.
- Are the 2D drawing and 3D CAD file available?
- Are the critical tolerances clearly marked?
- Is the material grade confirmed?
- Is the part new, replacement or modified from an existing mold?
- Are inspection reports or CMM reports required?
- Is the target delivery date realistic for material, heat treatment, EDM, grinding and inspection?
For custom mold component projects, SENLAN reviews quotation requests based on drawing completeness, material requirements, tolerance sensitivity, EDM or grinding feasibility, inspection documentation and the component’s function inside the mold.
If buyers already have 2D drawings, 3D CAD files and basic project requirements, they can submit drawings for custom mold component quotation review so the supplier can evaluate material, tolerance, EDM feasibility, inspection needs and lead-time expectations before quotation.
```Material, Hardness and Surface Finish Requirements
```TL;DR: Material grade, hardness, surface finish and coating requirements should be included in the first quotation request. These details affect machining route, heat treatment, polishing, inspection and delivery schedule.
Material selection affects how the component will be machined, treated, polished and inspected. A core pin, cavity insert, sleeve or thread core may require wear resistance, corrosion resistance, dimensional stability or polishability depending on the final application.
Buyers should clearly state the required material grade and hardness. If surface treatment is needed, it should be mentioned early because coating, nitriding, polishing or other processes may change the manufacturing sequence and lead time.
For applications such as medical consumables, bottle caps, closures, cosmetic packaging and high-cavitation packaging molds, surface finish and wear behavior can directly affect release, flash control, sealing, cosmetic appearance or replacement frequency.
```How to Define Tolerances and Critical Dimensions
```TL;DR: Instead of using general terms such as “high precision,” buyers should mark critical dimensions and tolerance values clearly. Diameter, concentricity, runout, shut-off faces, sealing surfaces and datum relationships may need special attention.
Not every dimension has the same importance. Some features control fit, sealing, sliding or molded part geometry, while others may only define clearance or non-critical shape. A useful drawing should help the supplier separate critical dimensions from general machining dimensions.
For precision mold components, buyers may need to define:
- Diameter tolerance
- Concentricity or runout requirement
- Flatness and parallelism
- Profile or contour tolerance
- Thread accuracy
- Shut-off surface requirements
- Sealing surface requirements
- Datum references for inspection
This is especially important when components are used in multi-cavity molds or replacement mold assemblies. If cavity-to-cavity behavior matters, the supplier needs to know which dimensions control consistency.
```How to Describe EDM, Wire EDM or Grinding Features
```TL;DR: Buyers do not always need to choose the exact machining process, but they should clearly mark features that may require EDM, wire EDM or grinding. Deep slots, sharp internal corners, hardened steel details and tight shut-off features should be visible in the drawing package.
Some mold components can be machined mainly by CNC milling or turning. Others require EDM, wire EDM, grinding or polishing to achieve the required shape, accuracy or finish.
EDM or wire EDM may be needed when the component includes:
- Deep cavities
- Narrow slots
- Sharp internal corners
- Small internal radii
- Thin ribs or shut-off details
- Hardened steel features
- High-accuracy profiles
Grinding may be required for tight diameter control, flatness, parallelism, high-accuracy shoulders or mating surfaces. If EDM surface finish, grinding allowance or polishing direction matters, buyers should include that information before quotation.
```What Inspection Details Should Be Included
```TL;DR: Inspection requirements should be confirmed before quotation because they affect measurement time, documentation workload and delivery planning. Buyers should state whether they need basic inspection, full dimensional reports, CMM reports or material-related documents.
Inspection requirements can change how the supplier plans the job. A simple mold component may only require basic dimensional checks. A critical replacement insert, core pin or sealing component may require more detailed measurement and documentation.
Useful inspection information includes:
- Which dimensions require reporting
- Whether a full dimensional report is needed
- Whether CMM inspection is required
- Whether concentricity or runout must be measured
- Whether material certificates are required
- Whether heat treatment records are required
- Whether coating documentation is required
- Whether cavity identification is required
When these requirements are included in the first inquiry, the supplier can quote inspection scope more accurately and avoid schedule changes later.
```Extra Information for Replacement Mold Components
```TL;DR: Replacement mold components require extra context because they must match an existing mold. Samples, old part photos, defect photos, mating-part information and cavity identification can help reduce fitting risk.
Replacement components are not always simple copies. The existing mold may already have wear, damage, previous manual fitting or cavity-specific variation. If the new part must work without excessive fitting, the supplier needs to understand the matching condition.
For replacement mold parts, buyers should explain:
- Whether the part is worn, broken or being modified
- Whether the part must match a specific cavity
- Whether manual fitting is acceptable
- Whether the part affects flash, leakage, sticking or dimensional drift
- Whether old samples or mating components are available
- Whether the replacement should follow the original design or improve it
This context helps the supplier avoid quoting the component as an isolated part when the real requirement is assembly fit and molding stability.
```RFQ Email Checklist for Custom Mold Components
```TL;DR: A clear RFQ email should give the supplier enough information to review the drawing without repeated clarification. Buyers should include files, material, quantity, tolerance focus, inspection needs and delivery expectations in the first message.
A practical RFQ email for custom mold components should include the following information:
- Project name or part name
- 2D drawing and 3D CAD file attachment
- Material grade and hardness requirement
- Quantity and expected repeat demand
- Critical dimensions or functional surfaces
- Surface finish, polishing, coating or heat treatment requirement
- Inspection report requirement
- Target delivery date
- Application, such as cap mold, closure mold, cosmetic mold, medical mold or packaging mold
- Whether the part is a new component or replacement component
This email structure allows engineering and procurement teams to compare supplier responses more effectively. It also helps the supplier respond with a quotation that reflects real manufacturing requirements instead of incomplete assumptions.
```Common RFQ Mistakes That Delay Quotation
```TL;DR: Most quotation delays happen because the first inquiry does not explain the functional requirement of the component. Missing drawings, unclear tolerances, unknown material and undefined inspection scope usually lead to repeated technical clarification.
- Sending only a 3D model without a 2D drawing
- Using “high precision” without defining tolerance values
- Not marking critical sealing, sliding or shut-off surfaces
- Missing material grade or hardness requirement
- Not explaining whether the part is new or replacement
- Confirming coating, polishing or heat treatment only after quotation
- Requesting urgent delivery without confirming inspection scope
- Not sharing defect photos for repair or replacement projects
A well-prepared RFQ reduces these delays and makes supplier comparison more practical for both engineering and purchasing teams.
```Practical RFQ Summary Table
```TL;DR: A useful RFQ should connect drawing files, material data, functional surfaces, inspection needs and delivery expectations. The clearer the first inquiry is, the more reliable the quotation will be.
| RFQ Information | Why It Matters |
|---|---|
| 2D drawing | Defines tolerances, datum references, critical dimensions and inspection scope. |
| 3D CAD file | Helps the supplier evaluate geometry, tool access and machining route. |
| Material grade and hardness | Affects machining method, heat treatment, wear resistance and delivery planning. |
| Surface finish or coating | Influences release behavior, corrosion resistance, polishing work and molding performance. |
| Critical tolerances | Shows which dimensions control fitting, sealing, sliding, shut-off or molded part consistency. |
| Inspection requirements | Clarifies whether basic checks, full dimensional reports, CMM reports or certificates are needed. |
| Application and mold function | Helps the supplier understand forming, sealing, ejection, replacement or maintenance risk. |
| Delivery target | Supports realistic planning for material, heat treatment, EDM, grinding, polishing and inspection. |
FAQ: Custom Mold Component Quotation
```What should buyers send for a custom mold component quotation?
Buyers should send 2D drawings, 3D CAD files, material grade, hardness requirement, tolerance callouts, surface finish, quantity, inspection requirements, application information and target delivery date.
Is a 3D CAD file enough for quotation?
A 3D CAD file is useful for geometry review, but it is usually not enough for accurate quotation. A 2D drawing is still needed to define tolerances, datum references, critical dimensions and inspection scope.
When should inspection requirements be mentioned?
Inspection requirements should be mentioned before quotation. Full dimensional reports, CMM reports, material certificates, heat treatment records and coating documents can affect measurement time, documentation work and delivery schedule.
What extra information is needed for replacement mold components?
For replacement components, buyers should provide old part photos, samples if available, mating-part information, cavity number, current defect photos and whether manual fitting is acceptable.
How can buyers reduce quotation delays?
Buyers can reduce delays by sending complete drawings, CAD files, material requirements, tolerance details, inspection expectations, quantity and delivery targets in the first inquiry.
```Conclusion
```A custom mold component quotation becomes more accurate when the supplier receives the right technical information at the beginning. Drawings, CAD files, material grade, tolerances, surface finish, EDM features, inspection requirements and replacement context all help the supplier evaluate the project before quoting.
For buyers who need mold cores, cavity inserts, core pins, sleeves, thread cores, sealing inserts or other precision injection mold parts, a clear first inquiry can shorten communication time and improve quotation reliability. The more clearly the drawing package explains both geometry and function, the easier it is for the supplier to review machining feasibility, lead time and inspection scope.
```
