Best CNC & EDM Shops for Hardened Steel Mold Parts: How to Evaluate Capability (Not a Top-10 List)
Choosing a CNC and EDM supplier for hardened steel mold parts is not really about finding the most famous name.
It is about identifying who can machine hardened H13, S136, 420 stainless, D2, and similar steels with stable process control, measurable inspection evidence, and replacement consistency.
This guide helps you evaluate capability, process route, and inspection evidence—so you do not pay later in flash, bench fitting, validation delay, or unplanned downtime.

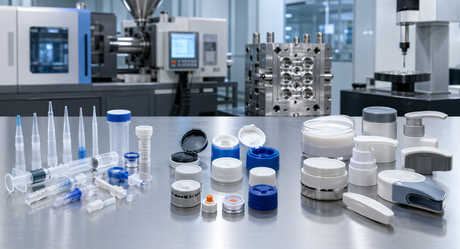

For serious buyers in packaging, medical, and caps/closures projects, that distinction matters more than any “top shop” list.
What Buyers Are Really Looking for in Hardened Steel Mold Parts Machining
Hardened steel mold parts are not difficult because they are made of steel. They are difficult because once hardness moves into the 48–60+ HRC range, small errors in heat, wear, and geometry control become expensive production risks.

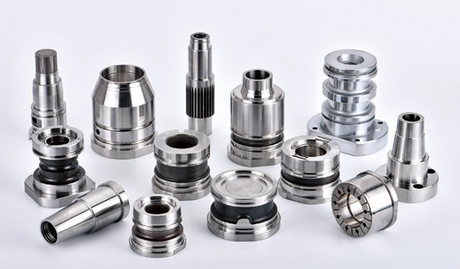

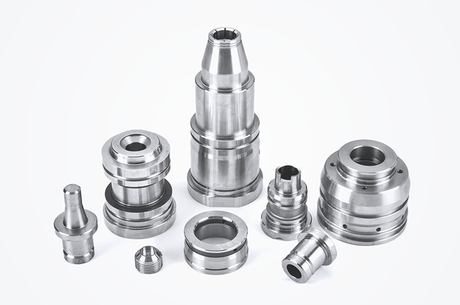

The parts most often affected include core pins, inserts, cavity blocks, thread cores, slides, and lifters used in packaging, medical, and closure tooling.
The hidden cost is rarely the machining invoice itself. It is the downstream cost of:
- bench fitting hours
- mold validation delays
- scrap or flashing rework
- unplanned downtime
- non-interchangeable spare parts
Hard Milling + EDM: Why Process Route Matters More Than Machine Count
A general CNC shop may still struggle with hardened mold inserts if it treats the job like standard machining. Hardened mold work usually requires a process chain built around hard milling, sinker EDM, wire EDM, grinding, and inspection logic—not just available spindle time.
Shops that support serious hardened steel mold work usually know how to separate features by process:
- Hard milling for stable geometry control and semi-finishing strategy

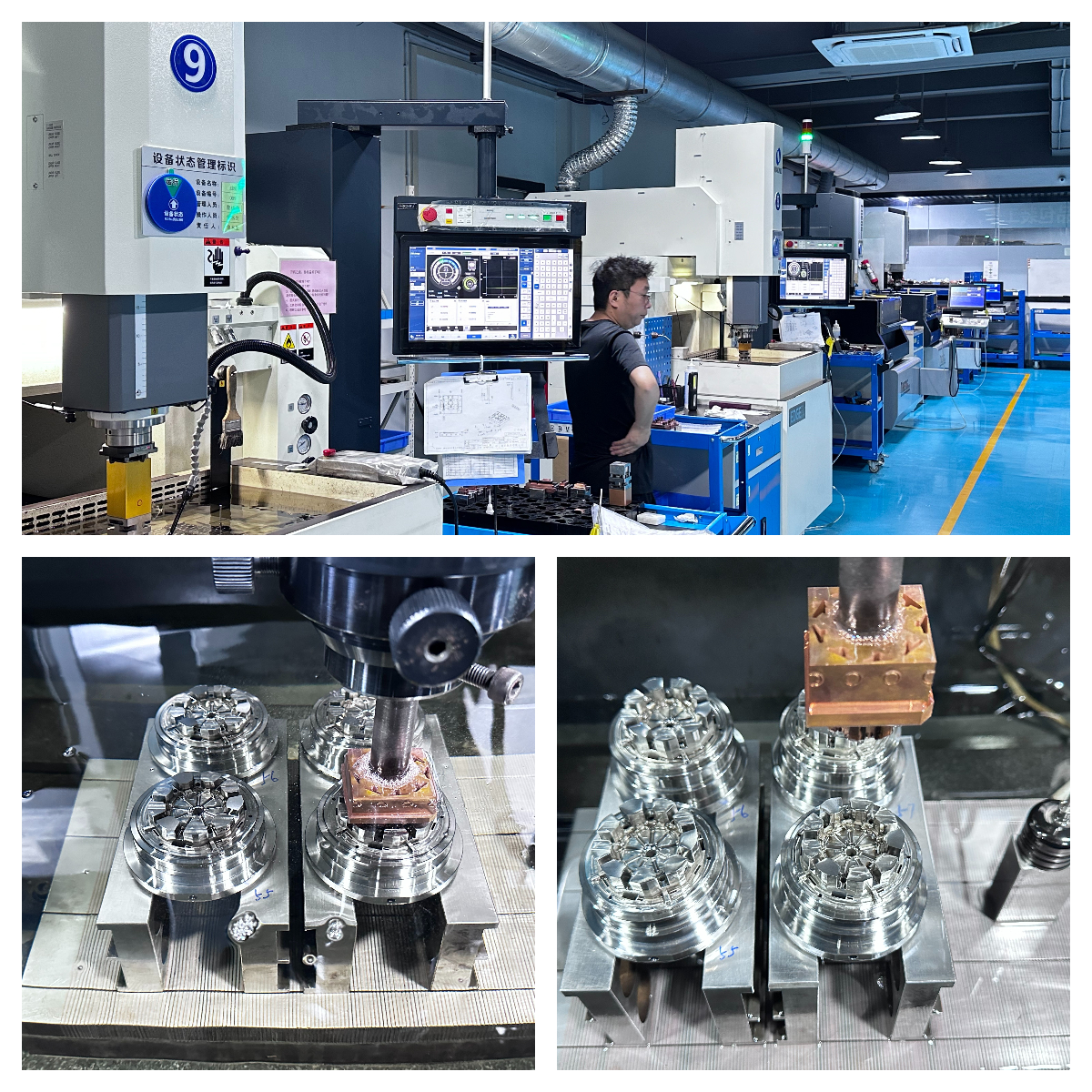

- Sinker EDM mold components for deep ribs, sharp corners, and fine cavity details
- Wire EDM for hardened tool steel where narrow slots, interlocks, and profile accuracy matter
- CMM verification to tie CTQ features back to actual reports
On SENLAN’s public site, this capability is presented through packaging and medical mold component applications, equipment coverage across Hardinge / Makino / Sodick / grinding, and Zeiss-based inspection support. :contentReference[oaicite:1]{index=1}
Mid-point CTA: If you are not ready to share drawings yet, you can still send part type + steel + hardness + 3 CTQ features, and we can suggest a likely process route first.
Ask for a Process Route Suggestion
Ordinary CNC Shop vs Hardened Mold Specialist
| Evaluation Area | General CNC Shop | Hardened Mold Specialist |
|---|---|---|
| Process Strategy | Standard milling based on general geometry | Hard milling + EDM combined by CTQ feature type |
| Risk Control | Machines to drawing only | Separates roughing, semi-finishing, EDM, and post-heat-treatment control |
| Inspection | Basic dimensional check or partial sampling | CMM, FAIR/ISIR logic, and cavity-to-cavity comparison where needed |
| Spare Parts | Can often make one part | Builds toward interchangeable mold spare parts |
| Typical Outcome | Part may be made once | Part can be repeated, verified, and replaced with lower fitting risk |
Precision Mold Components: Where Supplier Differences Become Real
Hardened steel work usually fails in the margins. Not in the obvious dimensions, but in the CTQ features that control fit, sealing, shut-off, alignment, and repeatability.
This is why “tight tolerance mold components ±0.005 mm” should never be read as a blanket promise across every feature on every part. The more meaningful question is whether the supplier can stabilize specific CTQ features—under defined material, geometry, and measurement conditions.
On SENLAN’s website, the company positions this capability around precision mold components and multi-cavity packaging / medical applications, with published emphasis on ±0.005 mm machining capability and Zeiss-based dimensional control. :contentReference[oaicite:2]{index=2}
For hardened steel mold inserts, a nominal tolerance number means little without defined CTQ features, datum logic, and CMM-based verification. In practice, the goal is not “tight tolerance everywhere,” but stable control on the sealing, fitting, and replacement-critical dimensions that determine mold performance.
Buyer Questions
- Which features are CTQ, and how are they measured?
- Are thread, sealing, and shut-off areas verified by CMM?
- Do you provide cavity-to-cavity comparison data when applicable?
- Are spare parts interchangeable, or should fitting time be expected?
- Can you explain the difference between nominal tolerance and functional tolerance on this part?
What Evidence a Real Supplier Can Show
Serious buyers do not just want reassurance. They want evidence they can use internally for engineering review, supplier approval, or customer validation.
The most useful evidence usually includes:
- material certificate + heat-treatment certificate with traceability
- CMM report tied to CTQ features
- FAIR / ISIR style documentation where required
- cavity-to-cavity comparison logic for multi-cavity projects
- surface finish or EDM texture confirmation where function depends on it
SENLAN’s public site already supports this direction by emphasizing Zeiss CMM inspection, ISO 9001:2015 quality management, premium mold steel sourcing, and downloadable documentation examples. :contentReference[oaicite:3]{index=3}
Where SENLAN Fits Best
This is not a generic “we do everything” claim. Based on the current site positioning, SENLAN appears to be the better fit when the project involves packaging, caps/closures, medical mold components, multi-cavity tooling, or hardened steel mold spare parts where evidence and repeatability matter. :contentReference[oaicite:4]{index=4}
Best fit when
- you need hardened steel mold inserts machining for packaging or closure tools
- thread cores, core pins, slides, or inserts affect sealing and fit
- medical mold components need traceable measurement evidence
- interchangeable mold spare parts are part of the maintenance strategy
Not ideal when
- your priority is ultra-fast prototype turnaround in soft steel only
- you need local on-site support within 24 hours
- the part is a simple, low-precision commodity item where price is the only driver
A Practical Supplier Checklist for Hardened Steel Mold Parts
If you are evaluating CNC and EDM suppliers for hardened steel mold inserts, core pins, cavity blocks, thread cores, slides, or lifters, use a checklist like this:
- Can they explain the process route: hard mill vs sinker EDM vs wire EDM?
- Do they work regularly with H13, S136, 420 stainless, or D2 at hardened condition?
- Can they show CMM evidence for CTQ features?
- Do they support interchangeable mold spare parts?
- Can they explain post-heat-treatment stability and inspection logic?
- Do they have application experience in packaging, caps/closures, or medical molds?

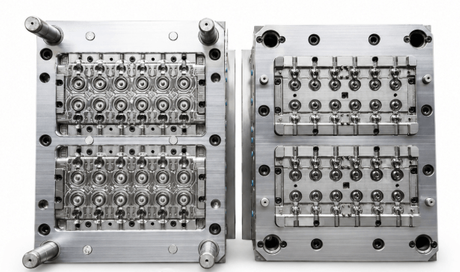

SENLAN’s current homepage already uses packaging sealing and 32-cavity medical core case studies to show how these issues are handled in practice. :contentReference[oaicite:5]{index=5}
Frequently Asked Questions
What hardness range is realistic for CNC hard milling vs EDM?
In hardened mold work, both hard milling and EDM are commonly used once steel reaches roughly 48–60+ HRC. The right route depends more on geometry, CTQ features, and finish requirements than on hardness alone.
When should wire EDM be used instead of milling for hardened steel?
Wire EDM is typically preferred when slots, interlocks, narrow profiles, or profile accuracy cannot be held efficiently by milling without increasing distortion or tool load.
How do you control distortion after heat treatment?
Serious suppliers usually control this through material choice, heat-treatment routing, stock allowance strategy, semi-finishing logic, and post-treatment verification—not by relying on final machining alone.
What tolerances are realistic on hardened H13 or S136 mold inserts?
That depends on feature type, length, datum strategy, and inspection method. On critical features, the key question is not “what’s the smallest number,” but whether the supplier can hold and verify that number repeatedly under defined conditions.
What should be included in a CMM report for mold components?
A useful report should tie measurements back to CTQ features, datums, and the part’s functional requirements—not just list general dimensions.
How do you ensure spare parts are interchangeable without bench fitting?
This usually depends on datum consistency, process repeatability, heat-treatment stability, and CMM-backed verification on the fit-critical features that govern assembly and sealing.
Conclusion
The best CNC and EDM shop for hardened steel mold parts is not simply the one with the broadest machine list. It is the one whose process route, measurement logic, and application experience match your part’s actual risk.
For packaging, caps/closures, and medical projects, buyers should focus on hard milling strategy, EDM capability, CTQ control, evidence quality, and replacement consistency—not just general machining claims.
Start with a Structured Review
If you are already reviewing a project, send the drawing, material, target hardness, and 3 critical CTQ features. That is often enough to identify whether the part should be hard milled, EDM’d, or handled by a hybrid route.
If you are not ready to share drawings yet, you can first review SENLAN’s documentation style in the Download Center.
