Custom Pipette Tip Mold Core Pins for Multi-Cavity Medical Molds

Pipette tip mold core pins are small components, but they control some of the most important risks in high-volume medical injection molding.

In a pipette tip mold, the core pin helps form the internal profile of each tip. If the pin is misaligned, worn, difficult to release from, or inconsistent from one cavity to another, the molded part may show wall-thickness variation, flash, sticking, deformation, unstable fit, or repeated cavity-specific defects.

For medical mold manufacturers and injection molding companies sourcing custom core pins from China, the key question is not only whether the supplier can machine a slender metal pin. The better question is whether the supplier can understand what the pin controls inside the mold, inspect it against functional requirements, and support replacement consistency during long-term production.

Quick Answer: Reliable custom pipette tip mold core pins require controlled concentricity, suitable surface finish, sufficient rigidity, documented inspection, and a replacement strategy that preserves cavity behavior. Process changes may reduce symptoms temporarily, but they do not correct a core pin that no longer forms or releases the part consistently.

Why Pipette Tip Core Pins Matter in Medical Molding

A pipette tip looks simple, but its function depends on consistent internal geometry, stable wall distribution, clean release, and reliable fit with the intended mating interface.

The core pin is directly related to these outcomes. It is not just a slender steel part. It is a fit-critical mold component that must work together with the cavity, shut-off areas, venting, ejection, cooling, and molding process.

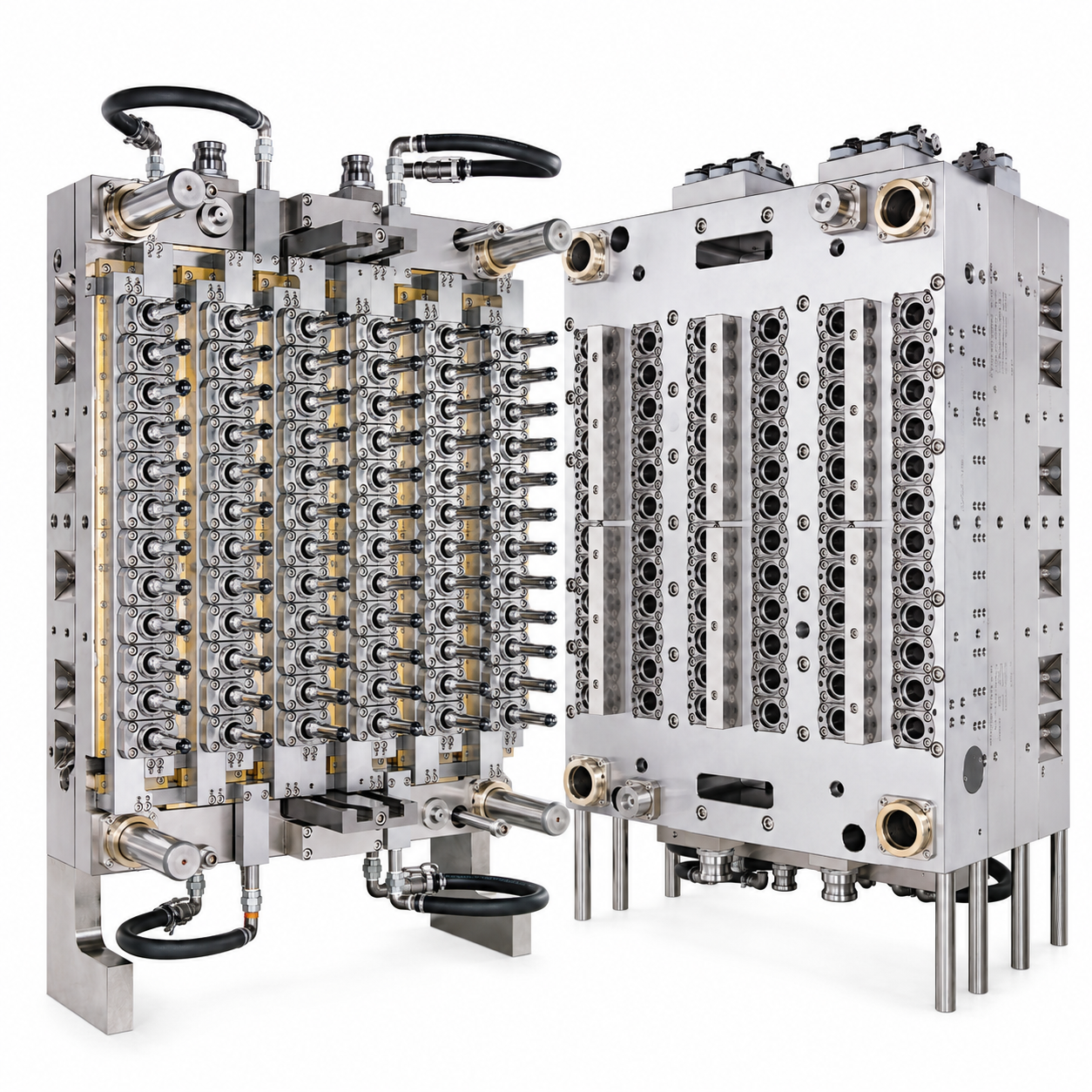

For multi-cavity medical molds, the requirement becomes more demanding because every cavity must form a tip that behaves like the others. A small pin-to-pin difference repeated across 16, 32, 64, or more cavities can become a high-volume quality problem.

For broader medical and high-cavity tooling projects, buyers should evaluate precision mold components according to the molded features they control, not only by the component name on the drawing.

Key Takeaways for Medical Mold Buyers

• Core pins directly influence internal tip geometry, wall distribution, release behavior, and assembly fit.
• In multi-cavity medical molds, small pin-to-pin differences can become repeated production variation.
• Flash or sticking near one pin should be investigated through alignment, shut-off, release, and venting conditions, not only process settings.
• Replacement core pins should be controlled by datums, inspection records, and functional requirements rather than diameter alone.
• For overseas buyers, inspection evidence and replacement consistency are as important as machining accuracy.

What Are Pipette Tip Mold Core Pins?

A pipette tip mold core pin is a precision component used to form the internal geometry of a molded pipette tip. Depending on the design, it may influence internal diameter, taper, tip bore, wall thickness, fit, release behavior, and cavity-to-cavity consistency.

In a production mold, a core pin must be reviewed as part of a complete molding system. Its performance depends on:

• pin geometry
• cavity alignment
• shut-off condition
• surface finish
• material and heat treatment
• rigidity and support
• venting near the formed feature
• inspection method
• replacement-part control

If the core pin moves out of tolerance or releases poorly, the molded pipette tip can change with it.

Common Problems Caused by Unstable Pipette Tip Core Pins

Core pin quality should be evaluated through the molded product risks it controls. The exact critical-to-quality dimensions depend on the pipette tip design, resin, mold structure, and validation requirements, but the engineering questions are consistent.

The core pin must therefore be reviewed as part of a system: pin geometry, cavity alignment, release condition, process window, and measurement method all affect final production performance.

Why Core Pin Concentricity Matters in Multi-Cavity Medical Molds

In a thin molded medical consumable, internal geometry and outside geometry must remain correctly related. If a core pin is offset, bent, poorly supported, or different from adjacent cavities, the resulting tip may show uneven wall distribution or variation in a fit-critical area.

For a single-cavity prototype, an isolated dimensional issue may be corrected during development. For a multi-cavity medical mold, differences between core pins can create a repeating pattern: certain cavity numbers fail inspection more often, release differently, show more visible defects, or create unstable fit.

This is why inspection should not stop at a nominal pin diameter. Depending on the drawing and function, buyers may need to define:

• diameter and tapered-profile requirements
• concentricity, runout, or datum relationship requirements
• critical length and transition features
• surface finish in release-sensitive areas
• cavity identification for repeated pins
• inspection records for original and replacement pins

For high-cavity tools, fitting accuracy and cavity-to-cavity consistency are part of production performance, not just inspection paperwork.

Flash, Sticking and Wall Thickness Variation: Tooling Causes

Flash is often treated as excess material that can be removed later. In medical molding, that approach can hide a more important question: why did the polymer escape into that gap?

Flash can form at a parting line, around an insert interface, near vents, or in other small gaps where molten material enters under pressure. If the defect appears repeatedly in one cavity or near one pin location, the investigation should begin with local tooling conditions rather than repeated changes to an otherwise stable process.

Relevant checks include:

• core pin fit and support
• cavity-to-pin alignment
• damage, wear, or residue at sealing surfaces
• venting condition close to the affected feature
• injection and holding pressure relative to mold condition
• whether the defect appeared after maintenance or component replacement

Manual trimming may make a small batch usable, but it does not prove that the mold is stable. In a medical molding program, recurring flash should be treated as information about tooling or process control.

Release Performance Depends on Surface Condition and Pin Design

A core pin that forms the correct geometry still has to release the molded part reliably. Thin medical parts can grip tightly as they cool, and high-cavity production leaves little room for repeated sticking, tearing, or manual intervention.

When pipette tips drag or stick during ejection, teams should review whether the issue is driven by product design, processing conditions, surface state, pin geometry, or alignment.

Typical engineering questions include:

• Is the specified draft or taper adequate for release?
• Is the release surface polished or finished appropriately for the resin and function?
• Has wear changed the local surface or dimension?
• Is the part being pulled unevenly during ejection?
• Are the affected cavities linked to particular pins or inserts?

Improving release is not simply a matter of making a surface smoother. Surface finish must remain compatible with dimensional requirements, forming performance, and the intended maintenance plan.

Machining and Inspection Requirements for Medical Mold Core Pins

The right manufacturing route depends on core pin geometry, steel grade, hardness, finish, and inspection requirements. Slender or detail-critical components require a process plan that controls both shape and functional relationships.

Core pin manufacturing and review may include:

• CNC turning or milling for established geometry and reference datums
• Precision grinding for diameter, finish, roundness, or fit-related features
• EDM or Wire EDM for hardened conductive steel or difficult precision features
• Dimensional inspection against controlled drawings
• Comparison of repeated pins for multi-cavity consistency
• Identification and inspection planning for replacement components

For buyers, the machine name alone is not enough. The selected process must reliably produce and verify the features that influence the molded part. Buyers evaluating medical injection tooling can also review SENLAN’s plastic injection molding tooling support when considering the complete mold system.

Engineering Evidence Buyers Should Check Before Ordering Core Pins

For overseas buyers, engineering evidence is more useful than verbal claims. Before ordering custom pipette tip mold core pins, buyers should confirm how the supplier controls machining, inspection, and replacement consistency.

SENLAN’s precision machining and ZEISS CMM inspection capabilities help support measurable control for fit-critical medical mold components.

Replacement Core Pins for Pipette Tip Mold Maintenance

A medical mold may remain in service for long production periods, and wear-critical components may eventually require replacement. A spare pin is only useful when it can restore production without introducing new variation.

For this reason, replacement planning should begin before a pin fails. A practical control package may include:

• revision-controlled 2D drawing and 3D model
• defined CTQ dimensions and datums
• material and heat-treatment requirements
• surface finish requirements for release-related regions
• inspection method and report expectations
• cavity or position identification where applicable
• acceptance logic for first samples after replacement

This approach supports change control. It does not replace the mold owner’s validation responsibilities, but it provides clearer evidence for evaluating whether a replaced core pin has preserved the intended tool behavior.

What to Include in an RFQ for Custom Pipette Tip Core Pins

A request that says only “quote core pins” leaves major technical decisions unclear. For a meaningful quotation and manufacturability review, buyers should include information that connects the component to the molded-part requirement.

• 3D model and dimensioned 2D drawing
• part application and resin information where relevant
• mold cavity count and position-specific requirements
• critical fit, bore, taper, or wall-related dimensions controlled by the pin
• specified tolerance, surface finish, material and hardness
• observed issue if replacing an existing pin: flash, sticking, bending, wear or dimensional drift
• whether replacement parts must be interchangeable without manual fitting
• required dimensional report or traceability information

A precise RFQ lets the supplier discuss the machining and inspection route in terms of product risk, rather than providing a generic price for a part that may not solve the production problem.

Sourcing Pipette Tip Mold Core Pins from China

For medical mold manufacturers and injection molding companies in Europe, North America, South America, Southeast Asia and the Middle East, sourcing replacement pipette tip mold core pins from China requires more than comparing unit prices.

Buyers need to verify drawing control, concentricity and runout inspection, cavity identification, surface finish requirements, and whether a replacement pin can maintain stable cavity behavior after installation.

For international buyers, the useful purchasing question is not simply where a component is made. It is whether the manufacturer can understand the molding function, follow controlled drawings, supply inspection evidence, and support consistent replacement components.

Regional Buyer Focus for Pipette Tip Mold Core Pins

For European Medical Mold Buyers

European buyers often focus on controlled drawings, dimensional reports, CTQ features, material traceability, inspection evidence and replacement consistency. For pipette tip core pins, concentricity, surface finish and cavity identification should be reviewed before ordering replacement parts.

For North American Medical Injection Molders

North American molders usually care about uptime, repeatable spare parts, cavity-to-cavity consistency and validation support. A replacement core pin should restore the intended cavity behavior without unexpected bench fitting or repeated sample correction.

For Southeast Asian High-Cavity Medical Molding Operations

Southeast Asian molding operations often run high-cavity medical consumable molds for long production campaigns. Pin-to-pin consistency, wear control, release performance and replacement planning are important for reducing downtime and cavity-specific defects.

For South American and Middle East Medical Consumable Projects

Buyers in South America and the Middle East may need reliable replacement mold components for existing medical molds, especially when local repair capacity is limited. Controlled drawings, inspection reports and clear RFQ data help reduce risk when sourcing precision core pins internationally.

For more industry context, buyers can review SENLAN’s application support for medical, cap, cosmetic and packaging products.

How SENLAN Supports Medical Mold Component Projects

SENLAN manufactures custom precision mold components for multi-cavity medical molds, pipette tip molds, and other demanding injection molding applications.

Our component support may include:

• pipette tip mold core pins
• medical mold core pins
• cavity inserts
• mold cores
• sleeves
• sliders and lifters
• replacement precision mold components

For critical features, the correct technical conversation begins with the failure risk:

• Which internal geometry does the pin control?
• What variation is unacceptable?
• How should the pin be inspected?
• Which cavities show repeated problems?
• What must happen when the pin is replaced during production?

If you are comparing suppliers or reviewing future tooling risks, you can also read SENLAN’s engineering articles on injection molding and precision mold components.

Frequently Asked Questions

What does a core pin control in a pipette tip mold?

A core pin helps form the internal geometry of the pipette tip. Its alignment, diameter, profile and surface condition can influence wall distribution, tip fit, release behavior and repeatability between cavities.

Can a worn core pin cause flash in a medical molded part?

Yes. Flash may occur when material enters a gap created by wear, damage, misalignment, fit problems or local tool conditions near a pin or insert interface. The cause should be investigated before relying on trimming or process changes.

Why is concentricity important for pipette tip mold core pins?

Concentricity helps preserve the intended relationship between internal and external tip geometry. In a multi-cavity mold, inconsistent concentricity can contribute to wall-thickness variation and uneven performance across cavities.

Should replacement core pins be inspected individually?

Replacement pins should be verified against the drawing and the features that affect product function. For multi-cavity or medical projects, inspection records and identification of replacement components improve maintenance and change-control decisions.

What should I send to request pipette tip mold core pins?

Provide the 3D model, 2D drawing, material and hardness requirements, surface finish, cavity count, critical dimensions, inspection requirements and any evidence of current production problems such as flash, sticking or dimensional drift.

Can replacement core pins be made interchangeable without manual fitting?

Interchangeability should be designed and verified, not assumed. It depends on controlled datums, fit relationships, tolerances, surface requirements, inspection records and the condition of the mating mold components.

Send Us Your Pipette Tip Mold Core Pin Drawings for Technical Review

If you are replacing unstable pipette tip mold core pins or developing a new multi-cavity medical mold, prepare your 2D drawings, 3D files, cavity count, CTQ dimensions, material requirements, surface finish requirements, inspection expectations and defect photos.

SENLAN can review the machining route, inspection requirements and replacement consistency before quotation.
