Custom Precision Cavity Inserts for Packaging Molds
S136 mirror-finish cavity inserts for high-speed beverage and cosmetic packaging
Maximize production uptime with SENLAN’s custom precision cavity inserts. Built for high-cycle packaging molds, these inserts deliver the micron-level accuracy required for stable shut-off, reliable seating, and clean molded surfaces. As a direct source manufacturer, SENLAN combines tight tolerance control with competitive factory pricing.
What These Inserts Are Designed To Improve
In packaging molds, precision cavity inserts affect more than part geometry. They influence shut-off stability, seating depth consistency, release behavior, molded surface quality, and the repeatability of future replacement inserts.
For related insert, core, and tooling solutions, see our mold components range.
Why Buyers Choose SENLAN
Micro-Tolerance Control

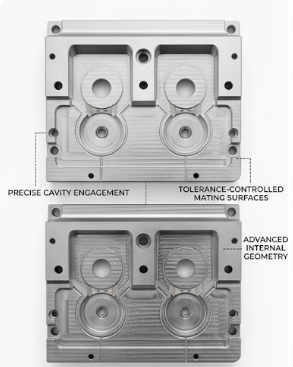

Critical fit diameters and seating depths can be controlled to ±0.005 mm, depending on geometry and inspection requirements. This helps support stable shut-off and more predictable replacement fitting.
Mirror-Finish Surface Integrity

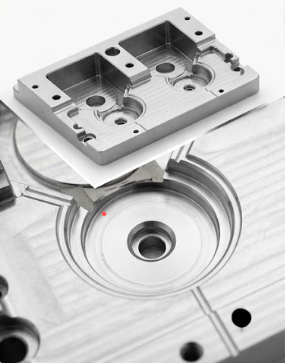

Using SODICK Mirror EDM and precision finishing, cavity surfaces can be produced down to Ra 0.1 where required. This is especially useful for appearance-sensitive caps and cosmetic closures.
Multi-Material Compatibility
Different packaging molds run under different resin, wear, and corrosion conditions. SENLAN supports cavity inserts in S136 ESR, 1.2083, H13, and other application-matched steels rather than forcing one material route on every project.
Factory-Direct Pricing
SENLAN works as a direct manufacturer, not a trading layer. That helps reduce markup, shorten communication flow, and improve total cost of ownership for mold makers and packaging producers.
Technical Capability for Precision Cavity Inserts
| Feature | Specification / Capability |
|---|---|
| Product Type | Custom precision cavity inserts for high-volume injection molds |
| Processing | High-Speed CNC, Mirror EDM, Precision Grinding |
| Tolerance | Up to ±0.005 mm on critical fit diameters and seating depths |
| Steel Grade | S136 ESR, 1.2083, H13 |
| Heat Treatment | Vacuum hardening available depending on steel and application |
| Surface Finish | Ra 0.1 – Ra 0.4, mirror polished or technical finish |
| Quality Control | 100% CMM inspection; dimensional reports available on request |
| Compatibility | Can be built to suit DME, HASCO, Husky, and custom mold structures |
Final steel, hardness, finish, and inspection scope are confirmed according to molded part requirements, resin condition, cavity count, and expected mold life.
Typical Applications
Beverage Closures
Suitable for high-output beverage cap molds where sealing reliability, stable cavity finish, and repeatable geometry matter.
Cosmetic Packaging
Well suited for appearance-sensitive cap molds where polished cavity surfaces and stable release behavior affect the final product.
High-Cycle Packaging Tools
A strong fit for molds that run continuously and need cavity inserts with both precision and long-term stability.
Process and Inspection Support
Buyers who need more detail on machining equipment, EDM capability, grinding, and inspection workflow can review our technical advantages.
Frequently Asked Questions
How does SENLAN ensure consistency across a cavity insert set?

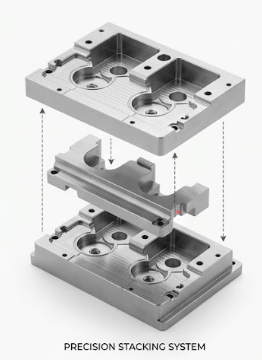

We use a unified datum strategy through machining and inspection so each insert is produced from the same reference logic. This helps keep the full insert set more consistent and supports faster replacement.
What is the pricing advantage of sourcing directly from SENLAN?
As a direct factory manufacturer, SENLAN keeps machining, process control, and inspection in one workflow. That helps buyers control cost while still getting high-precision mold components.
What steel is best for cosmetic or beverage packaging inserts?
It depends on resin, corrosion risk, surface-finish target, and mold-life requirements. In many packaging applications, S136 ESR is preferred for its polishability and corrosion resistance, while H13 may be chosen where wear and thermal load are more important.
Can dimensional reports be provided?
Yes. CMM-based dimensional reports can be provided on request for critical dimensions and fit-sensitive features.
Can replacement inserts be produced later?
Yes. SENLAN supports repeat manufacturing based on approved master geometry and controlled reference logic, helping reduce fitting work during maintenance replacement.
RFQ Information
To review your cavity insert project efficiently, please send:
- 2D drawing or 3D file
- Cavity layout
- Target material or hardness
- Resin information, if available
- Expected mold life
- Dimensional report requirement, if any
NDA is available before drawing submission.
