Capability to Review | Typical Parts or Features | Common Risk if Weak | What Buyers Should Ask For |
|---|---|---|---|
Precision CNC turning | Core pins, neck rings, thread inserts, cylindrical cores | Diameter variation, poor concentricity, inconsistent assembly fit | First article report, in-process inspection frequency, concentricity, or runout measurement method |
Precision CNC milling | Inserts, cavity details, shut-off areas, small slots, fitting surfaces | Mismatch during assembly, profile deviation, unstable cavity-to-cavity consistency | Surface roughness target, key measurement points, profile, or fitting surface inspection method |
EDM and wire EDM capability | Deep ribs, narrow slots, sharp corners, hardened steel details | Overcut, undercut, unstable sealing edges, late-stage rework | Compensation method, post-EDM reinspection flow, and critical feature verification records |
Grinding and final finishing | Round parts, sealing surfaces, fitting faces, precision steps | Poor roundness, unstable mating surfaces, and excessive bench fitting | Roundness/cylindricity report, flatness report, final size control plan |
Process inspection and final inspection | All CTQ features across the part route | Problems found too late, inconsistent outgoing quality, and weak traceability | CMM report sample, outgoing inspection report format, CTQ control plan, quality system records |
A supplier may quote fast and low, yet still create a higher total cost if the parts require repeated fitting, extra mold correction, or trial delays after delivery.
This is especially true in projects where cavity-to-cavity consistency matters, such as multi-cavity closure molds, precision packaging molds, and mold components used in medical consumables applications. In these projects, one “acceptable” single part is not enough. What matters is whether the supplier can repeat the same geometry, fit, and surface condition across multiple parts and multiple batches.
Below are the five capabilities worth checking first.
For many mold projects, the first problems do not come from large surfaces. They come from cylindrical parts such as core pins, neck rings, thread inserts, and shaft-type mold components.
If outside diameters, concentricity, or locating features drift from part to part, the result is usually inconsistent fit during assembly, uneven gaps, or unstable performance across cavities.
A batch of core pins looks acceptable individually, but once assembled, the fit is inconsistent from cavity to cavity.
Diameter repeatability is not stable enough, concentricity is not well controlled, or there is no effective in-process recheck.
Look at the supplier’s repeatability on turning, how concentricity is measured, and how often critical dimensions are checked during production.
Ask for a first article inspection report, a sample in-process inspection plan, and the measurement method for concentricity or runout on similar parts.
For high-precision mold components, turning capability is not just about making a round part. It is about making the same round part repeatedly, so assembly time stays predictable and multi-cavity consistency is easier to maintain.
A supplier may say they have CNC milling, but that alone does not tell you much. In mold manufacturing, the real challenge is usually in complex profiles, shut-off areas, narrow slots, fitting surfaces, and local geometries that later affect mold assembly.
This is where many dimensional issues stay hidden until the mold is assembled or the first trial starts.
The insert is machined according to the drawing, but after assembly, the fitting surface needs correction, and the cavity behavior is not consistent.
Local geometry drift, unstable profile control, or weak verification on critical fitting areas before the next process step.
Check whether the supplier defines CTQ features clearly, how profile accuracy is controlled, and whether key fitting surfaces are measured before release to the next operation.
Ask for a roughness target range, a measurement-point layout for critical surfaces, and a sample inspection record for fitting features.
In multi-cavity mold components, small milling deviations can become a large consistency issue later. Good milling capability is not only about shape creation. It is about controlling the specific surfaces that influence assembly, sealing, and repeatability.
Deep ribs, narrow slots, sharp corners, and hardened steel details are often where mold components become difficult to control. These are also the areas where a supplier’s process maturity becomes obvious.
If these features are handled with weak EDM or wire EDM process control, the result may not be visible immediately. The risk often shows up later as sealing issues, poor detail quality, unstable thread engagement, or repeated adjustment after trial.
The geometry looks complete, but the mold later shows flash risk, edge inconsistency, or unstable function in narrow or hard-to-reach areas.
Poor compensation strategy, weak control after EDM, or missing reinspection on critical features after discharge machining.
Ask how the supplier verifies critical EDM features, what happens after EDM or wire cutting, and whether there is a defined reinspection flow before the part moves forward.
Ask for the supplier’s post-EDM verification method, a sample reinspection record, and the criteria used to release these features to the next process.
For custom tooling solutions with hardened steel, deep details, or narrow sealing areas, EDM capability is not just a machine list item. It is a risk-control capability.
Turning, milling, and EDM create geometry, but grinding and final finishing often decide whether the part actually fits and runs as intended.
This is especially important for roundness, cylindricity, flatness, sealing faces, and mating surfaces, where even a small variation can create fitting work or instability across cavities.
The main dimensions are within tolerance, but the assembly still feels inconsistent, and some parts require extra benchwork.
Final geometry correction is not strong enough, or the supplier is controlling nominal size without adequately controlling roundness, flatness, or mating-surface stability.
Look at the finishing route, what final geometric characteristics are checked, and whether critical mating surfaces are verified separately from general dimensions.
Ask for roundness or cylindricity reports, flatness data for fitting surfaces, and the supplier’s final size control plan before shipment.
A capable supplier knows that the last stage is not just “polishing” or “finishing.” It is where assembly consistency is protected.
A final inspection report is useful, but it is not enough on its own. If key issues are only found at the packing stage, the supplier has already lost time, increased cost, and reduced process confidence.
For high-precision mold components, especially in multi-cavity applications, inspection has to run through the process, not only after it.
The outgoing report looks complete, but recurring variation still appears from batch to batch.
CTQ features were not controlled at the right stages, in-process inspections were too limited, or the outgoing report did not reflect the real process risk points.
Check how CTQ features are defined, where inspection gates are placed, what is checked 100%, what is checked by sampling, and what records are retained for traceability.
Ask for a sample CMM report, a sample outgoing inspection report, the CTQ list for a similar part, and the inspection frequency by process stage.
This is often the point that separates a machine shop from a true high-precision mold component supplier. The best suppliers do not simply measure parts. They built a process that prevents unstable parts from moving forward.
When you review a supplier for high-precision mold components, multi-cavity mold components, or other custom mold manufacturing work, a serious supplier should be able to provide evidence, not just promises.
A practical supplier review package may include:
First article inspection report

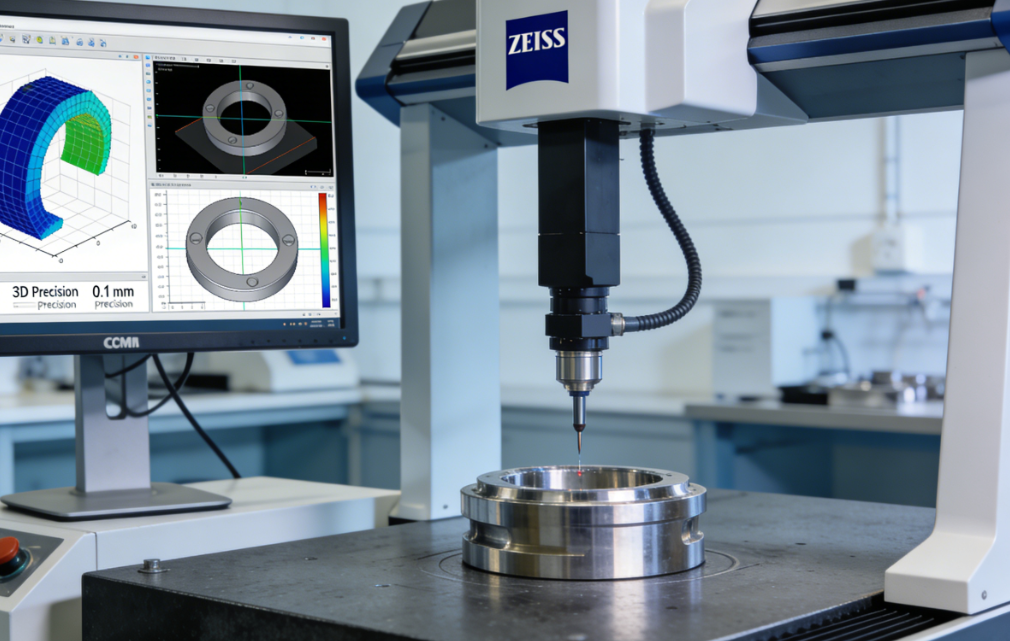

CMM report sample
Roundness or cylindricity report
In-process inspection plan for CTQ features
Outgoing inspection report sample
Quality system documentation
Suggested CTQ points based on your drawing
Manufacturability risk feedback before production starts
That kind of response shows the supplier understands not only how to machine parts, but how to support project risk control.
Choosing a high-precision injection mold manufacturer is not really about choosing the cheapest quote or the biggest workshop.
It is about choosing a supplier that can keep critical features stable across turning, milling, EDM, grinding, and inspection, then prove that control with clear records.
If your project involves custom mold components, multi-cavity tooling, or other precision mold parts where interchangeability and assembly stability matter, the right question is not just “What machines do you have?”
The right question is:
What do you measure, when do you measure it, and what evidence can you send me before I place the order?
If you are evaluating suppliers for a new mold component project, you can ask for a review pack before the quoting comparison begins.
A practical review pack may include:
Sample CMM report
Sample roundness report
Sample first article inspection report
Suggested CTQ points based on your drawing
Preliminary manufacturability risk notes
Recommended inspection plan for critical features
That gives your engineering and purchasing team something much more useful than a generic capability statement.
