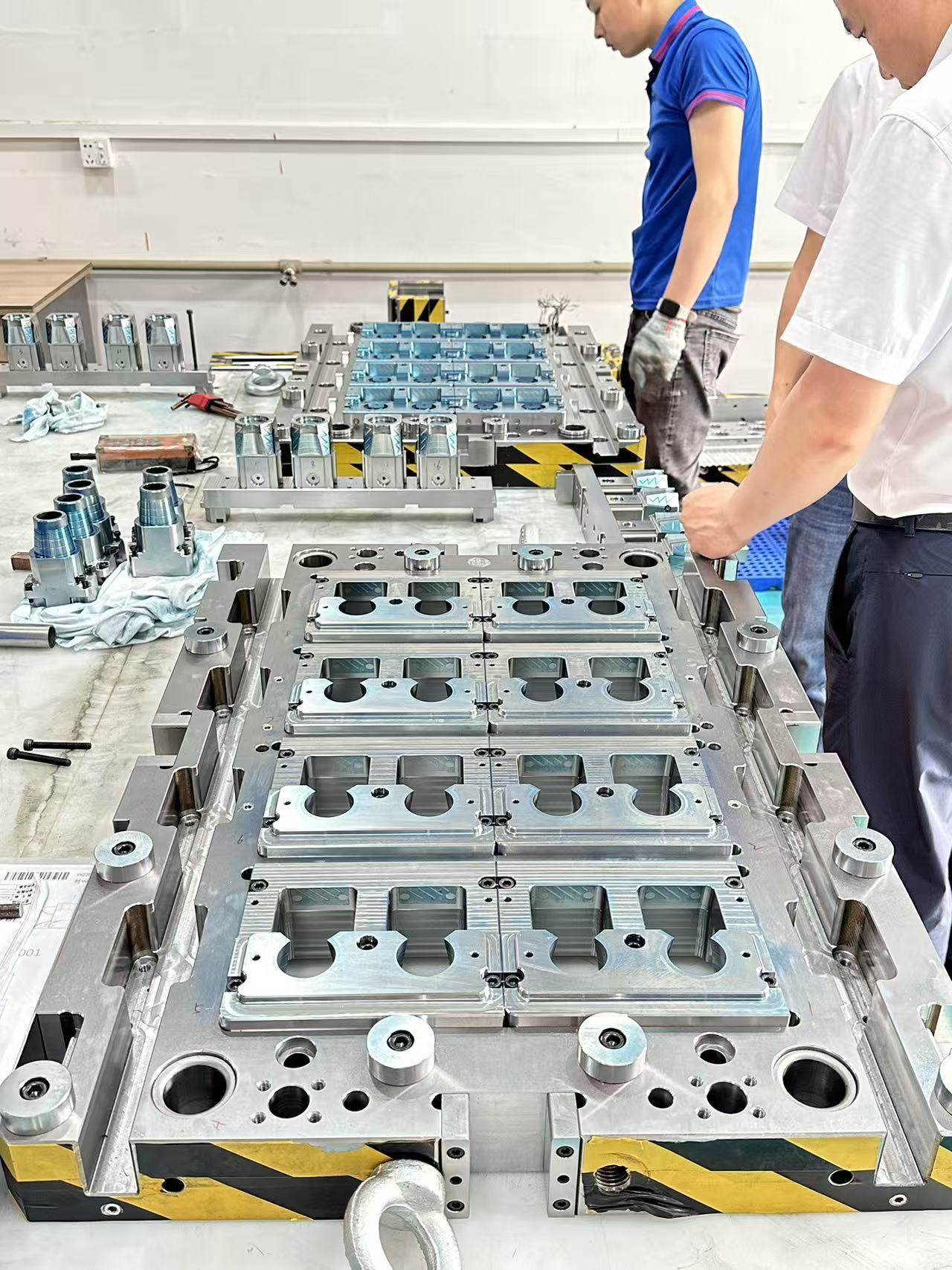

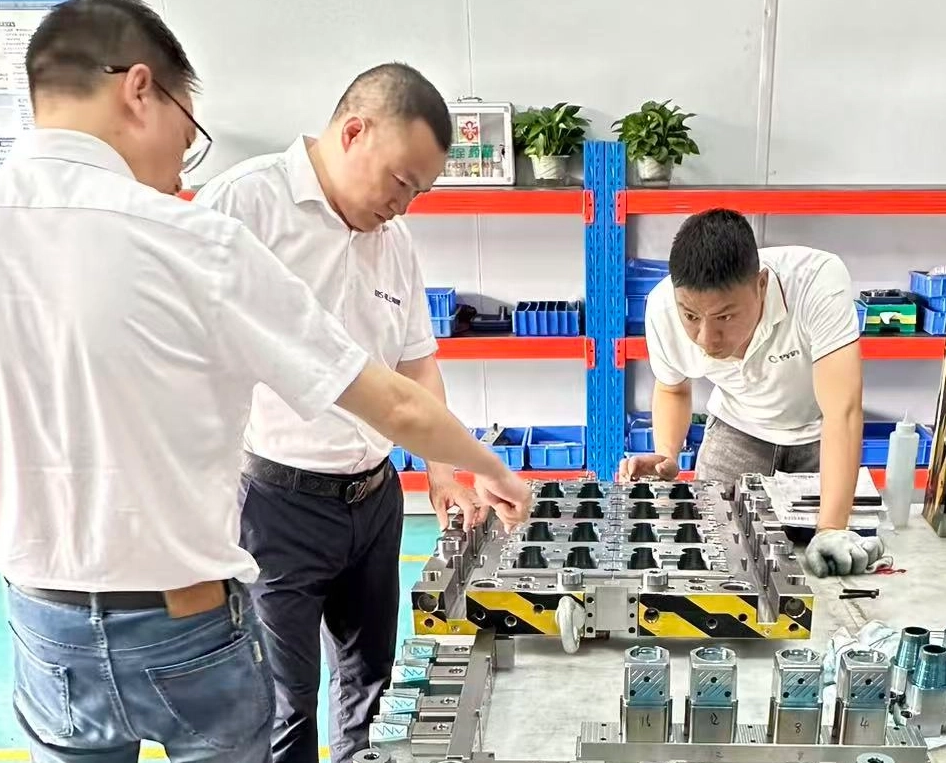

How We Stabilize Precision Mold Components for Multi-Cavity Molds

When customers ask about equipment, they are rarely asking for machine brands alone. What they really want to know is this:

Can you keep critical mold components stable enough to reduce bench fitting, prevent rework, and support consistent production — especially in multi-cavity molds?

In multi-cavity tooling, the real risk is not simply whether a part can be machined. The real risk shows up later:

• Lead time gets consumed by rework and repeated adjustments

• One cavity runs differently and affects the whole tool

• A small drift in shutoff or sealing areas turns into flash or leakage

• Parts measure “OK” individually, but do not fit consistently during assembly

At SENLAN, we treat equipment as part of a control system. The goal is practical: mold components that fit with less adjustment, run more consistently across cavities, and stay stable from batch to batch.

1. Dimensional Stability: Controlling Drift Before It Becomes Fitting Work

For multi-cavity molds, stability has to be controlled at three levels:

• part-to-part repeatability

• cavity-to-cavity consistency

• batch-to-batch stability

We select machining routes based on the CTQ type, such as shutoff, sealing, thread, or fitting features, as well as material condition and feature accessibility. This helps prevent common instability drivers, including:

• tool deflection on long-reach or micro features

• uneven stock allowance before finishing

• thermal drift caused by aggressive cutting or unstable process routes

• variation that only appears when parts are assembled into a full mold

For complex surfaces and precision fitting areas, we use Röders CNC milling to support profile accuracy and surface consistency. For small features, narrow slots, and precision pre-finishing, Jingdiao CNC milling helps control localized geometry where even small deviations can later cause assembly mismatch. For shaft-type components such as core pins, neck rings, and thread inserts, Hardinge CNC turning with hydrostatic bearings supports stable diameter control and concentricity for repeat builds.

For defined CTQ features, our tolerance capability can reach up to ±0.005 mm, depending on geometry, material, and the validated process route and inspection plan. We apply tight control where it matters functionally, not by forcing the same tolerance level on every dimension.

2. Fit, Shutoff, and Sealing: Making “On-Drawing” Parts Work in Real Molds

Many components measure correctly on paper, but still create assembly or production issues. In packaging closures and medical molds, small changes in fit-related areas can affect:

• shutoff contact and flash risk

• sealing lands and contact pressure

• thread engagement and assembly consistency

That is why we plan processes around functional surfaces, not just part shape.

Where turning stability directly affects fit and repeatability, Hardinge CNC turning helps reduce variation in critical diameters and concentricity-related features. Where conventional cutting cannot reliably control deep, narrow, sharp-corner, or hardened details, Makino EDM is used to stabilize geometry and reduce failure modes such as:

• local overcut or undercut in shutoff details

• uneven thread engagement

• unstable sealing contact that only appears during trial runs

The result for customers is straightforward: less bench fitting during mold build and fewer adjustments after installation.

3. Surface Finish: Reducing Polishing Load and Protecting Functional Geometry

Surface finish is not only cosmetic. It affects polishing time, texture readiness, part release, and whether functional surfaces change during finishing.

We use high-precision milling and EDM strategies to maintain consistent surface conditions before polishing or texturing. For contour- and straightness-sensitive profiles such as inserts, sliders, lifters, and forming inserts, Sodick wire EDM supports clean contours and stable verticality, reducing the need for later correction.

Where required by the application, we can support fine finishing down to Ra 0.1 μm in critical areas, depending on geometry, material, and process route. This helps avoid:

• excessive polishing work

• inconsistent texture preparation

• visible machining marks on high-gloss surfaces

• fit changes caused by over-correction during finishing

4. Hardened Materials and Deep Features: Choosing the Right Process to Avoid Risk

Deep ribs, narrow slots, sharp corners, and hardened steels are common in modern mold design — and they are also common sources of machining instability.

If the process route is wrong, the result is usually:

• deflection and size scatter

• heat distortion and drift

• poor verticality or profile inconsistency

• geometry changes after heat treatment

To control these risks, SENLAN combines milling, Makino EDM, Sodick wire EDM, and grinding methods based on feature type. For step structures and mating faces, step grinding supports flatness and step consistency to stabilize assembly alignment, especially on fit-related surfaces.

5. Inspection and Traceability: Inspection as Process Control, Not Just a Final Gate

Precision machining is not complete without reliable verification. At SENLAN, inspection supports the process — it is not only used to judge the final result.

Depending on the part type and CTQs, we apply:

• Zeiss CMM for critical dimensions, positional accuracy, profiles, and fit-related geometry

• Accretech roundness measurement for roundness, cylindricity, concentricity, and runout on cylindrical components

• Mitutoyo tool microscope for micro-features, small contours, and fine detail verification

• TESA digital height gauge for height-related dimensions, steps, and datum surfaces

Typical inspection points may include:

• after semi-finishing

• after EDM or wire EDM

• before final fit-related operations

• before shipment

We can also support documentation such as:

• FAI (First Article Inspection)

• CMM reports for key CTQs

• roundness or cylindricity reports

• measurement references and traceable part identification, when required

What This Means for Customers

Advanced equipment only matters if it reduces real mold risk. In practice, customers benefit from:

• fewer fitting adjustments during assembly

• better cavity-to-cavity consistency

• more stable shutoff and sealing performance

• less variation between repeat orders

• smoother mold builds and more dependable production

If you share your drawing and CTQ list, along with material, hardness, and cavity count, we can recommend a suitable process route — including milling, EDM, grinding, and an inspection plan — and provide practical feedback within 24–48 hours.
