IMC Flip-Top Cap Mold: Turning Complexity into a Controlled Engineering System

IMC Flip-Top Cap Mold for Cosmetic, Medical & Food Packaging

If you are a process engineer, mold engineer, project manager, or buyer working on packaging production— especially when transitioning from external closing systems or scaling to 16 / 32 cavity molds— you are likely facing the same questions:

Can IMC eliminate an entire process step without introducing new risks? Will the mechanism remain stable across all cavities? How do you ensure long-term maintainability?

If you are currently using post-molding closing systems—or planning to scale to multi-cavity production—IMC can remove an entire production step. But only if timing, cooling, and wear components are engineered as one system.

What IMC Changes: Closing Inside the Mold

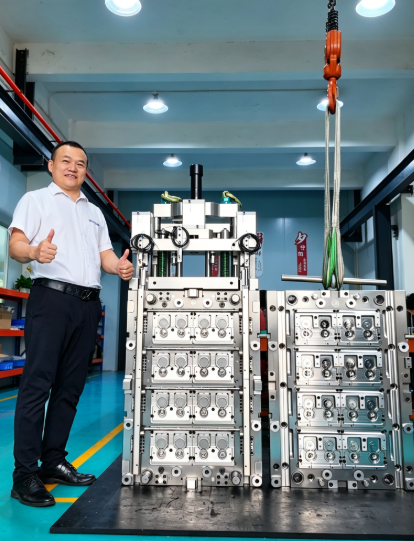

An IMC flip-top cap injection mold closes the cap directly inside the mold, immediately after injection.

This transforms your process from:

Mold → Eject → Transfer → External Closing

into:

Mold → Close → Eject (Finished Part)

Why this matters:

• Eliminates secondary operations → reduced equipment and labor
• Improves hygiene control → minimal exposure before closure
• Stabilizes cycle time → no downstream bottleneck

Where IMC Projects Typically Fail

IMC is not difficult because of molding—it is difficult because of synchronization and system integration.

• Mechanical complexity: motion systems may jam or wear
• Multi-cavity synchronization: delay leads to inconsistent closing
• Snap-fit tolerance sensitivity: deviation affects sealing
• Thermal constraints: cooling becomes difficult
• Maintenance difficulty: non-interchangeable parts increase downtime

How SENLAN Controls These Risks

Motion & Durability Engineering

Motion behavior is validated through simulation and cycle-based analysis, supported by machining capability shown in our precision equipment system.

Deliverables include motion simulation summaries, wear component mapping, and maintenance interval recommendations.

Cavity Synchronization

Timing consistency is controlled through simulation and verified using full-cavity inspection methods described in our quality control system.

Deliverables include full-cavity dimensional reports and synchronization verification.

Snap-Fit Precision Control

Critical snap-fit dimensions are defined as CTQ (Critical to Quality) and verified using CMM inspection.

Typical capability: ±0.005 mm (under defined conditions, based on datum strategy and CMM verification).

Thermal & Cooling Strategy

Cooling layout is optimized during the DFM stage to ensure balanced shrinkage and alignment across cavities.

Deliverables include thermal simulation summaries and cooling layout recommendations.

Maintenance & Interchangeability

All key components follow a 100% interchangeable design logic, aligned with our precision mold components system.

Deliverables include interchangeable spare parts lists and wear part recommendations.

What You Receive (Engineering Deliverables)

• DFM + IMC feasibility checklist
• Motion / timing simulation summary
• Cooling and thermal balance analysis
• Full-cavity CMM inspection report
• Material and heat treatment certificates
• Interchangeable spare parts list
• Trial video and process data logs

You can review similar documentation formats in our download center.

When IMC Is the Right Choice

Strong fit:

• High-volume flip-top caps requiring hygiene and repeatability
• 16 / 32 cavity scaling where external closing becomes a bottleneck

May not be necessary:

• Low-volume or frequently changing designs
• Simple closure systems without clear ROI for IMC

See Real Production Example

Watch how IMC mold assembly and component interaction work in real production:

View IMC mold assembly video Contact Us

Start with an Engineering Feasibility Review

Instead of committing directly, start with a structured IMC evaluation.

Primary:

Request IMC Feasibility (DFM Review)

Secondary:

Request Cavity Layout Recommendation (8 / 16 / 32 cavities)

To get started, you can share:

• 2D / 3D part drawing
• Target cavitation (8 / 16 / 32 / etc.)
• Resin and hygiene requirements
• Machine tonnage (if available)
• Target cycle time (optional)
