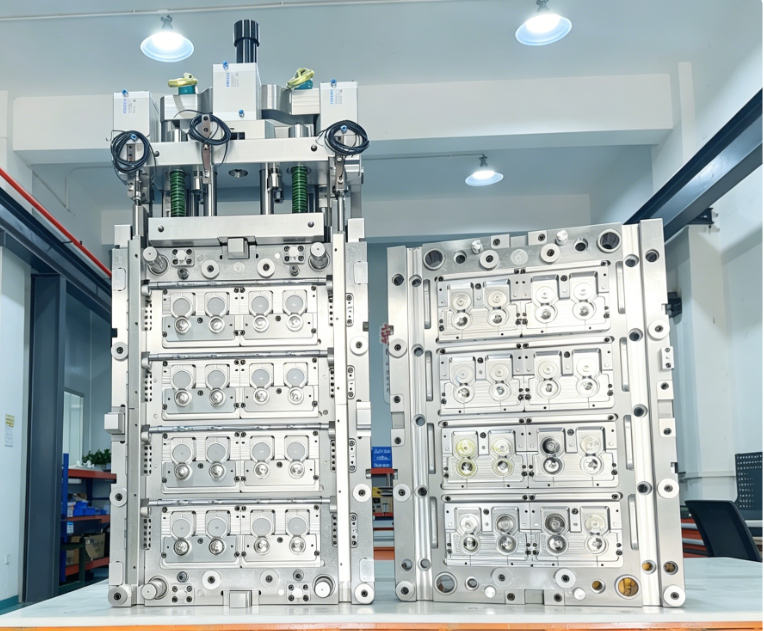

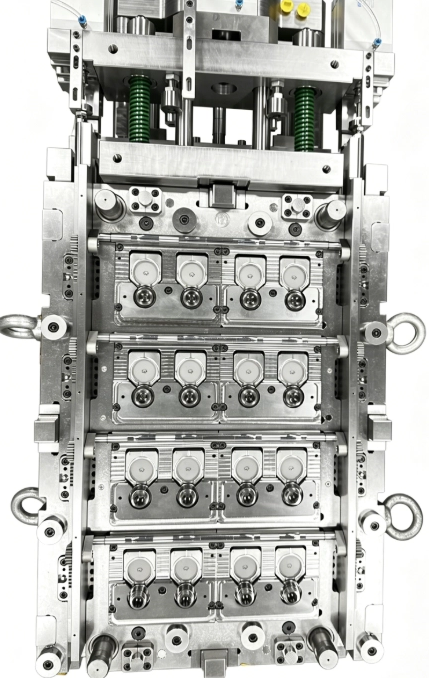

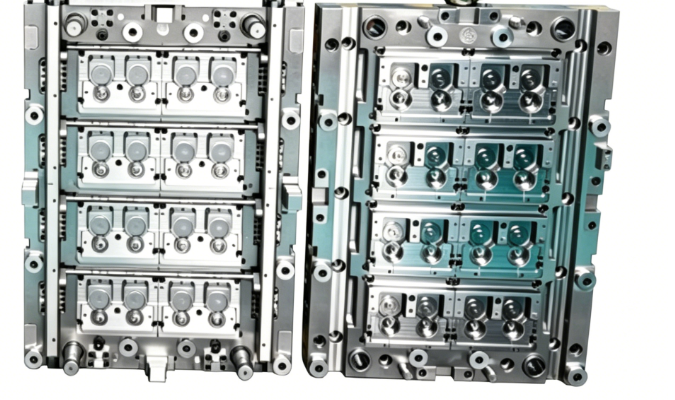

Custom Injection Molds – 16-Cavity
If you are a packaging process engineer, mold engineer, project manager, buyer, or quality/validation specialist evaluating a flip-top cap project, this page is designed for you.
This is especially relevant if you are moving from an external closing line to an IMC solution, or if you are planning to scale to 16 / 32 cavities and need to control synchronization, hinge performance, and maintenance risk from the start.
If you are currently using post-molding closing equipment, IMC can remove an entire process step. But to make that work in production, timing, cooling, and wear components must be designed as one system.
An IMC flip-top cap mold closes the cap inside the mold, immediately after molding and before ejection. This changes the process from “mold → eject → transfer → external closing” into “mold → close → eject”.
For teams developing packaging and cap tooling, this can reduce equipment count, simplify line layout, and improve hygiene control at the same time.
IMC is not difficult because of molding alone. It is difficult because the closure action, cavity timing, snap-fit tolerance, cooling layout, and maintenance strategy must all work together.
Linkages, cams, sliders, or motion elements can jam or wear if the mechanism is not engineered with stable movement and service access in mind.
In 16-cavity or higher molds, even small timing differences between cavities can affect closing consistency or damage the hinge area.
Closing features require tight dimensional control. If the fit is unstable, the cap may close too tightly, too loosely, or fail sealing requirements.
Once the IMC mechanism occupies internal space, cooling channel routing becomes more demanding. Uneven cooling can shift part geometry and affect alignment.
If wear parts are not designed for replacement consistency, one damaged cavity can lead to longer downtime and more fitting work than expected.
We approach IMC as a complete engineering system, not as an isolated mechanism. Motion behavior is reviewed together with machining, assembly, wear mapping, and maintenance access using the in-house process chain shown on our equipment page.
For snap-fit and closing areas, key dimensions are defined against datums and verified by measurement method, not only by nominal drawing value. Our broader tolerance logic is explained in this article on tolerance control in precision mold components.
Stable IMC performance depends on how well movement and fit are repeated across all cavities. That is closely related to the same repeatability principles used in multi-cavity mold component stabilization.
Wear parts and fit-critical items are developed with replacement efficiency in mind, supported by our manufacturing approach for precision mold components.
Quality claims should be measurable. Our inspection route is built around documented verification methods and dimensional control practices described in our technical advantages and QC approach.
For engineering review, internal validation, and project approval, typical deliverables can include:
You can preview the style of our inspection documentation in the download center.
Instead of deciding on structure too early, start with an IMC feasibility review based on your part, target cavitation, resin, hygiene requirement, and cycle target.
Primary action: Request an IMC feasibility / DFM review
To begin, you can prepare:
