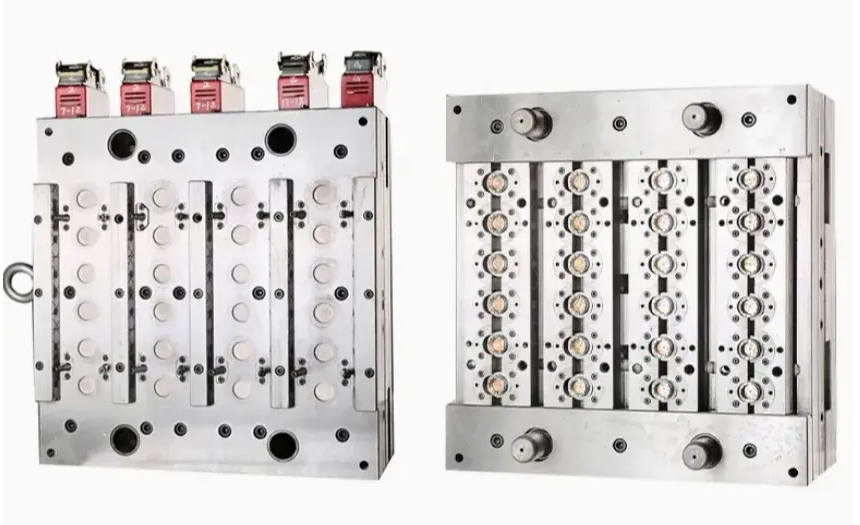

Multi-Cavity Snap-On Cap Injection Mold

Best Fit For

This mold is suitable for projects such as:

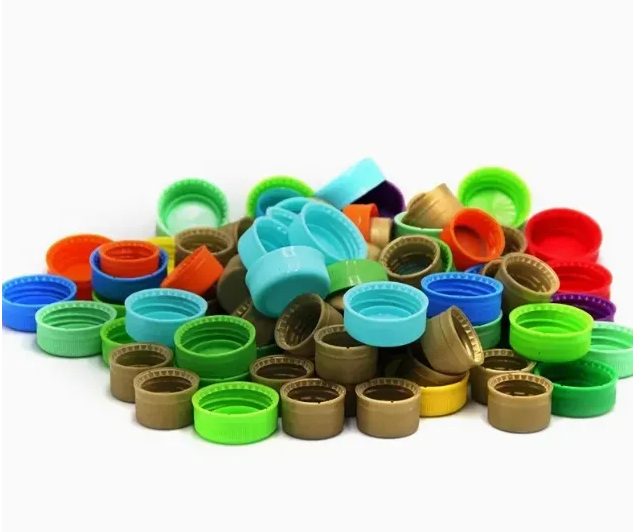

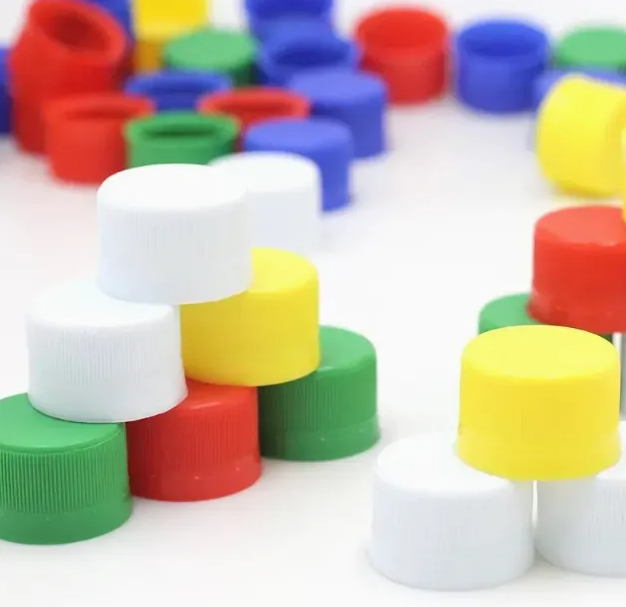

• snap-on bottle caps

• tamper-evident snap-on closures

• single-lock or double-lock snap caps

• caps with sealing plug or inner-fit features

• multi-cavity cap molds for beverage, food, and consumer packaging

It is especially suitable for projects where customers care about:

• cavity-to-cavity consistency

• stable demolding of undercut features

• reliable sealing and opening force

• lower fitting work during mold assembly

• high-volume repeat production

Recommended Cavity Options

Typical cavity configurations include:

• 8-cavity snap-on cap mold

• 16-cavity snap-on cap mold

• 24-cavity snap-on cap mold

• 32-cavity snap-on cap mold

The recommended cavity count depends on:

• cap size and wall thickness

• injection machine clamping force

• shot size

• target output

• hot runner preference

• cooling and cycle time target

For larger output programs, cavity selection should be matched to both the cap structure and the available molding machine.

Key Structural Solutions for Snap-On Caps

1. Demolding for Internal Locking Features

Snap-on caps usually include internal undercuts or locking rings. These areas require a suitable release concept to avoid deformation, stress whitening, or drag marks during ejection.

Depending on cap structure, possible demolding concepts may include:

• stripper plate release

• lifter or slider support

• ring-type undercut release

• air-assist or release ring support

• project-specific demolding concepts for sensitive snap-fit areas

The purpose is not only to eject the cap, but to protect the locking structure from cavity to cavity.

2. Snap-Fit Consistency

Stable snap-fit performance depends on the consistency of:

• lock height

• lock thickness

• inner diameter

• roundness

• concentricity

• bottle-neck matching tolerance

If these features drift between cavities, the result is often:

• uneven closing feel

• unstable opening force

• sealing variation

• bottle-cap matching issues

3. Venting and Shear Control

In PP, PE, and HDPE closures, thin locking areas are more sensitive to:

• stress whitening

• local cracking

• shear marks

• deformation in the lock zone

That is why venting, gate position, and cooling balance need to be considered together with the cap geometry.

4. Cooling Balance

Cooling is not only for cycle time. In snap-on caps, it also affects:

• shrinkage around the lock zone

• roundness and inner diameter stability

• cavity-to-cavity dimensional variation

• consistency of opening and closing feel

Materials and Risk Points

This mold is commonly designed for:

• PP (Polypropylene)

• PE (Polyethylene)

• HDPE

These materials provide the flexibility needed for snap-fit closure designs. At the same time, they can create typical risks in thin snap-fit zones:

• whitening at the locking edge

• stress cracking

• sink around thicker transitions

• warpage or local collapse

• inconsistent snap-fit force between cavities

Because of this, material behavior must be considered together with mold design, cooling, venting, and demolding.

Buyer Acceptance Criteria

For this type of snap-on cap mold, buyers usually care less about generic “high precision” claims and more about whether the mold can deliver controllable, inspectable results.

Typical CTQ Features

• lock height

• lock thickness

• inner diameter

• roundness / concentricity

• sealing surface flatness

• bottle-neck matching dimensions

Typical Inspection Methods

• CMM for critical dimensions and geometry

• roundness / concentricity measurement for cylindrical fit areas

• optical / profile inspection for small locking features

• Go / No-Go fit gauges where applicable

Typical Trial Outputs

• FAI (First Article Inspection)

• cavity-to-cavity dimensional comparison report

• sample trial review

• molding parameter window suggestion, where applicable

Capability Snapshot

Note:
Tolerance capability applies only to defined CTQ features. Final acceptance depends on the drawing, tolerance system, project validation method, and agreed inspection plan.

Custom Mold Components and Replaceable Parts

For snap-on cap molds, not all maintenance should mean replacing the full mold.
Depending on the mold design, custom mold components can be supplied separately, including:

• core inserts

• cavity inserts

• neck-related forming parts

• ejector-related parts

• selected replaceable locking-feature components

This is important for customers who want:

• easier maintenance

• quicker replacement of wear parts

• lower downtime in long-run production

• better long-term tooling control

This also connects directly to our core capability in custom mold components and custom machining services.

Problem–Solution Examples

1. Snap-Fit Whitening or Cracking

Common causes: excessive local stress, poor venting, unstable ejection, or sharp geometry in the locking area.
Our approach: optimize venting, control demolding strategy, and review locking geometry together with material behavior.

2. Drag Marks During Demolding

Common causes: undercut release not properly supported, insufficient stripper action, or unstable release path.
Our approach: review demolding concept based on undercut form and cap structure, using stripper plate, lifter/slider, ring release, or project-specific support where needed.

3. Cavity-to-Cavity Variation in Snap Force

Common causes: variation in lock height, lock thickness, inner diameter, or concentricity.
Our approach: define CTQ features clearly, inspect cavity-to-cavity variation, and control fit-related dimensions through process inspection and final validation.

Delivery and Validation

For a project like this, customers usually expect more than a mold. They also expect a clear validation path.

Typical deliverables may include:

• mold trial before shipment

• first article inspection report

• cavity comparison on defined CTQ features

• inspection record for critical dimensions

• spare part recommendation

• maintenance suggestions for key wear areas

RFQ Checklist

To quote a multi-cavity snap-on cap mold more accurately, please send:

Even if some data is not ready yet, we can still provide an initial review.

FAQ

What makes a snap-on cap mold different from a standard cap mold?

A snap-on cap mold must control internal locking features, undercut release, and snap-fit consistency. It is not only about forming the cap shape, but about keeping opening force, sealing, and demolding stable across all cavities.

What materials are commonly used for snap-on caps?

Most snap-on caps are made from PP, PE, or HDPE, depending on the flexibility and sealing requirements of the product.

How do you control snap-fit consistency in a multi-cavity mold?

We focus on CTQ features such as lock height, lock thickness, inner diameter, roundness, and concentricity. These features are checked through process inspection and final dimensional verification.

Can cavity count be customized?

Yes. Common cavity options include 8, 16, 24, and 32 cavities, and the final choice depends on cap structure, machine size, and output target.

Do you provide trial testing before shipment?

Yes. Mold trial and quality inspection are carried out before shipment.

Can you also supply replaceable mold components?

Yes. Depending on the mold structure, selected custom mold components can be supplied separately for maintenance and replacement.

Request a Quote

Looking for a multi-cavity snap-on cap injection mold, custom mold components, or a custom tooling solution for plastic closure production?

Send us your drawing, sample, and project details.
We can help review:

• cavity count

• demolding concept

• CTQ control points

• inspection plan

• trial and delivery scope
