Spout caps are used where a flexible package needs controlled dispensing, secure reclosure, and repeatable fit between the cap and the fitment. In production, the real challenge is not only molding the cap. It is keeping cap–fitment matching stable across cavities, across trials, and across long production runs.

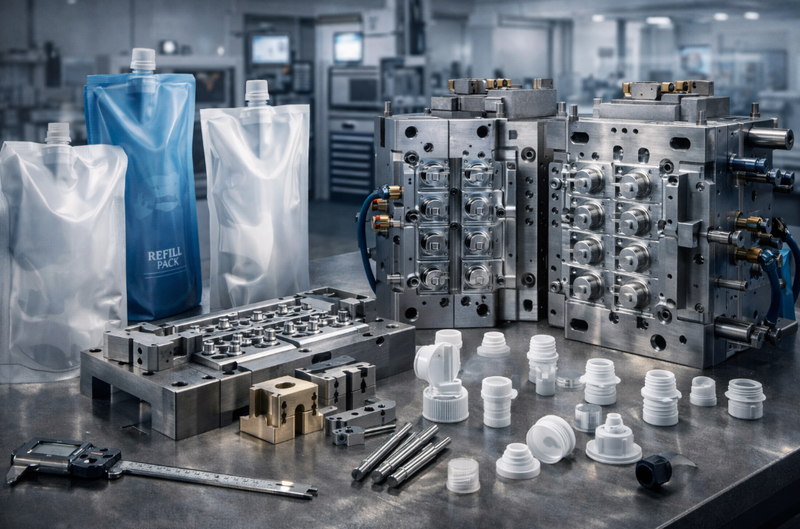

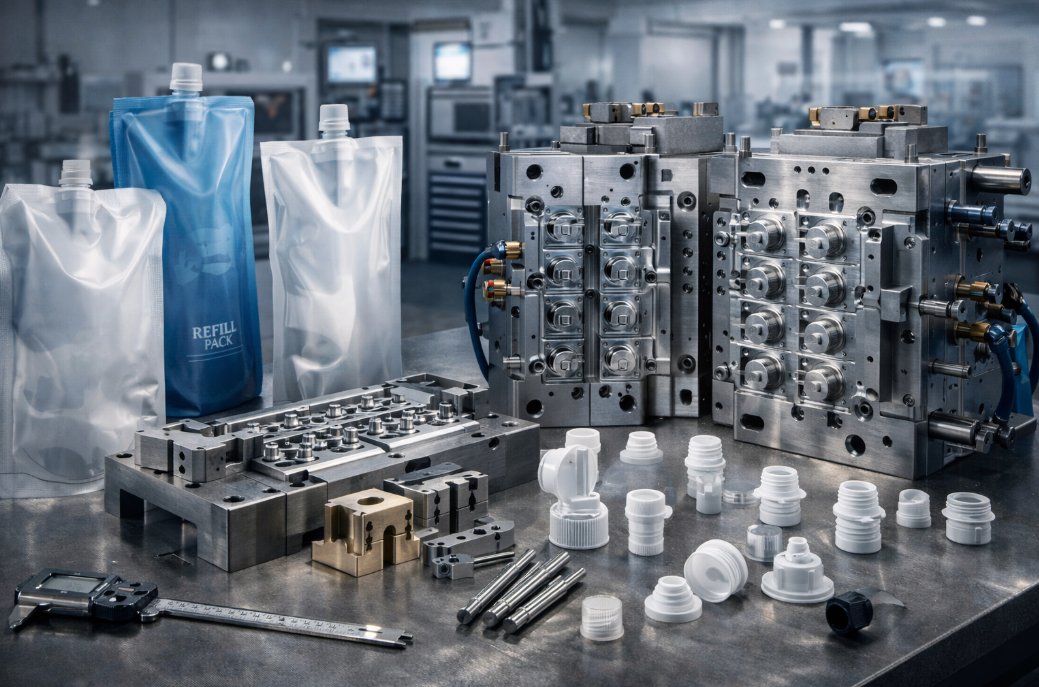

At SENLAN, we build custom spout cap molds for spouted pouch packaging, refill pouch closure systems, and other dispensing closure applications where thread fit, sealing performance, and maintenance access matter. Rather than offering a fixed standard tool, we build around the actual cap structure, the matching fitment, and the production target behind the project.
A standard bottle cap mold and a spouted pouch closure mold may look similar at first glance, but the risk points are different. A spout cap must work together with the fitment, the pouch, and the final filling or capping process. That means the cap cannot be evaluated alone.

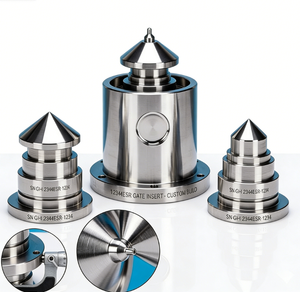

In many projects, the key engineering question is whether the cap thread, sealing face, and tamper-evident structure can match the fitment consistently in mass production. For buyers who also need fit-critical inserts, thread cores, and replacement wear parts, our precision mold components page gives a clearer view of the component side of this work.
We can support:
Our goal is stable sealing and consistent closing torque in mass production, not just an acceptable first sample.
Leakage risk usually comes from more than one source. The sealing land, sealing face, thread profile, concentricity, local flash, venting condition, and molding stability all affect whether the cap and fitment seal correctly. In tooling review, the thread and sealing surface need to be treated as function-critical areas rather than ordinary molded geometry.
A refill packaging cap that feels different from cavity to cavity creates problems later on the filling line and in end use. Torque inconsistency often starts with small differences in thread detail, shrink behavior, shut-off quality, or cavity balance. This is why torque stability should be considered early, not only after the first trial.
For a tamper evident cap mold, the weak point is often not the visible ring itself, but how the ring feature is formed, released, and repeated across cavities. If the structure is too fragile, too aggressive, or too inconsistent, it can lead to premature breakage, poor opening feel, or unstable molding behavior.

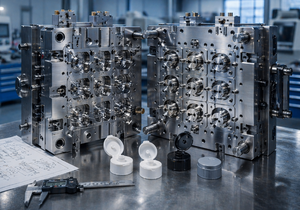

Multi-cavity cap molds magnify small differences. A few microns of variation in thread-related areas or sealing details can become a production issue once the closure is assembled in volume. For projects that depend on repeatable fit, we often treat the critical areas as replaceable inserts to improve correction speed and long-run maintenance.
We develop custom tooling based on the actual application rather than forcing the part into a standard mold concept. That can include:
If your project also requires custom-machined support parts, fixtures, or application-specific components around the closure mold program, you can review our custom machined parts capabilities.
The exact tooling route depends on the cap geometry, fitment structure, resin, and output target. Typical options may include:
Because these molds are closely tied to closure performance, they are usually reviewed together with the broader plastic injection molding requirements of the project rather than as an isolated machining task.
A spout cap mold is only as reliable as the tooling route behind it. Depending on the project, this may involve CNC machining, EDM, wire EDM, grinding, heat treatment, polishing, texture etching, and selected surface treatment for wear-sensitive areas.
More important than the equipment list itself is how the process is matched to the risk points in the closure. Thread-related areas, sealing surfaces, tamper-evident details, and repeatability across cavities all need a manufacturing route that supports fit, correction, and maintenance—not just initial machining.
For a broader view of how we handle machining, inspection, and production-focused tooling work, you can review our technical advantages.
These custom mold solutions are suitable for projects such as:
If you want to see how these types of tools fit into the broader packaging and mold-use context on our site, our applications page is the best place to start.
Buyers do not benefit much from a page that only says a supplier is experienced. What matters more is the project logic behind the tool. In spout cap programs, that usually comes down to three things:
This is where many closure mold projects are won or lost. The issue is not usually whether the cap can be molded. The issue is whether the mold can keep delivering the same cap-to-fitment behavior after the first trial, after the first maintenance cycle, and after long production use.
For a more useful quotation, please send:
If your team needs supporting files or quality-reference material during supplier review, our download page may also be useful.
Send drawings or samples for technical review and quotation.
If you are not sure about the thread or sealing design, send your pouch and fitment sample first. We can review cap–fitment matching risks before full tooling is finalized.
Based on your output target, we will review cap–fitment matching, sealing details, and cavity direction before moving into quotation discussion. To start the conversation, please use our contact page.
Leakage usually involves a combination of factors rather than one single cause. Common causes include unstable sealing face geometry, thread mismatch, concentricity variation, local flash, venting issues, or inconsistent molding conditions that affect how the cap seats on the fitment.
The main focus is cavity-to-cavity repeatability in thread-related and sealing-related areas. In practice, that means paying closer attention to machining route, fit-critical inserts, and sample verification with the mating fitment instead of checking the cap as a standalone part only.
That depends on resin choice, cycle target, cavitation, scrap sensitivity, and production economics. A hot runner cap mold may be the better route for some higher-output programs, while a cold runner layout may still make sense for lower-volume or less complex projects.
Yes. We can support cap mold only, fitment mold only, or a fitment & cap mold program where matching review is part of the early tooling discussion.
STEP, STP, or IGES files are usually the most practical for early review. A 2D drawing is also helpful when thread detail, sealing surfaces, or tolerance-related features need to be clarified during quotation.
A spout cap mold usually has to work with a separate fitment and a flexible pouch application, so cap–fitment matching is much more important. Thread and sealing surface control are often more critical than in an ordinary bottle cap project.
