A flip-top cap mold is rarely judged by how it looks on a drawing. Most issues appear later, after the tool is built and the parts start running at production speed. The cap may open and close, but the hinge feels inconsistent. The lid may seal, but one cavity starts flashing earlier than the others. The part may release, but cycle time is longer than expected, or maintenance becomes more frequent than planned.
That is why this type of project should not be evaluated only by cavity count or mold price. What matters more is whether the tool is being developed by a custom mold manufacturer that understands the real production risks behind flip-top closures.
On a flip-top cap, the hinge is not just a small design detail. In many cases, it is the first feature that tells you whether the mold is truly ready for production.
A hinge that looks correct in CAD can still become a problem after molding. If the hinge area is not formed consistently, the cap may whiten too early, feel too stiff, feel too loose, or fail after repeated opening and closing. This is where small differences in shut-off fit, steel stability, finishing quality, and cavity balance begin to show up.
For that reason, hinge-related areas need more attention than buyers sometimes expect. It is not only about machining the shape. It is also about how the tool behaves after heat treatment, how the molding area is finished, and whether performance remains stable in real packaging injection molding applications.
At the early quotation stage, people often ask one simple question: can the part be demolded?
That is only the beginning. The better question is whether the part can be demolded smoothly, repeatedly, and without creating extra work later. A mold that technically runs but needs constant adjustment is not a strong production tool. A mold that works only under narrow process conditions also creates pressure for the molding factory.
In practice, stable release depends on several things working together:
If one of these is weak, the issue may not appear in the first few shots. It usually appears after the mold enters regular production.

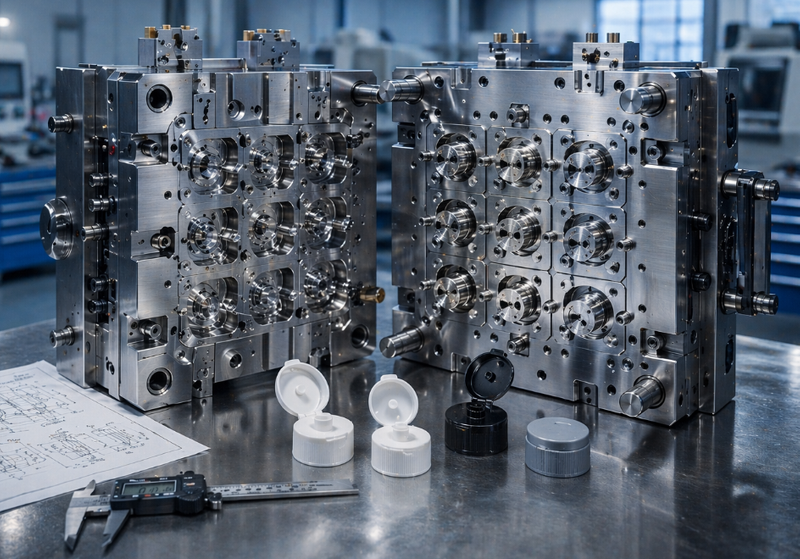

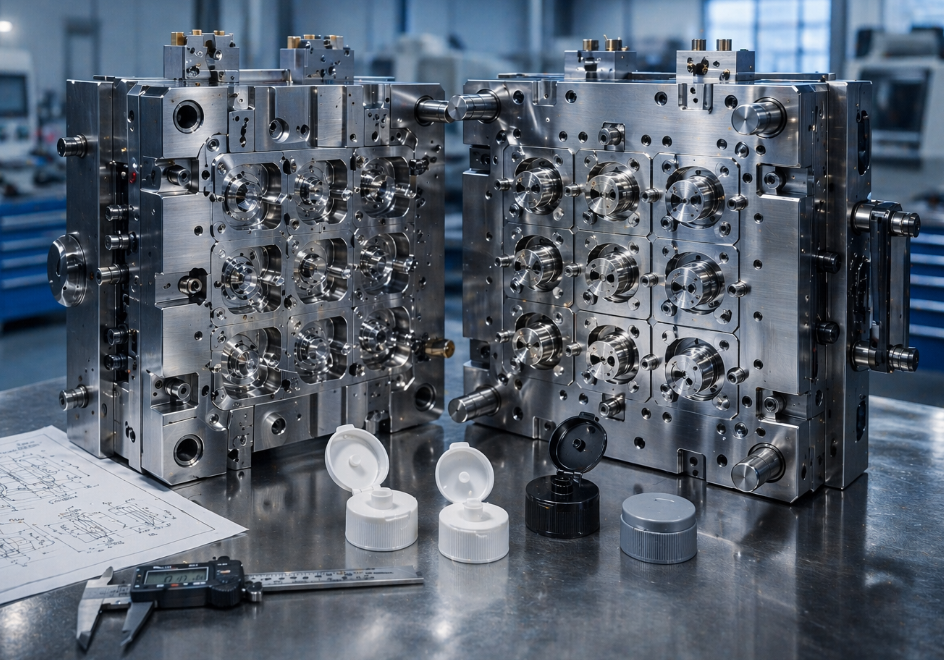

A single-cavity sample mold can hide many problems. An 8-cavity or 16-cavity production mold cannot.
Once the cavity count increases, even a small difference in machining or fitting can start affecting part behavior from cavity to cavity. One cap may close cleanly. Another may feel slightly different. One cavity may vent well, while another begins to trap air. These differences are often small at first, but they add up quickly in packaging production.
This is also why buyers often pay closer attention to replacement parts, inserts, and long-term maintenance support, especially when the project will require reliable mold components over time.
When people talk about packaging molds, they often think first about dimensions. But surface condition matters just as much.
For flip-top caps, polishing level, texture transition, and shut-off surface quality all influence how the cap releases, how the lid closes, and how stable the mold remains over time. In some designs, a surface that is too aggressive creates drag. In others, insufficient finishing may look acceptable in early samples but leads to wear or instability later.
That is why finishing should not be treated as a cosmetic step added at the end. It is part of the mold’s function. Depending on the project, that may involve polishing, texture etching, heat treatment control, or additional surface treatment where wear resistance becomes important.
If the closure design includes special internal release features or non-standard movement, related collapsible core solutions may also need to be considered during the tooling review.
Many sourcing decisions still revolve around three simple questions:
Those questions matter, but they are not enough. For flip-top cap molds, the more useful discussion happens before steel is cut:
A supplier that can discuss these points clearly is usually more valuable than one that only promises a short lead time.
At SENLAN, we treat a flip-top cap mold as a production tool, not only as a machining job. The work starts before manufacturing. The cap structure is reviewed, hinge-related risks are checked, likely shut-off and release issues are considered, and the machining route is matched to the actual requirement of the tool.
For some projects, the challenge is dimensional consistency across cavities. For others, it is hinge performance, venting, maintenance frequency, or fitting stability after heat treatment. The right approach depends on the cap itself, not on a fixed template. Our broader technical advantages come from matching process decisions to the real risk points in the mold, rather than treating every closure tool the same way.
A useful quotation usually starts with more than a basic drawing. If a buyer wants better feedback at the early stage, it helps to send information such as resin type, cavity target, hinge expectations, surface requirements, machine information, and output goals.
These details help the supplier judge what really matters in the project instead of quoting only on shape and size. In practice, this usually saves time later during design confirmation, machining review, and mold trial planning. For buyers who need a broader view of custom project planning, our tooling and mold solutions page provides a useful starting point.
In many packaging projects, people treat trial molding as the final checkpoint. In reality, it should be planned much earlier.
A meaningful first trial should help answer practical questions: Is the hinge forming as expected? Are shut-off areas stable? Does the part release smoothly? Is cavity behavior consistent? Are there signs of imbalance, drag, flash, or local wear risk?
When the trial is planned around those questions, it becomes much more than a sample-making step. It becomes part of the engineering review.
If your purchasing or engineering team needs supporting reference material during supplier evaluation, you can also review our download section for available documentation.
A flip-top cap mold is easy to underestimate. On paper, it may look like another packaging closure. In production, it quickly shows whether the engineering was shallow or solid.
The earlier the real risk points are discussed, the better the mold usually performs later. Before steel is finalized, it is worth reviewing the hinge area, shut-off design, cavity consistency, finishing requirements, and trial target. That conversation often makes the difference between a mold that simply runs and one that is genuinely ready for production.
