Bottle Cores / Mold Cores: Custom Cooling Solutions for Faster Cap Molding Cycles

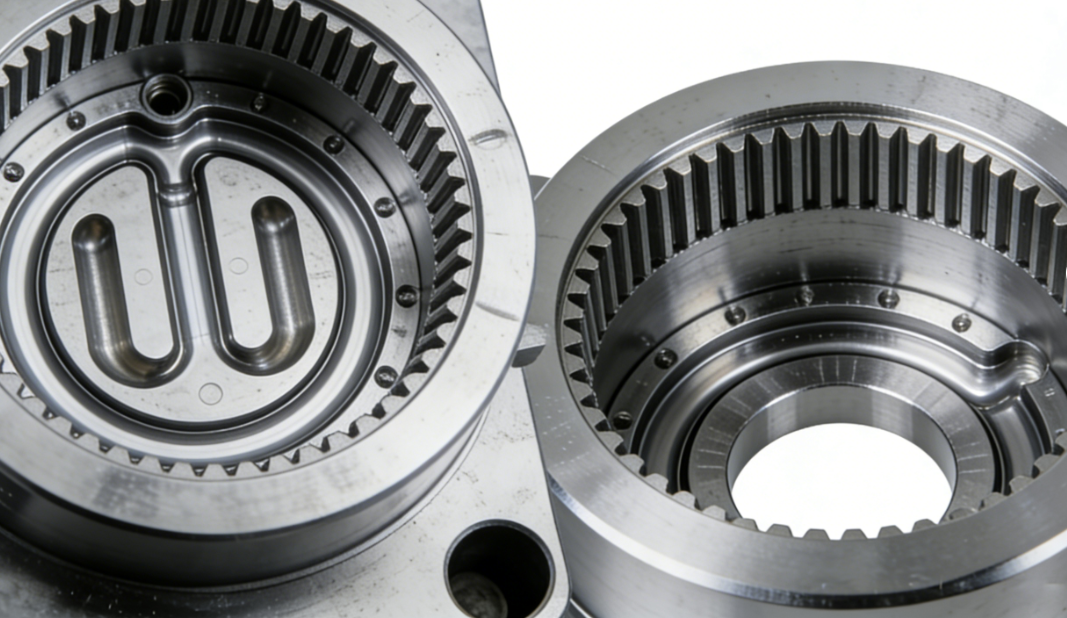

Custom-made bottle cores for cap and closure molds
Bottle cores, also known as mold cores or inner cores in cap mold applications, are among the most important working components in a packaging mold. They form the internal geometry of the cap and directly affect cooling performance, cycle time, sealing dimensions, thread stability, and cavity-to-cavity consistency.
At SENLAN, we manufacture custom bottle cores and mold cores strictly to customer drawings and mold requirements. These are not off-the-shelf parts. Each core is produced according to the actual cap design, cavity layout, resin condition, cooling target, and production requirement of the mold.
What This Product Does
In cap and closure molds, the bottle core forms the inside of the molded part and often controls:
- inside diameter and fit
- sealing-related geometry
- thread or tamper-related internal features
- cooling efficiency near the hottest working area
- part release behavior during demolding
- cavity-to-cavity consistency in multi-cavity molds
That is why bottle cores must be designed not only for dimensional accuracy, but also for thermal balance, wear resistance, and long-term replacement consistency.
Explore our broader precision mold components capability and technical advantages in machining and inspection.
Typical Custom Capability
| Item | Range / Performance |
|---|---|
| Tolerance Capability | Up to ±0.005 mm, depending on geometry and inspection requirement |
| Cooling Design | Custom cooling layouts based on cap structure, wall thickness, and cycle target |
| Material Options | S136 ESR, STAVAX ESR, H13, SKD61, or equivalent by application |
| Hardness | Defined according to resin wear, cycle target, and mold condition |
| Surface Finish | Based on sealing, release, and molded part requirements |
| Core Design Focus | Cooling efficiency, dimensional stability, and replacement consistency |
| Compatibility | Built to customer mold structure and standard systems where required |
Final steel, hardness, finish, and cooling configuration are confirmed according to the actual cap design, resin, output target, and mold layout.
Why Bottle Core Design Matters in Cap Molds
For cap and closure molds, profit is strongly tied to cycle time and cavity consistency. If the bottle core is poorly designed or weakly cooled, the mold may still run, but it often runs slower, less consistently, and with more maintenance problems.
Typical results of a weak bottle core design include longer cooling time, unstable thread feel, cavity-to-cavity weight variation, ovality, shrinkage, deformation, lower output per machine, and more downtime during maintenance.
This is why bottle cores should be evaluated as both forming components and cooling components.
Cooling Problems in High-Cavity Packaging Molds — and How We Address Them
Long Cycle Times
Pain: The mold runs, but cooling takes too long. Hold time is pushed longer than expected, and hourly output stays below target.
Root Cause: The bottle core is often one of the main heat concentration areas in the mold. If the water path is too far from the heat source or unevenly distributed, cooling becomes the bottleneck.
SENLAN Fix: We design custom internal cooling layouts, including suitable water path arrangements, bubblers, or baffles where the structure allows, to improve heat transfer around the working area.
What We Can Provide: Cooling layout review, water path recommendations, geometry review based on cap structure, and manufacturability feedback before production.
Hot Spots, Ovality, and Part Deformation
Pain: Some cavities produce caps with size drift, ovality, or unstable sealing dimensions even when machine settings stay the same.
Root Cause: Uneven temperature distribution around the bottle core creates local hot spots, which lead to non-uniform shrinkage and unstable part behavior.
SENLAN Fix: We use precision deep-hole drilling and controlled core machining to keep cooling channels accurately positioned and more evenly distributed through the core body.
What We Can Provide: Drawing review for cooling position, fit-critical geometry control, inspection of core-related dimensions, and dimensional review of thread and sealing areas.
Corrosion Inside Cooling Channels
Pain: Cooling performance drops over time, channels begin to rust, and maintenance becomes more frequent. In cleaner production environments, corrosion-related contamination is an even bigger concern.
Root Cause: Water exposure inside the core can gradually create corrosion if the steel is not suitable for the service condition.
SENLAN Fix: For corrosion-sensitive cap mold applications, we often recommend high-purity ESR stainless steels such as S136 ESR or STAVAX ESR for better rust resistance and polishing performance.
What We Can Provide: Steel recommendation by application, material certificate when required, hardness target confirmation, and process matching for water-exposed tooling parts.
Scale Buildup and Reduced Cooling Efficiency
Pain: Flow becomes weaker over time, pressure loss rises, cooling becomes less stable, and the mold needs more frequent cleaning.
Root Cause: Hard water deposits or internal buildup reduce effective channel area and lower long-term cooling efficiency.
SENLAN Fix: Where design conditions allow, we support smooth internal channel finishing to help reduce buildup and maintain more stable coolant flow through the bottle core.
What We Can Provide: Review of accessible cooling path design, maintenance-oriented cooling recommendations, flow-path-friendly internal structure discussion, and long-term serviceability considerations during core design review.
Technical Strength Behind the Product
Designed Around Cooling as Well as Geometry
A bottle core is one of the few mold parts that directly affects both part geometry and cycle efficiency. That is why we treat cooling design as part of the product, not as an afterthought.
Precision Machining for Core Stability
Bottle cores often control sealing areas, thread-related features, and fit-sensitive internal geometry. These areas require stable machining, controlled datum logic, and reliable finishing to perform correctly across multi-cavity production.
High-End Equipment for Execution
We manufacture bottle cores using advanced equipment, including MAKINO high-speed CNC and SODICK EDM systems, supported by suitable grinding and inspection methods depending on the geometry and application.
Built for Replacement Consistency
A replacement bottle core should return to the mold with the same functional logic as the original. We control the production route so replacement cores can match the approved reference as closely as possible, reducing fitting work during maintenance.
See more on our technical advantages.
The Customization Process
1. Drawing Submission
Send us your 2D or 3D files, such as STP, STEP, DXF, or PDF, together with cavity layout, resin information, cycle-time target, and cooling requirements where available.
We respect your intellectual property. NDAs can be signed before drawing submission to keep your design fully confidential.
2. DFM Review
We review manufacturability, cooling logic, fit-critical areas, steel selection, and machining risk points based on your actual cap mold application.
3. Precision Machining
The bottle core is produced using a process route selected for cooling-path execution, dimensional stability, and long-term service performance.
4. Verification
Critical dimensions are checked according to drawing and function. Depending on the project, this may include fit-related dimensions, seating checks, and reportable key measurements.
5. Secure Delivery
Finished parts are packed for safe export shipment and controlled handling on arrival.
Typical Applications
Beverage Caps
Suitable for 28 mm caps, 30/25 closures, 38 mm beverage caps, and water or CSD closures. The main concern is faster cycles, stable sealing dimensions, and repeatable thread performance.
Flip-Top and Functional Closures
Suitable for flip-top caps, hinged closures, and closure systems with internal functional geometry. The main concern is better cooling, dimensional repeatability, and stable demolding.
High-Cavity Cap Molds
Suitable for high-output cap molds, closure molds, and multi-cavity packaging programs. The main concern is cavity consistency, shorter cycle time, and lower maintenance downtime.
For cap mold applications, you may also want to review our multi-cavity cosmetic cream bottle cap mold page.
What We Need for Quotation
Required
- 2D drawing or 3D model
- Cavity quantity
- Resin information if available
- Target material or hardness
Helpful for Faster Review
- Cycle-time target
- Cooling requirements
- Expected mold life
- Target lead time
- Whether inspection report is required
The more complete the information, the faster we can review the cooling-sensitive and tolerance-sensitive areas of the bottle core design.
Need a custom review?
Send us your drawing, cavity layout, resin information, and cycle target. We will review the core structure, cooling-sensitive areas, and the most suitable manufacturing route.
FAQ
Is this a standard bottle core or a custom-made part?
This is a custom manufacturing service. Each bottle core / mold core is built according to your drawing, cavity arrangement, resin condition, and mold application.
Can you optimize the cooling layout based on our cap design?
Yes. Cooling is one of the main reasons customers choose a custom bottle core. We can review the cap structure and mold layout to support a more efficient cooling approach.
Why does bottle core design affect cycle time so much?
Because the bottle core is often one of the main heat-transfer areas in the mold. If cooling is inefficient in this region, the cap takes longer to stabilize, which increases the total molding cycle.
Can you support future replacement bottle cores?
Yes. We work to keep replacement cores consistent with the original approved design so fitting work during maintenance can be reduced.
What steel is commonly used for bottle cores in cap molds?
Common options include S136 ESR, STAVAX ESR, H13, and SKD61, depending on corrosion resistance, wear level, polishing requirement, and cooling-related conditions.
