Precision Unscrewing Cores: High-Cycle Solutions for Flawless Internal & External Threads
Engineered for 100M+ Cycles & Micron-Level Consistency—Zero-Fitting Replacement Guaranteed.
At SENLAN, we manufacture custom unscrewing cores and threaded cores strictly to customer drawings. These are not catalog parts. Each core is built around a specific thread form, mold structure, resin condition, demolding method, and production target.
For high-volume closure molds, thread quality alone is not enough. The core must run smoothly, release cleanly, resist wear, and remain replaceable during future maintenance without costly fitting work.
What This Product Is
An unscrewing core is a precision mold component used to form threaded features that cannot be released reliably by straight pull. In these tools, the core must not only create the correct thread geometry, but also support stable demolding and long-term performance under real production conditions.
That means the part has to do more than measure correctly on the bench. It has to maintain thread form, runout control, release stability, and replacement consistency inside a working mold.
Learn more about our precision mold components and machining and inspection capabilities.
Custom Capability
| Item | Range / Performance |
|---|---|
| Tolerance Capability | Up to ±0.005 mm, depending on geometry and inspection requirement |
| Thread Quality Focus | Stable pitch, clean thread profile, reliable fit consistency |
| Surface Finish | As required by thread function and release condition |
| Material Options | S136 ESR, STAVAX ESR, H13, SKD61, or equivalent by application |
| Hardness | Defined by resin wear, cycle target, and mold condition |
| Service Life Target | Built for high-volume programs, including long-life applications targeting 100M+ cycles, subject to mold design and operating conditions |
| Replacement Logic | Built for zero-fitting replacement through controlled datum and coordinate consistency |
Final steel, hardness, finish, and expected life depend on thread geometry, resin type, mold structure, lubrication, maintenance, and operating conditions.
Why Customers Choose Our Unscrewing Cores

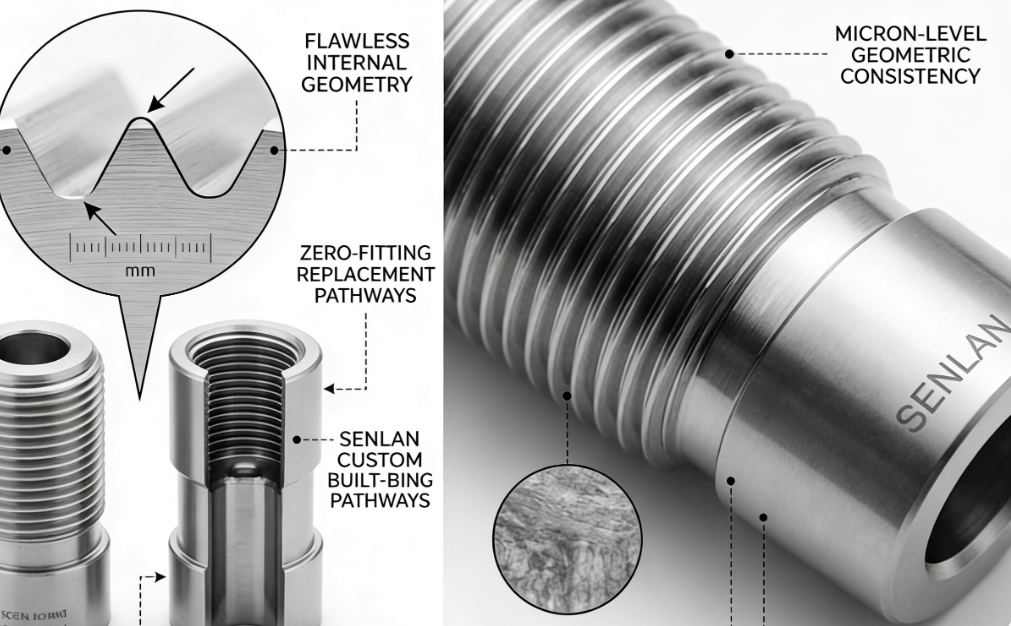

Flawless Thread Geometry
Threaded parts only perform well when pitch, profile, concentricity, and runout are held together as one system. If one of those drifts, the result may be unstable fit, leakage, poor torque feel, or damaged threads during release.
Smooth, Predictable Demolding
An unscrewing core must release cleanly under production conditions, not just during a short sample run. Poor surface quality, weak geometry control, or unstable fit can all lead to thread drag, sticking, or inconsistent unscrewing action.
Built for High-Cycle Production
For packaging molds running around the clock, service life is a business issue. A core that wears early will affect thread quality, increase downtime, and raise maintenance cost. We build unscrewing cores for long production runs with material, hardness, and process routes matched to the application.
Zero-Fitting Replacement
When a replacement core is needed, it should return to the mold without extra spotting or correction. That is why we control not only the thread, but also the datum logic behind the thread.
We use a unified electrode and clamping system across machining stages. This helps every replacement insert keep the same coordinate logic and reference structure as the original master, supporting true drop-in replacement.
Technical Strength Behind the Product
Precision Thread Manufacturing
Threaded cores are among the most demanding mold components because even small variation in runout, profile, or concentricity will show up quickly in molded parts.
High-End Equipment for High-End Results
Utilizing MAKINO High-Speed CNC and SODICK Mirror EDM, we manufacture thread profiles with extremely stable geometry, low runout, and strong surface integrity. This combination is especially important for high-cavity molds where one unstable core can affect the consistency of the entire tool.
Material and Heat Treatment That Match the Job
Where wear resistance and polishability matter, ESR grades such as STAVAX ESR and S136 ESR are often preferred. For demanding high-cycle applications, suitable steel selection combined with vacuum heat treatment helps maintain thread quality and wear resistance over long runs.
See more on our technical advantages.
Problem → SENLAN Fix
Problem: Thread fit feels too tight in some parts and too loose in others
SENLAN Fix: Controlled pitch and profile through precision machining, fine finishing, and fit-focused inspection.
Problem: Threads wear out too early in production
SENLAN Fix: Application-matched steel such as STAVAX ESR plus controlled heat treatment for stronger wear resistance and longer service life.
Problem: High downtime during maintenance
SENLAN Fix: Unified datum tracking and repeatable coordinate logic to support true drop-in replacement without heavy fitting work.
Problem: Unscrewing action becomes unstable after long runs
SENLAN Fix: Stable geometry control, better surface integrity, and process routes designed around release performance, not just nominal size.
Problem: Thread quality varies between cavities
SENLAN Fix: Set-level consistency control for multi-cavity molds, with focus on runout, concentricity, and replacement repeatability.
The Customization Process
1. Drawing Submission
Send us your 2D or 3D files, such as STP, STEP, DXF, or PDF, together with thread details, cavity quantity, resin information, and expected mold life where available.
We respect your intellectual property. NDAs can be signed before drawing submission to keep your design fully confidential.
2. DFM Review
We review thread geometry, demolding method, fit-critical areas, steel selection, and machining risk points based on your mold design and production target.
3. Precision Machining
The core is produced using a process route selected for thread accuracy, release stability, and long-term durability. Depending on geometry, that may include high-speed CNC, EDM, grinding, and fine finishing.
4. Verification
Critical dimensions are checked according to both drawing and function. Depending on the project, this may include thread-related dimensions, runout, concentricity, seating checks, and reportable key measurements.
5. Secure Delivery
Finished parts are packed for safe export shipment and controlled handling on arrival.
Typical Applications
Beverage Closures
Used for water caps, CSD caps, sports caps, and other threaded closures where sealing and torque consistency matter.
Cosmetic Packaging
Suitable for threaded cosmetic caps, jar lids, and closure systems where thread feel, appearance, and release quality must all remain stable.
Medical and Technical Plastic Parts
Used in threaded molded parts where fit, demolding reliability, and replacement consistency are critical.
High-Volume Packaging Programs
A strong fit for molds that run continuously and require long-life threaded core performance with predictable maintenance intervals.
For broader multi-cavity projects, read how we stabilize precision mold components for multi-cavity molds.
RFQ Information
Required
- 2D drawing or 3D model
- Thread specification or sample part
- Cavity quantity
- Material or hardness target
Helpful for Faster Review
- Molded resin information
- Expected mold life
- Demolding method details
- Target lead time
- Whether inspection report is required
The more complete the information, the faster we can review the thread-related risk points and recommend a suitable steel and machining route.
Need a faster review?
Send us your drawing, thread details, and application requirements. We will review the geometry, demolding risk points, and the best-fit machining route.
FAQ
What is the difference between a threaded core and an unscrewing core?
A threaded core forms the thread geometry of the molded part. An unscrewing core is used when that thread must be released through a controlled rotational or unscrewing action during demolding.
Can you make this strictly to our drawing?
Yes. This is a custom-made tooling component. We manufacture according to your drawing, thread specification, mold design, and service requirement.
Can you support future replacement cores?
Yes. Replacement consistency is one of the main reasons customers choose this type of product. We control datum logic so future cores can match the original approved master as closely as possible.
What helps thread quality stay stable over long runs?
Stable thread quality depends on the right steel, suitable heat treatment, controlled machining, good surface integrity, and strong runout and concentricity control.
Can this be used for high-cycle molds?
Yes. These cores are intended for high-volume applications. Final cycle life depends on mold design, resin abrasiveness, lubrication, maintenance, and operating conditions.
