CNC Turning Inserts for Bottle Cap Moulds
Custom CNC-turned core inserts, thread-related inserts and precision mould components for PET bottle cap and plastic closure injection moulds.
Quick Answer

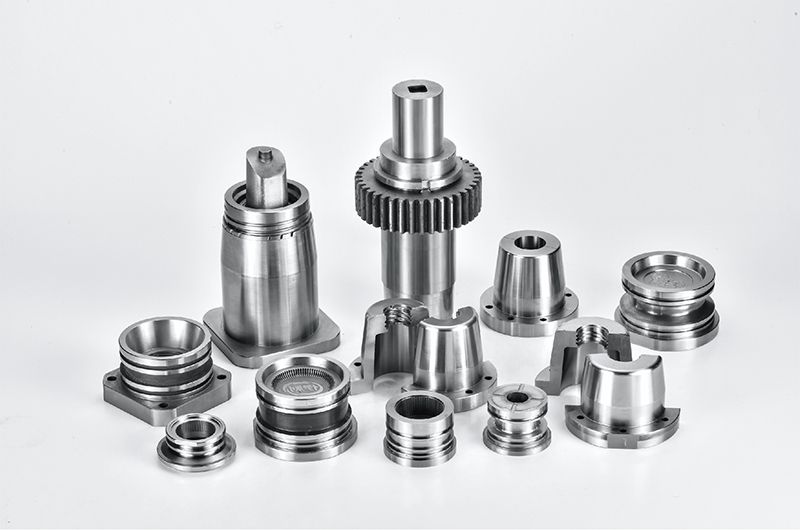

SENLAN manufactures custom CNC-turned core inserts and related precision components for PET bottle cap and plastic closure injection moulds. Each insert is produced according to the customer’s drawing, 3D model or reference sample, with material, hardness, surface condition and critical dimensions reviewed for the intended mould position.
These inserts are not treated as isolated turned parts. In a bottle cap mould, core inserts, thread-related geometry, sealing features and fitting surfaces can affect cap fit, sealing position, demoulding behaviour, replacement repeatability and cavity-to-cavity consistency.
Product Specifications
```| Item | Specification / Available Options |
|---|---|
| Product Type | Custom CNC-turned core inserts and mould inserts for PET bottle caps and plastic closures |
| Material Options | H13 / 1.2344, Stavax, Böhler grades and S136; final grade selected according to drawing and application |
| Hardness | 50–54 HRC where specified and suitable for the selected material |
| Accuracy / Tolerance | Critical-to-quality dimensions can be controlled to ±0.005 mm when applicable; achievable tolerance depends on geometry, material and feature size |
| Product Dimensions | Custom-made to customer drawings, 3D data or samples |
| Surface Treatment / Finish | Polishing, TiN coating, DLC coating or nitriding, as specified and technically suitable |
| Processing Methods | CNC turning, CNC machining, EDM, grinding, polishing and heat treatment as required by the part design |
| Inspection | Dimensional inspection; CMM inspection and dimensional reports available according to agreed inspection requirements |
| Lead Time | Typically 7–15 working days after deposit and technical data confirmation; subject to part complexity, material and quantity |
| MOQ | 1 piece |
| Payment Terms | T/T, PayPal or Western Union; 50% deposit and balance before shipment |
| Customization | Material, hardness, dimensions, tolerances, surface finish, coating, cavity identification and replacement-part requirements |
Product Overview
CNC-turned mould inserts form functional areas of a bottle cap or closure, including internal profiles, thread-related geometry, sealing features and fitting surfaces. Their dimensional stability and surface condition can influence cap fit, sealing position, release behaviour and consistency between mould cavities.
For new tooling, SENLAN manufactures inserts from approved technical data and controls the dimensions identified as critical on the drawing. For maintenance projects, replacement inserts can be produced from drawings, 3D files or an existing sample. Cavity identification, datum references and fit conditions should be provided when interchangeability with existing mould components is required.
For a broader view of related closure tooling parts, visit Caps Mold Components.
Application Areas
```| Application | How CNC-Turned Inserts Support the Mould |
|---|---|
| PET Water and Beverage Caps | Core inserts for screw-cap moulds where thread form, sealing geometry and repeatable cavity output affect closure fit and leakage-related risk control. |
| Food Container Closures | Custom inserts for caps used on jars, sauces and other food containers, manufactured to the customer’s closure and mould specifications. |
| Cosmetic and Personal Care Packaging | Turned inserts for threaded and sealing features in skincare, personal care and cosmetic packaging closure moulds. |
| Household and Daily-Chemical Closures | Mould inserts for detergent, cleaning-product and dispensing closures where fit, wear resistance and replacement repeatability matter. |
| Pharmaceutical and Medical-Related Packaging | Drawing-based components for container and closure moulds with defined dimensional, material and inspection requirements. Final product validation remains the customer’s responsibility. |
| Replacement and Maintenance Parts | Replacement core inserts and wear-related components for existing cap moulds, including cavity-numbered parts when matching records are supplied. |
Custom Manufacturing Options
Components are manufactured based on 2D drawings, 3D models, samples or documented technical requirements. Custom options include:
```steel grade and heat-treatment requirement;
part dimensions, datum system, fits and critical tolerances;
thread, sealing, concentric and other functional geometry;
polished surfaces, TiN or DLC coating, and nitriding where suitable;
prototype, single replacement part or repeat batch quantities;
cavity numbering and inspection records for multi-cavity moulds;
replacement inserts made to supplied drawings or reviewed samples.
If a sample is supplied without complete drawings, SENLAN will review what can be measured and reproduced. Functional tolerances and fitting conditions should still be confirmed before production.
For other precision mould insert categories, see Mold Components.
```Quality Control for Cap Mould Inserts
```Drawing and CTQ Review
Material, hardness, datums, fits and critical-to-quality dimensions are reviewed before machining. Any unclear or conflicting requirement should be resolved before production.
In-Process Dimensional Control
Critical diameters, lengths, concentric relationships and fitting features are checked at appropriate machining stages to reduce final assembly risk.
Final Inspection
CMM and suitable dimensional inspection methods are used according to feature geometry and agreed requirements. Surface finish, critical dimensions and fit-related features are checked before release.
Project Documentation
Dimensional reports and material certificates can be supplied when requested and agreed with the order. Inspection scope should be stated in the RFQ.
To review SENLAN’s machining and inspection support, visit Technical Advantages and Equipment.
```What to Send for Quotation
Providing the following information allows the engineering team to review manufacturability, inspection needs and lead time before quotation:
```2D drawings with dimensions, tolerances and datum references;
3D files such as STEP, STP, X_T or IGES;
required material grade and material certificate requirement;
hardness or heat-treatment requirement;
surface finish, polishing, coating or nitriding requirement;
order quantity and whether repeat batches are expected;
closure application and mould type, including cavity count where relevant;
critical dimensions, fit conditions and requested inspection report;
sample photos, defect photos or an existing part for replacement projects.
Clear technical information helps SENLAN reduce quotation assumptions and review whether the request is a new cap mould component, a replacement insert or part of a broader injection mould project.
```Frequently Asked Questions
```Can you manufacture bottle cap mould inserts according to our drawings?
Yes. SENLAN manufactures custom CNC-turned core inserts and related mould inserts according to customer drawings, 3D models, samples and agreed technical requirements.
What materials can you process for cap mould inserts?
Common material options include H13 / 1.2344, Stavax, Böhler grades and S136. Final material selection should be confirmed according to mould function, wear condition, surface requirement and customer drawing.
Can you hold ±0.005 mm tolerance?
SENLAN can control customer-defined critical dimensions to ±0.005 mm when applicable. Achievable tolerance depends on part geometry, material, feature size, heat treatment and inspection method.
Can you provide inspection reports and material certificates?
Yes. Dimensional reports, CMM reports and material certificates can be provided when requested and agreed before production. Inspection scope should be clearly stated in the RFQ.
What is the typical lead time?
Many custom inserts can be reviewed within 7–15 working days after deposit and technical data confirmation. Final delivery time depends on complexity, material, quantity, surface treatment and inspection requirements.
Do you support one-piece and small-quantity orders?
Yes. SENLAN can support 1-piece orders, prototypes, replacement inserts and small batch quantities according to customer drawings and project requirements.
Can you make replacement inserts for an existing mould?
Yes. Replacement inserts can be reviewed when drawings, old parts, cavity numbers, defect photos or sample records are available. Existing mould wear and previous manual fitting history should also be considered before confirming replacement feasibility.
```Request a Drawing Review
Send your drawings, 3D files or sample photos with material, quantity and critical-dimension requirements. SENLAN’s engineering team will review the component details for quotation.
``````Important Note
SENLAN manufactures CNC-turned mould inserts and precision mould components according to customer-defined drawings, materials, tolerances and inspection requirements. Final cap sealing performance, torque behaviour, product approval and market compliance should be validated through mould trial, sample approval and customer-defined testing standards.
