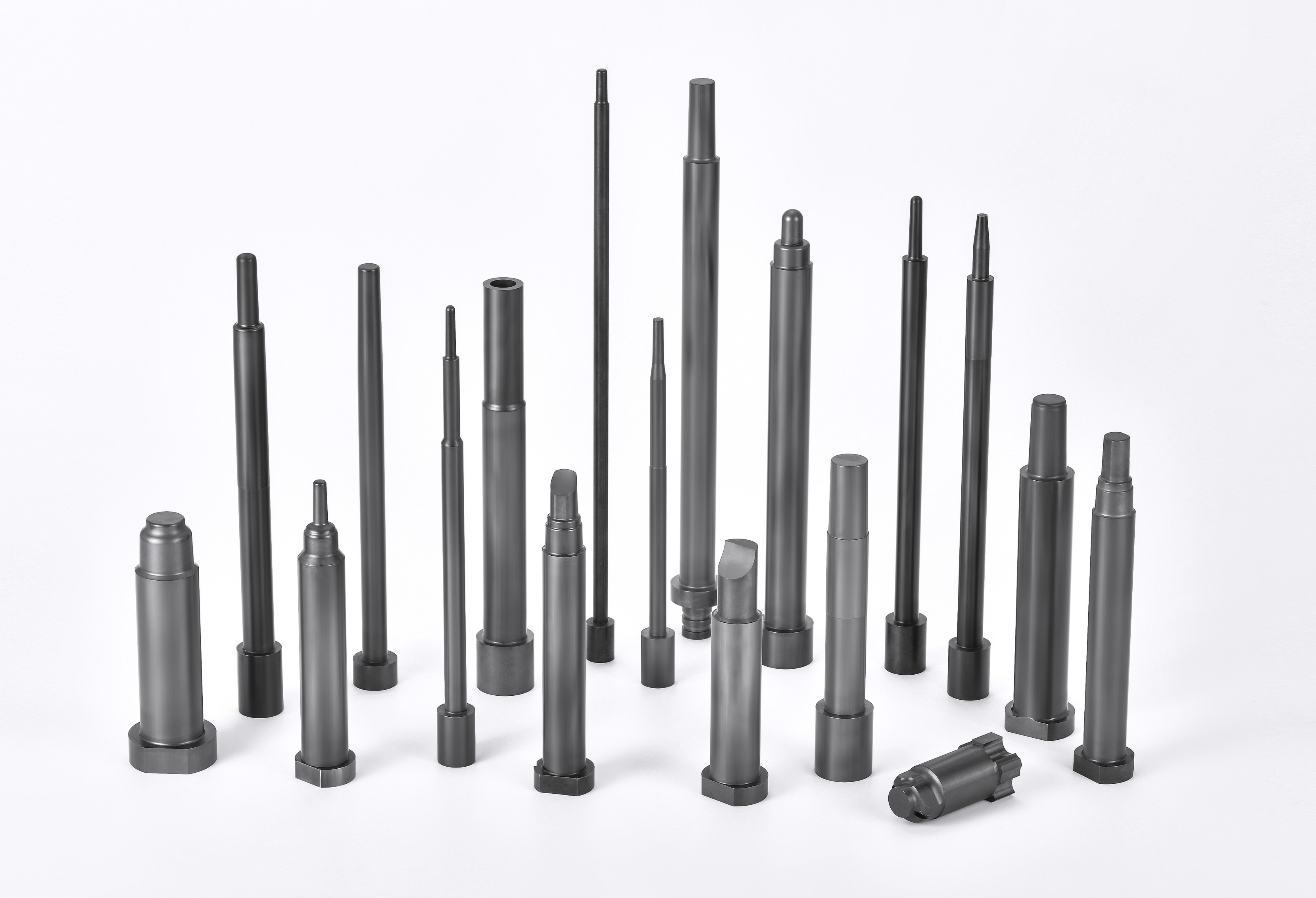

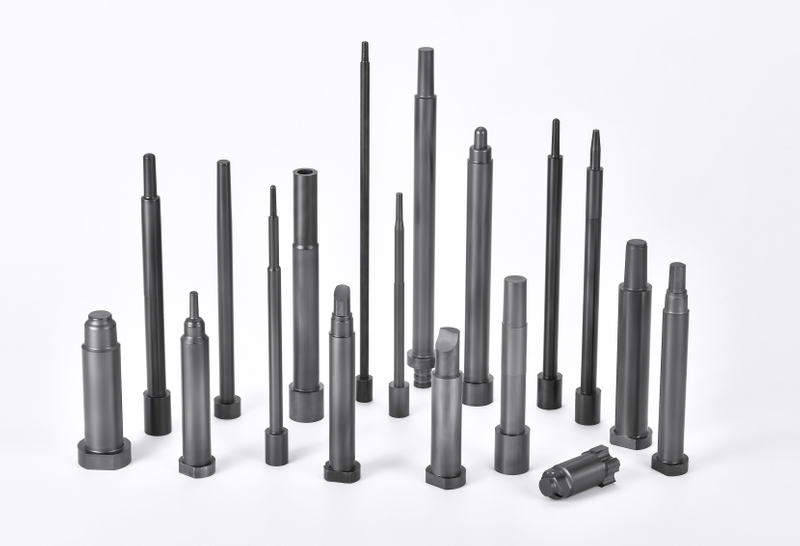

Custom Ejector Sleeves for High-Speed Packaging Molds
Built for smoother ejection, lower galling risk, and more stable high-cycle production
Ejector sleeves are often treated as secondary mold parts until they begin to fail. In high-speed cap, closure, and medical molds, however, they directly affect ejection stability, friction heat, concentricity, wear life, and downtime.
At SENLAN, we manufacture custom ejector sleeves strictly to customer drawings and mold requirements. Each sleeve is built around the actual pin fit, resin condition, cycle speed, wear target, and mold structure of the application.
What This Product Solves
Ejector sleeves are used where a molded part must eject around a central pin or core. In high-speed packaging and medical molds, the sleeve has to do more than move. It must stay concentric, resist friction heat, avoid galling, and remain dimensionally stable under repeated cycles.
Also known in some projects as sleeve ejectors or ejector sleeve bushings, this component is especially important in thin-wall molding, cap molds, closure molds, and other high-cavity programs where poor ejection becomes a production problem fast.
Explore our broader precision mold components, mold components range, and technical advantages in machining and inspection.
Typical Custom Capability
Typical capability: up to ±0.005 mm tolerance, fit-critical concentricity control, ESR steels, optional DLC / TiN coatings, and repeat replacement manufacturing based on approved reference logic.
| Item | Range / Performance |
|---|---|
| Tolerance Capability | Up to ±0.005 mm, depending on geometry and inspection requirement |
| Concentricity Focus | Controlled for sleeve-to-pin fit and stable high-speed movement |
| Material Options | S136 ESR, STAVAX ESR, H13, SKD61, or equivalent by application |
| Coating Options | DLC, TiN, or application-based surface treatment where required |
| Hardness Strategy | Matched to wear condition, cycle target, and resin type |
| Application Focus | High-speed cap molds, closure molds, medical molds, thin-wall molding |
| Inspection | CMM-based dimensional check and critical-feature reporting on request |
Final steel, finish, coating, hardness, and fit class are confirmed according to pin size, sleeve structure, resin condition, cycle speed, and actual mold operating requirements.
Why Ejector Sleeve Performance Matters
For high-speed molds, ejector sleeve stability is a heat, fit, and wear problem—not only a dimensional one.
If the sleeve-to-pin fit is unstable, the result may show up as sticking, drag marks, local heat buildup, sleeve scoring, dimensional drift, or early wear. In high-cavity packaging molds, these problems do not stay isolated. One unstable sleeve can turn into repeated downtime, flash risk, and inconsistent part quality.
Common Ejector Sleeve Problems — and How We Address Them
Galling & Seizing in High-Speed Injection
Pain: The sleeve and center pin begin to score, seize, or drag under repeated fast cycling. Production stops, and maintenance becomes urgent.
Typical Cause: High contact pressure, poor surface integrity, weak material pairing, or insufficient wear resistance in the sleeve-to-pin interface.
SENLAN Approach: We match material, hardness, and optional coatings such as DLC or TiN to reduce friction-related wear and improve sliding stability under demanding ejection conditions.
What We Can Provide: Sleeve material recommendation, coating review, fit-related dimension review, and replacement manufacturing based on approved running conditions.
Friction Heat at the Ejection Area
Pain: The part ejects, but local heat around the sleeve area affects dimensional stability or leaves the ejection zone more sensitive to deformation.
Typical Cause: Repeated sleeve movement under poor fit or weak surface condition creates excess friction heat during high-speed running.
SENLAN Approach: We control sleeve fit, concentricity, surface condition, and wear route so the sleeve runs more smoothly and generates less unnecessary friction under production speed.
What We Can Provide: Fit review by pin size, finish review by application, and geometry control on sleeve ID / OD and reference features.
Poor Concentricity
Pain: The sleeve does not run true around the center pin. The result may be unstable motion, uneven wall condition, damage to the core area, or reduced sleeve life.
Typical Cause: ID and OD are not controlled from a stable datum logic, or the sleeve geometry shifts during machining or finishing.
SENLAN Approach: We manufacture sleeves with fit-critical concentricity control so the sleeve-to-pin relationship stays stable in real movement, not just in nominal dimension.
What We Can Provide: Critical-feature inspection, concentricity-focused machining logic, and sleeve replacement manufacturing based on approved master reference.
Early Wear with Glass-Filled or Additive-Heavy Resins
Pain: The sleeve wears out too early, clearance increases, and flash risk rises over time. Maintenance becomes more frequent than expected.
Typical Cause: More abrasive resins or special additives increase wear inside the sleeve bore and accelerate fit degradation.
SENLAN Approach: We select steel and optional coating based on the actual wear condition rather than using a generic sleeve route for every project.
What We Can Provide: Material and coating recommendation by resin condition, wear-target discussion, and replacement strategy for high-wear sleeves.
What Buyers Usually Ask Before Ordering
The questions below are common in medical, packaging, and thin-wall molding projects where ejector sleeve reliability directly affects uptime.
- What is the best coating for ejector sleeves in medical or packaging molds?
- How can seizing be reduced in high-speed injection molding?
- Are coated sleeves compatible with food-grade or clean-production resin systems?
- When is a custom ejector sleeve better than a standard sleeve in thin-wall molding?
Technical Strength Behind the Product
Fit-critical machining for sleeve stability
Ejector sleeves must run as a moving fit, not as an isolated cylindrical part. That is why we build the machining route around sleeve-to-pin performance, not only nominal sleeve size.
High-end equipment for high-cycle tooling
We manufacture custom sleeves using advanced equipment including MAKINO high-speed CNC, precision grinding, and inspection methods matched to the geometry and fit requirement. For related high-precision mold components, our public technical page also shows broader capability across EDM, wire EDM, grinding, and Zeiss CMM-backed inspection.
Built for repeat replacement
A replacement sleeve should not create extra fitting work or misalignment. Our process controls help future sleeves follow the same approved reference logic as the original part.
Read more about our technical advantages and our work on multi-cavity mold component stability.
Customization Process
1. Drawing Submission
Send your 2D or 3D files, such as STEP, STP, DXF, or PDF, together with sleeve dimensions, pin size, cavity quantity, resin information, and expected service target if available.
NDA is available before submission to protect your drawing and project information.
2. DFM Review
We review sleeve structure, fit condition, material and coating suitability, wear risk, and machining risk points for the actual application.
3. Precision Machining
The process route is selected for sleeve-to-pin fit stability, wear resistance, and replacement consistency.
4. Verification
Critical dimensions are checked according to drawing and function. Inspection points and reports are available on request.
5. Secure Delivery
Finished parts are packed for export shipment and controlled handling on arrival.
Typical Applications
Cap and Closure Molds
High-speed packaging molds where ejection stability, lower friction heat, and repeat sleeve life matter.
Medical Molds
Applications where cleaner movement, more predictable fit, and better wear control are needed in repeated production.
Thin-Wall Molding
Tools where unstable ejection quickly turns into dimensional risk, sleeve wear, or cycle interruption.
What We Need for Quotation
Required
- 2D drawing or 3D model
- Sleeve dimensions and mating pin information
- Resin information, if available
- Target material, hardness, or coating request
Helpful for Faster Review
- Cycle speed or production target
- Known wear or seizing issues
- Expected sleeve life
- Inspection report requirement
- Lead time target
The more complete the information, the faster we can review the fit-sensitive and wear-sensitive areas of the ejector sleeve design.
Ready for a custom review?
Send us your drawing, fit information, resin condition, and performance target. We will review the sleeve structure, wear risk, and the most suitable manufacturing route.
FAQ
What is the best coating for ejector sleeves in medical or packaging molds?
It depends on the resin, cycle speed, and wear condition. In many projects, coatings such as DLC or TiN are reviewed when lower friction and improved wear resistance are needed.
How can seizing be reduced in high-speed injection molding?
Seizing is usually controlled through the right combination of sleeve fit, concentricity, material hardness, surface integrity, and coating suitability. It is rarely solved by coating alone.
Are coated sleeves compatible with food-grade or clean-production resin systems?
Project requirements should always be reviewed case by case. Coating suitability depends on the mold application, resin environment, and any cleanliness or compliance standard required by the customer.
When is a custom ejector sleeve better than a standard sleeve?
A custom sleeve is usually the better choice when the mold runs at high speed, uses thin-wall geometry, needs better concentricity control, or must solve wear, galling, or replacement-fit issues that standard sleeves do not address well.
Can you support future replacement sleeves?
Yes. We manufacture replacements based on the approved design and controlled datum logic to reduce fitting work during maintenance.
