What are the common defects in bottle caps produced by a mold?

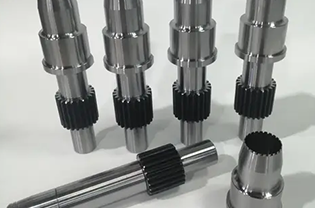

The manufacturing of high-quality plastic closures relies heavily on the precision of the bottle cap mold. In the competitive landscape of B2B packaging, understanding the technical nuances of the plastic bottle cap mold is essential for maintaining production efficiency and minimizing waste. A cap molding tool must operate under extreme pressure and temperature variables, and even slight deviations in these parameters can lead to significant structural or aesthetic failures in the final product.

Common defects in bottle caps produced by a mold include flash, short shots, sink marks, warping, and various surface defects like silver streaks or burn marks. These issues are typically caused by imbalances in temperature, pressure, or improper maintenance of the bottle cap mold.

Addressing these challenges requires a deep dive into the mechanics of the packaging mold and the injection molding process. By identifying the root causes of these defects, manufacturers can optimize their custom cap mold performance and ensure a consistent output that meets rigorous industry standards. This guide provides a comprehensive analysis of the primary defects encountered during the production of plastic closures.

Table of Contents

1. Flash

2. Short Shots

3. Sink Marks

4. Warping

5. Surface Defects

   Conclusion

Flash

Flash is a common defect where excess plastic escapes the bottle cap mold cavity through the parting line or ejector pins, resulting in a thin, wing-like projection on the edge of the finished cap.

In the realm of high-volume production, flash is often the result of excessive injection pressure or a lack of sufficient clamping force applied to the plastic bottle cap mold. When the molten plastic is forced into the cap molding tool at a pressure higher than the machine can hold shut, the two halves of the mold separate slightly. This microscopic gap allows the material to seep out, creating a jagged edge that necessitates secondary trimming processes, thereby increasing labor costs and reducing the overall efficiency of the packaging mold.

Furthermore, flash can be indicative of wear and tear on the bottle cap mold itself. Over time, the parting lines of a custom cap mold may become rounded or damaged due to repeated cycles or the presence of debris. If the mold plates do not meet perfectly, flash becomes a chronic issue. This not only affects the aesthetic appeal of the bottle cap but can also interfere with the sealing integrity of the closure, leading to potential leaks in the final packaged product.

To mitigate flash, engineers must carefully calibrate the injection speed and pressure settings. If the material viscosity is too low—often caused by excessively high melt temperatures—the plastic flows too easily into gaps it shouldn't reach. Regularly inspecting the bottle cap mold for surface integrity and ensuring that the clamping force is appropriately matched to the projected area of the plastic bottle cap mold are vital steps in maintaining a defect-free production line.

Short Shots

A short shot occurs when the molten plastic fails to completely fill the bottle cap mold cavity, resulting in a cap that is missing portions of its structure, such as the threads or the top surface.

This defect is frequently a symptom of insufficient material being injected into the cap molding tool. If the shot size is miscalculated or if the injection pressure is too low to push the viscous plastic through the intricate gates of the plastic bottle cap mold, the material freezes before it reaches the extremities of the cavity. For a custom cap mold, this is particularly problematic as custom geometries often include thin walls or complex internal threads that require precise pressure to fill correctly.

Air traps within the packaging mold are another leading cause of short shots. If the venting system of the bottle cap mold is clogged or poorly designed, the air inside the cavity cannot escape as the plastic enters. This trapped air creates a back-pressure bubble that physically blocks the plastic from filling the space. In high-speed production environments using a cap molding tool, even a small blockage in a vent can lead to hundreds of incomplete caps before the issue is detected by quality control.

Consistency in material temperature is also a critical factor. If the plastic melt is too cold, its viscosity increases, making it much harder to move through the bottle cap mold. This can lead to "hesitation," where the flow slows down in thinner sections and solidifies prematurely. Ensuring that the heater bands on the injection machine are functioning and that the plastic bottle cap mold has an optimized cooling and heating circuit is essential for preventing short shots and ensuring every custom cap mold produces a full, functional part.

Sink Marks

Sink marks are small craters or depressions that develop in the thicker sections of a cap when the internal material shrinks and pulls the surface inward during the cooling phase within the bottle cap mold.

These depressions usually occur in areas where there is a significant change in wall thickness, such as where a rib or a boss meets the main surface of the cap. Because thicker areas of a plastic bottle cap mold hold heat longer than thinner sections, the outer skin solidifies first. As the molten core in the center eventually cools and contracts, it exerts a vacuum-like pull on the still-pliable outer surface, creating a "sink." In the production of a custom cap mold, preventing these marks requires careful attention to uniform wall thickness.

Low holding pressure is a primary culprit for sink marks in a cap molding tool. After the initial injection, the machine should maintain pressure to "pack" more material into the bottle cap mold as it shrinks. If this holding time is too short or the pressure is too low, there isn't enough material to compensate for the natural contraction of the polymer. This is a common challenge when using a packaging mold for materials with high shrinkage rates, such as Polypropylene (PP) or High-Density Polyethylene (HDPE).

Thermal management plays a decisive role here as well. If the cooling time provided by the bottle cap mold is insufficient, the part is ejected while the core is still too hot, allowing the sink to form outside the mold. By optimizing the cooling channel layout in the plastic bottle cap mold, manufacturers can ensure that heat is removed evenly. This level of precision in a cap molding tool ensures that the final product maintains a perfectly flat and professional surface finish, free of unsightly dimples.

Warping

Warping is a distortion of the shape of the bottle cap caused by uneven internal stresses and non-uniform cooling rates across different areas of the bottle cap mold.

When a cap comes out of the plastic bottle cap mold twisted or bowed, it is usually because one part of the component cooled faster than another. As plastic cools, it shrinks; if the shrinkage is not uniform, the part will pull itself out of its intended shape. For a cap molding tool, this is disastrous because a warped cap will not thread onto a bottle correctly, leading to sealing failures and potential product contamination. This is especially prevalent in a custom cap mold where the design might be asymmetrical.

The design of the cooling system within the bottle cap mold is the most frequent cause of warping. If the cooling lines are closer to one side of the cavity than the other, that side will solidify and shrink sooner. Additionally, the choice of material for the packaging mold components matters; materials with high thermal conductivity help dissipate heat more evenly. If the cap molding tool is not maintaining a consistent temperature across all cavities, the resulting variation in part dimensions will make automated capping lines fail.

Process parameters such as injection speed and melt temperature also influence warping. High injection speeds can induce "molecular orientation," where the polymer chains are stretched in the direction of flow. If these chains do not have time to relax before the bottle cap mold cools them, they will "spring back" upon ejection, causing the part to warp. Maintaining a balanced cycle time and ensuring the plastic bottle cap mold is operated within the material manufacturer's recommended thermal window are key strategies for producing dimensionally stable caps.

Surface Defects

Surface defects encompass a variety of visual flaws, such as silver streaks, burn marks, and flow lines, which mar the appearance of the product produced by the bottle cap mold.

Silver streaks, often called splay, are caused by moisture or gas trapped in the plastic melt as it enters the cap molding tool. If the raw material is not properly dried before being fed into the plastic bottle cap mold, the moisture turns into steam during the heating process. This steam is then pushed against the surface of the bottle cap mold, leaving metallic-looking streaks. For a high-end custom cap mold, these flaws are unacceptable as they suggest a lack of quality control in the manufacturing process.

Burn marks, or "gas burns," are dark spots that appear on the edges of the cap. These occur when trapped air is compressed so quickly by the incoming plastic in the packaging mold that it undergoes adiabatic heating—essentially a small explosion of heat that chars the plastic. This usually happens at the end of the flow path where venting in the bottle cap mold is inadequate. Adjusting the injection speed or improving the vents in the cap molding tool can eliminate these localized hot spots.

Flow lines are wavy patterns that appear on the surface, indicating the path the plastic took as it filled the plastic bottle cap mold. These occur if the plastic cools too quickly as it moves through the cavity, or if the gate size in the cap molding tool is too small, causing turbulent flow. By increasing the melt temperature or the mold temperature of the bottle cap mold, the plastic remains more fluid, allowing the flow fronts to merge seamlessly. This ensures that even the most complex custom cap mold produces a smooth, high-gloss finish.

Comparison of Common Mold Defects

Conclusion

Mastering the production of plastic closures requires a comprehensive understanding of the bottle cap mold and the various factors that contribute to manufacturing defects. From the structural integrity issues caused by warping and short shots to the aesthetic failures of flash and surface defects, each problem can be traced back to the performance of the plastic bottle cap mold. By implementing rigorous maintenance schedules for the cap molding tool and precisely controlling the injection parameters, manufacturers can ensure that their packaging mold yields consistent, high-quality results.

Investing in a high-quality custom cap mold is only the first step; the ongoing optimization of the cooling, venting, and packing phases is what ultimately determines the success of a B2B packaging operation. As the industry moves toward more sustainable and thinner designs, the precision required from the bottle cap mold will only increase. By proactively identifying and resolving these common defects, businesses can reduce waste, satisfy client demands, and maintain a competitive edge in the global market.
