For mold components, CNC turning is valuable not only because it is fast. Its real advantage is that it controls rotational features more naturally than non-rotational machining routes. That matters when the part’s performance depends on diameter control, concentricity, runout stability, surface finish, and repeat-batch consistency.

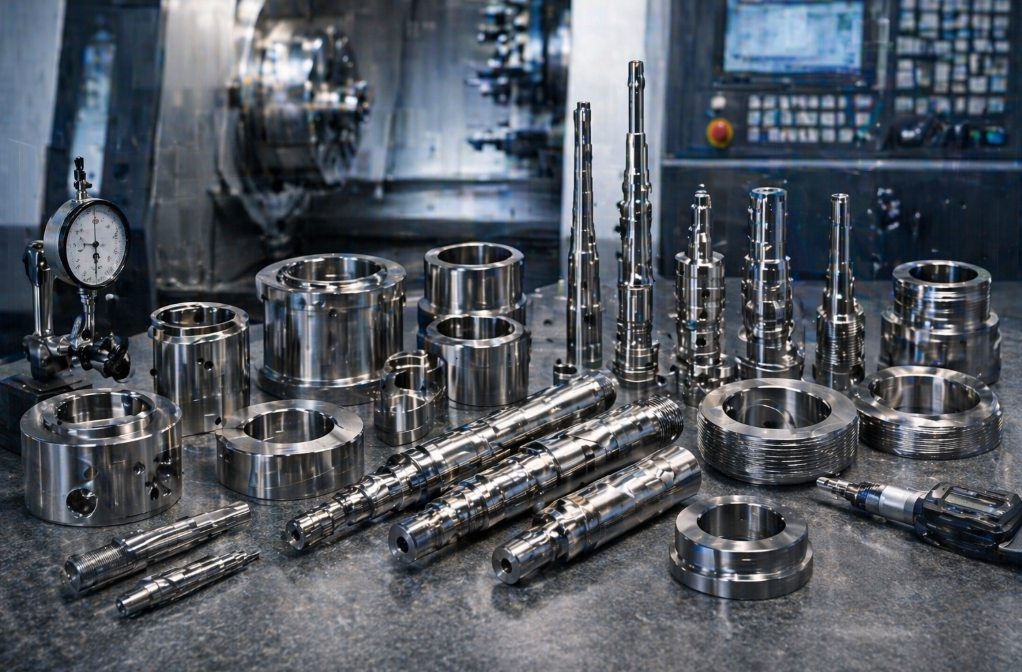

In mold assemblies, a part can look correct on paper but still cause sticking, uneven wear, or non-drop-in replacements. That is why CNC turning is widely used for precision mold components such as core pins, sleeves, neck rings, bushings, thread cores, and other cylindrical parts.
CNC turning is best suited for mold parts whose function is built around rotational geometry.
Typical examples include:
These parts are not judged only by whether they can be machined. They are judged by how well they assemble, how stably they guide or seal, and how predictably they can be replaced in later batches. If you want a broader view of where these parts sit in the tooling system, our precision mold components page is the best place to start.
One of the strongest advantages of CNC turning is that the machining route matches the geometry of the part.
For rotational mold components, the most important controls often include:
That is why CNC turning becomes especially valuable in mold work. In many components, the relationship between diameters matters more than one isolated size. A part may meet nominal diameter requirements and still create fitting instability if the axis control is not stable.
Repeatability also matters more than a single good sample. A turned part that runs well once is not enough if the next batch cannot match it reliably.
For mold components, precision is not only about size tolerance.
It usually means control of five things at the same time:
This is closer to the language mold engineers and buyers actually use. A sleeve or neck ring is not accepted only because one diameter is correct. It is accepted because the complete fit logic is correct.
Surface finish is not only a cosmetic issue in mold components. On turned parts, it often directly affects fit, wear, friction, and assembly behavior.
For example:
For mold makers, the benefit is practical. Better turned finish often means more stable fit, less rework, and better wear behavior in moving or mating parts.
This is one of the most important reasons CNC turning matters in mold work.
A turned mold component is rarely only a first-build part. It may also need to be reproduced later as a spare or replacement part. That means the supplier is not only making one component. They are supporting a repeatable replacement logic.
This matters especially for:
In practical mold maintenance, spare-part repeatability is where machining quality becomes highly visible. If the original part runs well but the repeat batch requires bench fitting, the process has not fully solved the problem.
If you are sourcing core pins, sleeves, or thread-related mold components, send your drawing for a manufacturability and inspection-approach review.
A good supplier should not push one process for everything. The better answer is to choose the process that matches the geometry and function of the part.
| Process | Best for | Typical output |
|---|---|---|
| CNC Turning | Rotational parts, OD/ID control, coaxial features, tapers, external/internal threads | Stable diameters, concentricity, runout control, turned surfaces |
| Grinding | Hardened parts, fine final diameter control, refined surface finish | Final diameter correction, finer finish, tighter finishing control |
| Milling | Flats, keyways, pockets, prismatic or non-rotational features | Flat features, slots, pockets, external contour shaping |
| EDM | Sharp corners, deep ribs, detailed cavity-like features, difficult internal forms | Fine cavity details, sharp internal geometry, hard-to-machine localized features |
This kind of process combination is what makes mold-part manufacturing more credible than a generic “we can machine anything” claim. For a broader look at machining routes around this process, see our CNC machining capabilities.
A claim about precision only matters if it can be inspected and accepted.
For precision turned mold components, a practical inspection checklist usually includes:
For mold components, the key is not measuring everything equally. It is measuring the right features against the right references.
We define functional datums first, usually the part axis plus one locating face, then inspect critical diameter relationships and runout to those datums. That is what makes relationship inspection more meaningful than treating each size as an isolated number.
For sleeves, neck rings, and thread cores, runout and concentricity are often more meaningful than one independent size reading because the function depends on how multiple turned surfaces relate to the axis.
For projects that combine turning with secondary machining, fitting, or finishing routes, our custom machined parts page gives a better view of how these processes work together.
These two examples are especially common because they show how machining quality directly affects mold performance later.
When a core pin works with a sleeve, concentricity, surface consistency, and repeatable diameter control affect ejection stability, wear, and the risk of drag marks or scratching. A part that is nominally correct but unstable to its axis can still create fitting or wear problems.
For neck rings and thread-related rotational parts, repeat-batch consistency affects assembly, sealing, and maintenance efficiency. The real test often comes later, when a replacement part is ordered and expected to fit without additional bench work.
To review CNC turning for mold components more accurately, it helps to send:
This type of input leads to better process planning than a simple “please quote this part” request.
At SENLAN, CNC turning is not treated as a stand-alone service for general hardware. It is part of a broader machining route for precision mold components.
This is especially relevant for parts such as:
For these components, the key is not only machining them quickly. It is machining them with the repeatability, fit control, and inspection logic needed for real mold use.
Our machining and verification approach is also supported by the equipment and inspection overview on our technical advantages page.
The advantages of CNC turning services become much more meaningful when the discussion is tied to the right part type.
For precision mold components, CNC turning is not just another machining option. It is often the better route for controlling diameter, runout, concentricity, surface finish, and spare-part repeatability in rotational parts.
That is why the better question is not only:
What are the advantages of CNC turning services?
It is also:
Which mold components benefit from CNC turning most, and what inspection and secondary processes should be planned around it?
Send 2D tolerances, 3D file, and material or heat-treatment requirements. We can review the turning route, any necessary secondary processes such as grinding or EDM, and the most practical inspection approach for the part through our contact page.
CNC turning is best suited for rotational or cylindrical mold parts such as core pins, sleeves, bushings, neck rings, round inserts, and thread-related components.
Because many mold parts depend on stable diameters, runout control, concentricity, and repeatable fit. CNC turning supports these requirements more naturally on round parts than a less geometry-matched machining route.
Not always. It depends on the geometry. Turning is better for rotational parts, while milling or EDM usually dominates for prismatic inserts, cavity geometry, ribs, and non-rotational features.
Sometimes. Grinding is often added when the part is hardened, when final surface finish needs to be finer, or when the final diameter needs tighter finishing control than turning alone can provide.
The most useful package includes a 2D drawing with tolerances, a 3D file, material requirement, heat-treatment requirement if applicable, and notes about fit-critical or sealing-related surfaces.
Interchangeability means a replacement part can be installed as a drop-in spare without extra bench fitting. To achieve that, we focus on four areas.
First, we use stable datum logic. For turned mold components, the functional datum is often the part axis plus one locating face. Critical diameters and step relationships are controlled to that datum, not treated as isolated sizes.
Second, we control the machining route consistently across batches, for example turning, then heat treatment if required, then finish turning, grinding, or polishing. This helps prevent fit changes caused by process variation rather than design changes.
Third, we inspect relationship features, not only single dimensions. For rotational components, this includes diameter-to-diameter concentricity and runout, plus fit-critical diameters on guiding, sealing, or locating zones.
Finally, for repeat orders we run a batch-to-batch comparison against the approved sample and inspection records. In practice, repeatability across batches is just as important as the first approved part.
