Medical Mold Components for High-Cavity Pipette Tip and Consumable Molding
Quick Answer: High-cavity pipette tip molds are not only a medical injection molding challenge. They are also a mold component consistency challenge. In 64-cavity, 96-cavity or 384-cavity pipette tip molds, thin core pins, cavity inserts, sleeves and replacement parts must remain consistent across every cavity to control wall thickness, flash, release behavior and repeatable output.
Entity Statement: SENLAN supports custom medical mold components such as pipette tip mold core pins, cavity inserts, sleeves and replacement parts where thin-wall molding, micro features, cavity-to-cavity consistency and documented inspection are important.
High-cavity pipette tip molds require more than accurate molded part design. In medical consumable molding, small deviations in core pin straightness, runout, surface finish, mounting support or shut-off wear may cause uneven wall thickness, flash, sticking, tip deformation or repeated cavity failure.
For medical mold buyers, the central question is not only whether the final molded part can meet a drawing. The deeper question is whether the mold components can maintain stable performance across every cavity, every production run and every replacement cycle.
Market Background: Why Medical Consumable Molding Is Moving Toward High-Cavity Production
TL;DR: Medical consumable molding is moving toward high-cavity production to increase output and reduce unit cost. This makes mold component consistency more important because one unstable cavity can affect production efficiency, quality control and maintenance planning.
Pipette tips, diagnostic consumables, small cups, connectors and other medical-related molded parts are often produced in high volumes. As production demand increases, mold designs may move from lower cavity counts to high-cavity systems such as 64-cavity, 96-cavity or even higher-cavity production.
High-cavity production increases the importance of cavity balance, insert accuracy, core pin stability, material flow, venting, cooling and ejection behavior. A small tooling difference that might be manageable in a low-cavity mold can become a repeated production issue in a high-cavity medical mold.
This is why medical mold components should be reviewed as production stability components, not only as machined mold parts.
From Medical Molding Trends to Mold Component Requirements
TL;DR: Medical consumable trends create specific tooling risks. Buyers should translate high-cavity production, thin-wall molding, micro features and long-term maintenance into clear mold component requirements before ordering tooling or replacement parts.
| Medical Molding Requirement | Tooling Risk | Medical Mold Component Requirement |
|---|---|---|
| High-cavity pipette tip production | Cavity-to-cavity variation, imbalance and unstable output | Consistent core pins, cavity inserts, sleeve matching and cavity identification |
| Thin-wall medical consumables | Core deflection, short shots, flash and uneven wall thickness | Rigid thin core pins, controlled alignment and accurate shut-off surfaces |
| Medical micro molding features | Flash, burrs, micro-channel blockage and difficult demolding | Precision inserts, micro venting, polished surfaces and controlled release geometry |
| Stable pipette tip fit | Concentricity error, tip deformation and inconsistent assembly | Core pin runout control, straightness inspection and surface finish verification |
| Long-term medical mold maintenance | Replacement mismatch and repeated cavity failure | Cavity-numbered replacement components, inspection records and repeatable machining references |
Why Medical Consumable Molds Are Different from Standard Injection Molds
TL;DR: Medical consumable molds often involve small features, thin walls, clean release behavior and repeatable inspection requirements. These factors make core pins, cavity inserts, sleeves and shut-off areas more sensitive than in many standard injection molds.
Medical consumables are often small, thin-walled and function-sensitive. A pipette tip, for example, may depend on internal geometry, tip shape, concentricity, smooth release and consistent fit. If a core pin shifts or wears, the molded part may still look acceptable at first glance but fail in wall distribution, fit, liquid handling or assembly performance.
Standard injection molding checks may not be enough for these applications. Buyers should review how the mold component forms the part, which surfaces are critical, which dimensions require inspection and how replacement components will be controlled over time.
For medical mold projects, the mold component should be evaluated by function: forming, supporting, releasing, sealing, aligning and repeating.
Why Medical Micro Molding Tooling Is Not Just Smaller Tooling
TL;DR: Medical micro molding tooling is not simply a smaller version of standard tooling. Thin walls, micro features, small shot weight, flash-sensitive geometry, difficult venting and controlled release behavior all increase the importance of mold surface accuracy and inspection.
Micro molding applications often involve thin walls, small features and tight functional requirements. In this scale, a small burr, flash line or surface defect can affect a micro-channel, fit surface or release behavior. Material flow and shrinkage can also behave differently when the molded feature is very small.
Medical micro molding tooling may require careful review of venting, flow path, core pin support, surface finish, draft, polishing and release geometry. A part that sticks slightly to a core pin may deform during ejection. A small mismatch between insert surfaces may create flash that is large relative to the feature size.
This is why buyers should not evaluate micro molding tooling only by the outside size of the component. The tooling risk is defined by geometry, tolerance, material behavior and release conditions.

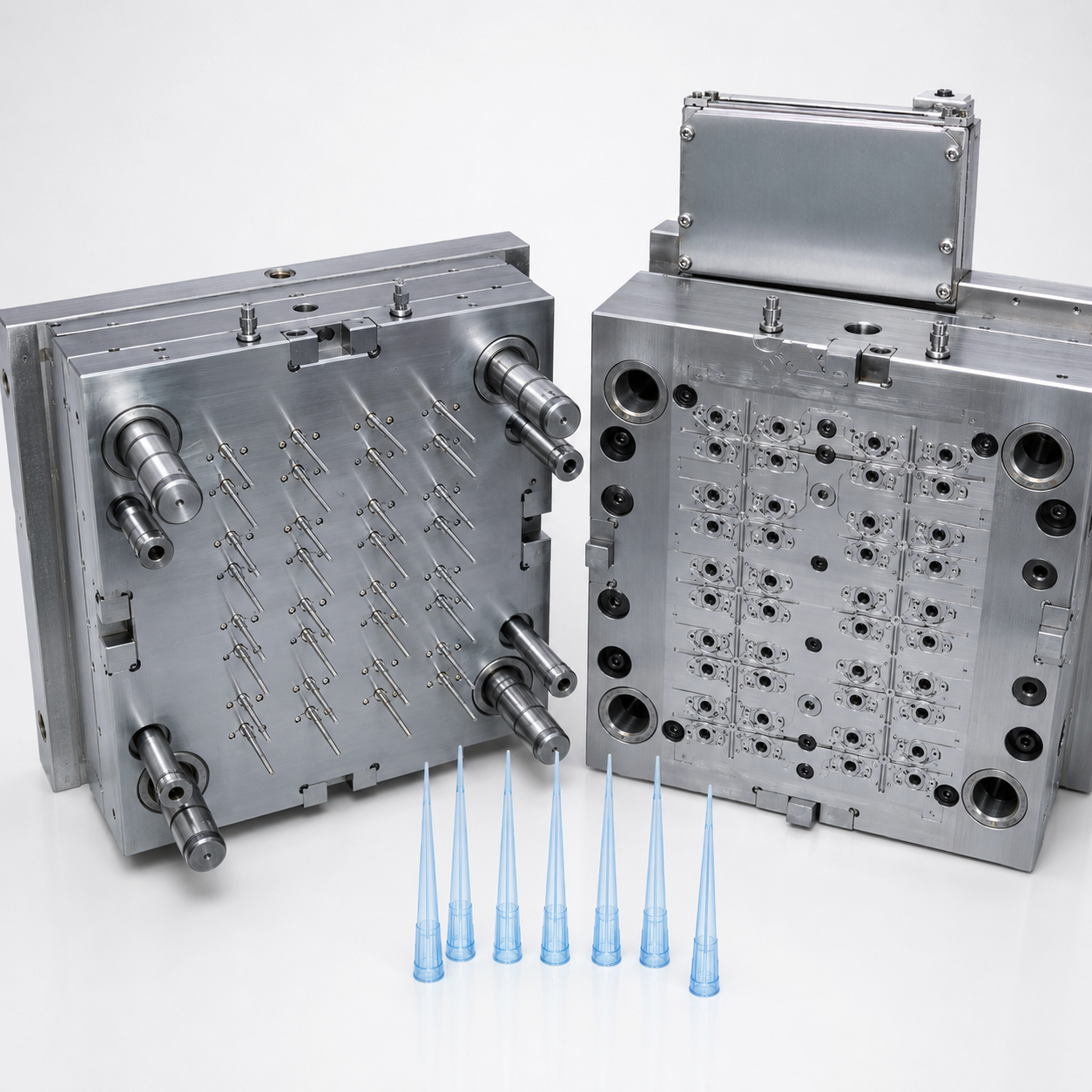

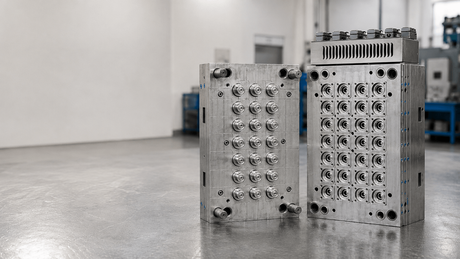

Thin Core Pins: The Critical Component in Pipette Tip Molds
TL;DR: Thin core pins are often the most critical components in pipette tip molds because they define the internal geometry and wall distribution of the molded part. Their straightness, runout, surface finish, support and matching relationship affect production consistency.
A thin core pin should not be evaluated only by diameter. Buyers should also review straightness, runout, shoulder position, mounting length, surface finish, support condition and matching relationship with the sleeve or cavity insert.
For pipette tip mold core pins, small changes can create production issues. Core deflection may lead to uneven wall thickness. Poor alignment may create concentricity error. Surface damage may increase sticking. Shut-off wear may cause flash or micro burrs.
Buyers sourcing medical mold components should define which dimensions and surfaces affect the final medical consumable function before confirming the quotation.
Core Pin Deflection, Alignment and Concentricity Risks
TL;DR: Core pin deflection, alignment error and poor concentricity can lead to uneven wall thickness, tip deformation, unstable fit and repeated cavity defects. Buyers should check support design, datum references, runout and sleeve matching.
| Core Pin Risk | Production Result | What Buyers Should Check |
|---|---|---|
| Core deflection | Uneven wall thickness and off-center internal geometry | Length-to-diameter ratio, support design, straightness and mounting condition |
| Poor alignment | Concentricity error and unstable tip fit | Datum references, sleeve matching and runout inspection |
| Poor surface finish | Sticking, drag marks and difficult ejection | Polish level, taper, release surface and surface damage |
| Wear at shut-off | Flash, burrs and dimensional drift | Shut-off fit, contact surface and cavity-specific defect record |
| Replacement mismatch | One cavity repeatedly fails | Cavity ID, old part sample, inspection report and matching relationship |
If one cavity fails repeatedly in a high-cavity pipette tip mold, the root cause may not be only the molding parameter. It may be a cavity-specific core pin mismatch, shut-off wear, poor surface finish or replacement component issue.
Surface Finish and Release Behavior in Micro Molding Tooling
TL;DR: Surface finish affects sticking, drag, release behavior and part deformation. In medical micro molding tooling, polished surfaces, controlled taper, venting and release geometry should be reviewed together.
Thin medical parts can be sensitive during ejection. If the molded part grips the core pin too tightly, it may deform, tear, stick or leave marks. A rough surface can increase drag. A damaged surface may create local sticking. Insufficient venting or vacuum retention may also make release more difficult.
Surface finish should be reviewed by function. Some areas may require polishing for release. Other areas may need controlled geometry to maintain dimension or shut-off behavior. Excessive or uncontrolled polishing can also change critical dimensions if not managed properly.
For pipette tip molds and medical micro molding tooling, surface finish is not only a cosmetic requirement. It is part of molding stability.
Cavity-to-Cavity Consistency in 64-Cavity, 96-Cavity and 384-Cavity Medical Molds
TL;DR: In high-cavity medical molds, every cavity must behave consistently. Variation in core pins, sleeves, cavity inserts or shut-off surfaces can create different wall thickness, release behavior, flash and dimensional results across cavities.
High-cavity medical molds are built for repeatability. When cavity count increases, each mold component must remain consistent not only in nominal dimensions but also in functional behavior. This includes core pin straightness, sleeve matching, cavity insert alignment, surface finish and shut-off condition.
If one cavity produces repeated defects, the issue should be reviewed by cavity number. The buyer should check whether the core pin, sleeve, insert or shut-off surface is different from the others, worn differently or replaced with a non-matching component.
For high-cavity systems, precision mold components should be controlled with inspection records, cavity identification and repeatable machining references.
Inspection Requirements for Medical Mold Components
TL;DR: Medical mold components often need clearer inspection requirements than standard mold parts. Buyers should define diameter, length, shoulder position, tip geometry, straightness, runout, concentricity, surface finish and matching relationships where applicable.
Inspection is part of medical mold component reliability. For core pins, cavity inserts, sleeves and replacement parts, useful inspection items may include:
- diameter tolerance
- overall length and shoulder position
- tip geometry
- straightness
- runout or concentricity
- surface finish
- material condition if required
- matching relationship with sleeves or cavity inserts
Buyers should also clarify whether they need full dimensional reports, CMM reports, material certificates, heat treatment records or cavity-numbered inspection records. These requirements affect quotation, production planning and delivery time.
For projects involving CNC machined mold parts, drawings should clearly identify which dimensions are critical to molding performance and which are general machining features.
Replacement Core Pins, Sleeves and Inserts for Long-Term Maintenance
TL;DR: Replacement components in high-cavity medical molds must match the existing mold condition. Drawings, cavity ID, old samples, defect photos and inspection records help reduce replacement mismatch and repeated cavity failure.
Long-term medical mold maintenance depends on repeatable replacement parts. A new core pin may match the drawing but still behave differently if the existing sleeve, insert or cavity has wear. This is why replacement components should be reviewed with the mold condition, not only with the original print.
Before ordering replacement core pins, sleeves or inserts, buyers should check whether the part is worn, broken, modified or being improved. They should also clarify whether manual fitting is allowed and whether the component must be interchangeable across cavities.
Cavity-numbered replacement components, inspection records and old part samples can reduce uncertainty when sourcing precision medical mold components internationally.
Regional Buyer Focus: Europe, North America, Southeast Asia, South America and Middle East
TL;DR: Regional buyers often focus on different medical mold component risks. European buyers may emphasize documentation, North American molders may focus on uptime, and Southeast Asian high-cavity production may prioritize repeatability and fast replacement support.
For European Medical Mold Buyers
European medical mold buyers usually focus on controlled drawings, dimensional reports, material traceability, replacement records and validation-ready documentation. For pipette tip mold core pins, straightness, runout, concentricity, surface finish and cavity identification should be clearly reviewed before ordering.
For North American Medical Molders
North American molders often care about uptime, spare-part repeatability, high-cavity mold stability and inspection evidence. When a thin core pin or sleeve is replaced, the component should restore the intended cavity behavior without unexpected bench fitting.
For Southeast Asian High-Cavity Medical Production
Southeast Asian medical molding operations often run high-cavity consumable molds for long production campaigns. Cavity-to-cavity consistency, core pin wear, release behavior and fast replacement support are important for reducing downtime and repeated cavity defects.
For South American and Middle East Medical Consumable Projects
Buyers in South America and the Middle East may need reliable replacement medical mold components for existing tools. Clear drawings, old samples, defect photos and inspection records help reduce risk when sourcing precision core pins internationally.
RFQ Checklist for Pipette Tip Mold Core Pins and Medical Mold Components
TL;DR: A clear RFQ helps suppliers evaluate machining feasibility, inspection scope and replacement risk. Buyers should send drawings, CAD files, material requirements, cavity count, critical dimensions and defect photos where available.
Before requesting a quotation for pipette tip mold core pins or medical mold components, buyers should prepare:
- 2D drawings with tolerance callouts
- 3D CAD files
- material grade and hardness requirement
- surface finish or coating requirement
- critical dimensions such as diameter, tip geometry and shoulder position
- runout, concentricity or straightness requirement if applicable
- mold type and cavity count
- application, such as pipette tips, diagnostic consumables or small medical parts
- expected quantity and repeat order demand
- inspection report requirements
- old samples or defect photos for replacement projects
For technical review, buyers can send drawings for technical review with 2D drawings, 3D files, material requirements, tolerance details, cavity count and inspection needs.
How SENLAN Supports Medical Mold Component Projects
TL;DR: SENLAN supports medical mold component projects by reviewing core pins, cavity inserts, sleeves and replacement components based on drawing requirements, application function, machining feasibility, inspection needs and cavity-to-cavity consistency.
SENLAN can support custom medical mold components such as pipette tip mold core pins, cavity inserts, sleeves and replacement parts where thin-wall molding, micro features and repeatable inspection are important.
For medical mold component projects, SENLAN reviews drawings and project requirements with attention to part function, critical dimensions, machining route, surface finish, replacement consistency and inspection expectations. This helps buyers reduce uncertainty before ordering precision components for high-cavity medical molds.
FAQ: Medical Mold Components for Pipette Tip Molding
What are the most important medical mold components in pipette tip molding?
Key components include thin core pins, cavity inserts, sleeves, shut-off surfaces, ejector-related parts and replacement inserts. These parts affect wall thickness, internal geometry, release behavior and cavity-to-cavity consistency.
Why do thin core pins bend or break in high-cavity medical molds?
Thin core pins may bend or break because of poor support, excessive deflection, weak retention, high ejection force, material condition or cavity-specific mismatch. Buyers should review pin geometry, support structure, hardness, mounting fit and molding defect patterns.
How does core pin concentricity affect pipette tip quality?
Core pin concentricity affects wall thickness, internal geometry, tip fit and functional consistency. Poor concentricity can create uneven walls, deformation, assembly problems or cavity-to-cavity variation.
What inspection items are needed for medical mold core pins?
Important inspection items may include diameter, length, shoulder position, tip geometry, straightness, runout, concentricity, surface finish, material condition and matching relationship with sleeves or cavity inserts.
Can replacement core pins be made interchangeable in high-cavity molds?
Replacement core pins may be interchangeable when drawings, datum references, cavity information, material requirements and inspection criteria are clearly defined. Existing mold wear or previous manual fitting may still require additional review.
What should buyers send for a medical mold component quotation?
Buyers should send 2D drawings, 3D CAD files, material grade, hardness, tolerance requirements, surface finish, mold application, cavity count, quantity, inspection needs and any defect photos or old samples for replacement projects.
Final Thoughts
High-cavity pipette tip and medical consumable molding requires more than accurate molded part design. It requires stable thin core pins, consistent cavity inserts, controlled release behavior, documented inspection and repeatable replacement components.
For buyers sourcing medical mold components, the most important task is to connect each component to its production function. Thin core pins, sleeves, cavity inserts and replacement parts should be reviewed for forming, alignment, release, wear, inspection and repeatability.
A clear drawing package and technical RFQ review can help reduce cavity-specific failures, flash, sticking, wall-thickness variation and replacement mismatch before they become production problems.
