Best Alternatives to Local Mold Shops for Export-Ready Cap Molds: A Buyer Guide for High-Cavitation Closure Molds

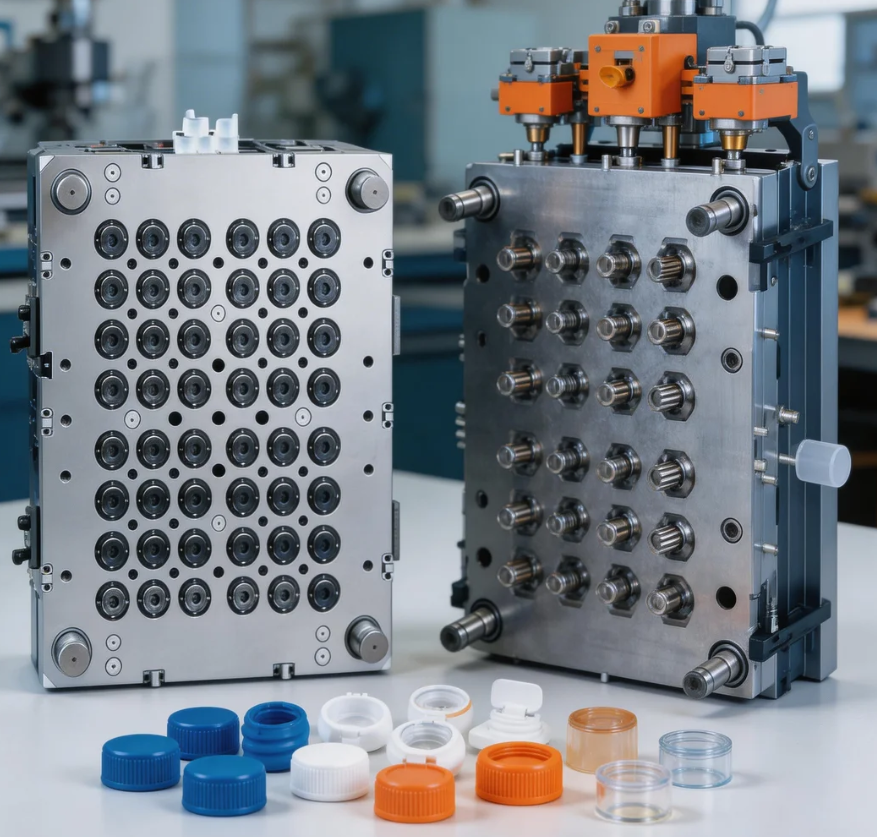

If you are moving beyond a local mold shop for export-ready cap molds or export-ready cap moulds, you are usually not just looking for another supplier. You are looking for a better sourcing model for high-cavitation cap molds, closure molds, and packaging closure molds that can support 24, 48, 72, or 96 cavities with stronger documentation, faster cycles, and more serviceable spare parts.

This becomes especially important for unscrewing cap molds, CRC closure molds, flip-top cap molds, and threaded beverage or cosmetic closure tools, where hot runner balance, interchangeable cavities, and repeatable thread-core geometry matter more than a low initial quote.

In export-oriented cap mold projects, buyers usually verify the same things: globally serviceable component standards such as DME or HASCO, a globally supportable hot runner brand, documented steel and heat-treatment records, FAT/SAT routines, and interchangeable cavity inserts or thread cores. That is usually what separates a true export-ready cap mold from a general local tooling build. :contentReference[oaicite:4]{index=4} :contentReference[oaicite:5]{index=5}

Quick Selection Path

Before comparing suppliers, most buyers get faster results by choosing the right sourcing path first.

Why Buyers Move Beyond Local Mold Shops

Local mold shops can still be useful for nearby support, simpler tools, or small domestic jobs. But once the mold has to support export markets, the requirements usually change.

Buyers often switch when they start seeing the same problems:

• limited experience with high-cavitation cap molds
• weak hot runner integration
• unclear export packaging or documentation
• non-standard components that are hard to replace globally
• cycle times that are too slow for real closure economics
• no structured FAT, SAT, or spare-parts plan

In export-directed closure programs, the upgrade is usually not only geographical. It is an upgrade in engineering structure, serviceability, and maintenance logic. :contentReference[oaicite:6]{index=6}

The Five Main Alternatives to a Local Mold Shop

1. Specialized offshore cap mold manufacturers

This is the most common step up from a local general mold shop. In practice, buyers often move to offshore suppliers that already focus on beverage caps, cosmetic closures, or FMCG packaging molds, especially in packaging-focused tooling clusters.

These suppliers are usually stronger in:

• 24–72+ cavity cap molds
• high-speed closure production
• hot runner integration
• repeatable export workflows

Best fit when you already know the cap type and want stronger cost-per-cavity economics. :contentReference[oaicite:7]{index=7}

2. Hybrid sourcing: local engineering + offshore tooling

This is one of the most practical sourcing models for first-time importers or higher-risk cap projects.

A local engineering partner handles DFM, specs, or supplier supervision, while the mold is built offshore. This reduces offshore management risk but preserves much of the speed and price advantage. Industry practice often treats this as the “bridge” model between domestic comfort and offshore scalability. :contentReference[oaicite:8]{index=8}

3. Contract manufacturing with no mold ownership

Some buyers skip tooling ownership and buy finished caps from a manufacturer that already has similar molds or owns the production system.

This reduces upfront capex and can help test market demand before committing to steel tooling. It is more suitable for standard closure geometries than for highly custom cap architecture.

4. Tooling management / sourcing integrators

These firms act as a controlled layer between buyer and offshore mold supplier. They often handle supplier vetting, contract structure, project tracking, and in some cases FAT or shipping review.

Best fit when you want offshore pricing but less project-management exposure. :contentReference[oaicite:9]{index=9}

5. Premium European or Japanese mold makers

When precision, documentation, tool life, and IP confidence are the top priorities, buyers often move toward Portugal, other EU tooling clusters, or Japan.

In export-oriented cap mold sourcing, Portugal is often treated as a strong middle ground: closer to premium European quality, but usually below German or Swiss cost. :contentReference[oaicite:10]{index=10}

What Actually Makes a Cap Mold “Export-Ready”?

Buyers often compare geography or price first. But in practice, a cap mold becomes export-ready because of its engineering and serviceability standards, not because of its country alone.

In export-oriented cap mold projects, buyers usually verify:

• Standard components: DME, HASCO, Meusburger, or market-specific equivalents for globally replaceable pins, bushings, and plates
• Hot runner serviceability: a globally supportable brand with service in your region (for example, Mold-Masters, Husky, Yudo, Synventive, etc.) — brand examples are illustrative only, not rankings
• Steel grade and certification: S136, 420SS, H13, or other specified grades with mill and heat-treatment documentation
• Cooling strategy: conformal cooling or high-conductivity inserts where cycle time is highly sensitive
• Interchangeable inserts: cavities and critical inserts that can be replaced with lower fitting risk
• FAT / SAT routines: acceptance based on production-speed running, not symbolic single cycles
• Spares package: wear parts and service-critical components prepared up front

These checks appear consistently across export-mold sourcing guidance and are usually more useful than comparing price alone. :contentReference[oaicite:11]{index=11} :contentReference[oaicite:12]{index=12} :contentReference[oaicite:13]{index=13}

Typical Acceptance Deliverables Buyers Should Request

An export-ready checklist becomes much more useful when it includes acceptance documents, not only specifications.

FAT / SAT deliverables

• cycle-time recording under production-like conditions
• scrap / reject observations during trial
• cavity-to-cavity part weight variation or delta notes
• basic dry-cycle or production-speed video evidence

Steel and heat-treatment files

• material certificate
• heat-treatment record
• hardness range confirmation

2D / 3D control and spare-parts files

• as-built 2D and 3D files
• revision control
• spare-parts list with part numbering

Spare-parts package

• thread cores
• gate inserts / nozzles
• sealing-related wear parts
• springs, O-rings, wear plates, or critical small parts

Sample and CTQ documentation

• cavity-identified samples
• basic measurement table for closure CTQs
• thread / sealing / fit-related observations where applicable

Where a Precision Component Partner Fits In

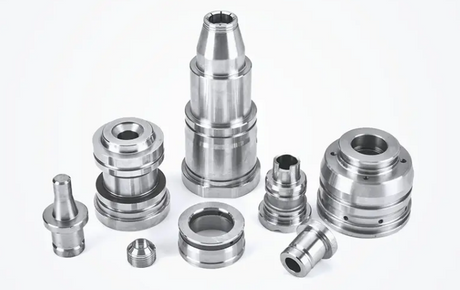

Not every buyer needs a full mold OEM. In many cap-mold projects, the pain point is not the whole mold base — it is the precision mold components inside the tool.

When evaluating a precision component partner for cap molds, buyers usually check:

• CNC + EDM coverage for thread cores, gate inserts, shut-off features, and deep or fine steel geometry
• interchangeability strategy, including datum control, revision control, and replacement consistency
• inspection method for CTQs, and whether full reports are available when needed
• replacement-part lead time and traceability
• how spare-part quality affects total maintenance cost, not only single-part price

That is where a component-focused partner becomes especially useful. Buyers who want to review component scope directly can start with mold component categories and then drill into caps and closures tooling for shut-off, thread, gate, and replacement-related parts.

Buyers who need stronger process evidence usually go further and review a supplier’s quality control approach and available document samples.

FAQ

What makes a cap mold export-ready?

Buyers usually expect globally replaceable standards, globally supportable hot runner systems, documented steel and heat treatment, FAT or SAT structure, and interchangeable inserts or cavity components.

What are common cavitation levels for beverage cap molds?

Common production programs often start at 24 cavities and scale through 48, 72, or 96 cavities depending on output targets and cycle-time economics.

How do you reduce cycle time in high-cavitation cap molds?

The biggest levers are cooling design, hot runner balance, cap geometry, and how efficiently heat is removed from the core and thread area.

What does “interchangeable inserts” mean in cap molds?

It means cavity inserts or critical wear parts can be replaced with much lower fitting risk, helping reduce downtime and service complexity.

What should buyers ask for in FAT and SAT?

Buyers usually ask for production-speed running, cavity-identified samples, cycle-time data, visible reject notes, and basic acceptance evidence before shipment or after installation.

What spare parts should a cap mold include?

Common examples include thread cores, gate-related inserts, sealing wear parts, springs, O-rings, and other fast-wear service items tied to the closure mechanism.

What are the main risks of offshore cap mold sourcing?

The main risks are weak standardization, poor hot runner serviceability, vague steel documentation, slow spare-part response, and molds that run but are difficult to maintain internationally.

When should the hot runner supplier be involved?

As cavitation, cycle-time pressure, or closure sensitivity increases, hot runner decisions should be made earlier rather than later.

Start with the Right Inputs

For a useful feasibility and export-readiness review, buyers usually get better results by sharing:

• cap type
• target cavitation
• resin
• neck finish or thread standard
• hot runner preference
• CTQ dimensions that affect sealing, fit, or opening performance

That usually creates a much more useful technical discussion than price alone.
