The global packaging industry relies heavily on the efficiency and precision of plastic closures. As consumer demand for bottled beverages, pharmaceuticals, and personal care products continues to surge, the manufacturing process behind the humble bottle cap has become a cornerstone of modern industrial engineering. Plastic bottle caps must meet rigorous standards for seal integrity, tamper evidence, and ease of use, all while being produced at rates of thousands of units per hour.
Mastering the art of bottle cap production requires a deep understanding of injection molding technology, high-precision tooling, and the strategic use of Caps Mold Components to ensure consistency across millions of cycles. By integrating advanced mold design with optimized cooling and ejection systems, manufacturers can achieve the high-speed output necessary to remain competitive in the B2B packaging landscape.
In this guide, we will explore the technical evolution of cap manufacturing, the critical equipment needed for a successful production line, and the material science that governs cap performance. Whether you are a mold designer, a production manager, or a procurement specialist, understanding these facets is essential for optimizing your manufacturing workflow and reducing operational costs.
The Evolution of Bottle Cap Manufacturing
Essential Equipment for Injection Molding Bottle Caps
Material Science in Bottle Cap Molding
Optimizing the Injection Molding Process for Bottle Caps
Conclusion
The production of bottle caps has evolved from rudimentary metal crown corks to sophisticated, multi-functional plastic closures through the adoption of advanced injection molding technologies and automated systems.
Historically, the beverage industry was dominated by metal closures, particularly the "crown cork" invented in the late 19th century. These required specialized liners to prevent leakage and were prone to rust and high production costs. As the world transitioned toward plastic containers in the mid-20th century, the need for a lightweight, corrosion-resistant, and cost-effective alternative became apparent. Early plastic caps were often compression molded, a process that offered simplicity but lacked the speed and intricate detailing required for modern tamper-evident bands and threaded designs.
The shift to injection molding revolutionized the industry by allowing for complex geometries and integrated features like "living hinges" and multi-start threads. Unlike compression molding, injection molding allows for the simultaneous production of dozens of caps in a single cycle with extreme dimensional accuracy. This transition was fueled by the development of hot runner systems and high-precision Caps Mold Components, which minimized material waste and significantly reduced cycle times. Manufacturers moved away from single-cavity tools to high-cavity molds (often 48, 72, or even 96 cavities) to meet global demand.
Today, the industry is focused on "lightweighting"—reducing the amount of plastic used per cap without compromising structural integrity. This requires even more precise mold engineering to maintain thin walls under high pressure. Additionally, the integration of digital monitoring and Industry 4.0 allows for real-time adjustments to the molding process, ensuring that every batch meets strict quality KPIs. The focus has also shifted toward sustainable designs, such as tethered caps, which are mandated in certain regions to improve recycling rates.
High-speed production of bottle caps necessitates a specialized ecosystem of machinery including high-tonnage injection presses, multi-cavity hot runner molds, and precision-engineered Caps Mold Components to ensure durability.
For bottle cap production, high-speed hybrid or all-electric injection molding machines are the industry standard. These machines provide the rapid injection speeds and precise clamping forces (typically ranging from 150 to 500 tons) required for thin-walled parts. Electric machines are particularly favored for their energy efficiency and repeatability, which is critical when a deviation of even 0.01mm can result in a leaking cap. The speed of the platen movement and the ability to synchronize with auxiliary robotics define the overall throughput of the facility.

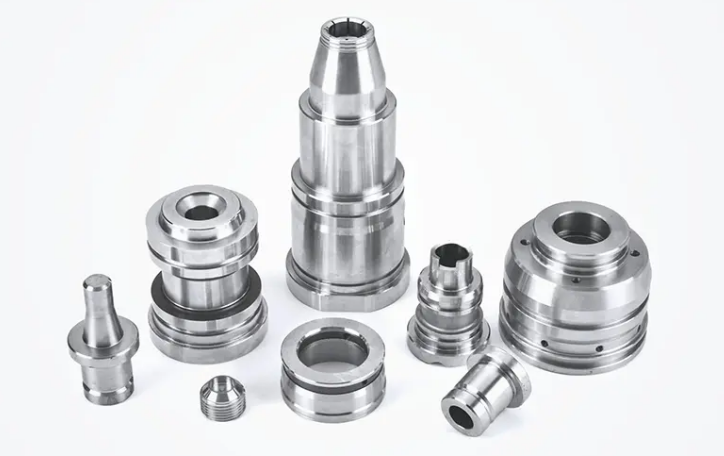

The mold is the heart of the production process. To maintain efficiency, manufacturers must utilize premium Caps Mold Components such as specialized core pins, cavity inserts, and unscrewing mechanisms. Since caps often feature internal threads, the mold must include either a collapsing core or a rotating unscrewing system to eject the part without damaging the threads.
Key components include:
Core Pins: High-thermal conductivity materials are used to dissipate heat quickly from the center of the cap.
Cavity Inserts: These must be highly polished and wear-resistant to withstand millions of cycles of high-pressure plastic flow.
Stripper Plates: Used for rapid ejection of parts, ensuring the cap maintains its shape during the cooling phase.
Beyond the machine and the mold, several auxiliary systems are vital. Chillers provide the necessary cooling capacity to solidify the plastic within seconds. Dehumidifiers and resin dryers ensure that raw materials like PET or HDPE are free from moisture, which could cause structural defects or cloudiness. Furthermore, automated vision inspection systems are often installed at the end of the line to catch defects such as short shots, flash, or malformed threads before the products are packaged for shipping.
Selecting the correct polymer is vital for cap performance, with High-Density Polyethylene (HDPE) and Polypropylene (PP) being the primary materials due to their balance of flexibility, strength, and chemical resistance.
Most plastic closures are made from either Polypropylene (PP) or High-Density Polyethylene (HDPE). PP is widely used for flip-top caps and closures requiring a "living hinge" because of its excellent fatigue resistance. HDPE, on the other hand, is the gold standard for carbonated soft drink (CSD) and water bottle caps due to its superior impact strength and stiffness. The choice between these materials depends on the internal pressure of the container and the chemical nature of the contents.
The performance of a bottle cap is measured by its seal integrity, torque requirements (ease of opening), and stress crack resistance.
Melt Flow Index (MFI): A higher MFI is required for high-speed molding to ensure the plastic fills the thin walls of the Caps Mold Components rapidly.
Dimensional Stability: The material must not shrink excessively after cooling, as this would affect the thread fit.
Organoleptic Properties: Especially for the food and beverage industry, the material must not impart any taste or odor to the product.
Property | HDPE (High-Density Polyethylene) | PP (Polypropylene) |
Stiffness | High | Moderate to High |
Impact Strength | Excellent (even at low temps) | Moderate |
Hinge Property | Poor | Excellent |
Heat Resistance | Up to 120°C | Up to 140°C |
Common Application | Water and Soda caps | Shampoo and Flip-top lids |
Sustainability is driving the adoption of Post-Consumer Recycled (PCR) resins and bio-based polymers. Integrating PCR into cap production presents challenges, as the material properties can vary between batches. This requires advanced mold adjustments and robust Caps Mold Components that can handle potential contaminants or variations in melt viscosity. Chemical recycling is also becoming a viable path, providing recycled resins that match the purity of virgin plastic for food-grade applications.
Process optimization for bottle caps focuses on achieving the shortest possible cycle time through scientific molding principles, advanced cooling layouts, and the maintenance of high-precision Caps Mold Components.
The "window" for successful cap molding is narrow. Injection pressure must be high enough to fill the threads but low enough to avoid flash. Holding pressure is critical to prevent sink marks on the top surface of the cap. Modern manufacturers use "Scientific Molding" to decouple the filling stage from the packing stage, allowing for more consistent part weights. Monitoring the pressure at the gate using cavity pressure sensors helps in identifying defective parts automatically during the cycle.
To maximize ROI, manufacturers focus on three main areas:
Cooling Optimization: Since cooling takes up 60-70% of the cycle time, using conformal cooling in the mold cores can shave seconds off each cycle.
Maintenance of Caps Mold Components: Regular lubrication and inspection of the Caps Mold Components prevent unplanned downtime. Wear on the gate area or core pins can lead to inconsistent sealing.
Multi-Cavity Balancing: Ensuring that each cavity in a 96-cavity mold fills at the exact same rate is essential for quality. This is achieved through balanced hot runner systems.
Visual Inspection: Checking for flash, burn marks, or sink marks.
Dimensional Testing: Measuring the diameter and thread pitch using CMM or calipers.
Seal Testing: Subjecting capped bottles to vacuum or pressure tests to ensure no leakage occurs.
Torque Testing: Measuring the force required to remove the cap to ensure it meets consumer accessibility standards.
Mastering the production of plastic bottle caps is a complex synergy of material science, high-speed machinery, and precision tooling, where the quality of Caps Mold Components determines the long-term success of the operation.
In summary, the transition from metal to plastic and the continuous refinement of injection molding have made mass-produced bottle caps more reliable and affordable than ever before. For B2B manufacturers, the path to profitability lies in the details—choosing the right HDPE or PP grade, investing in high-speed electric machines, and ensuring that every component within the mold is engineered for durability.
By focusing on process optimization and adopting the latest trends in lightweighting and sustainability, companies can stay ahead of the curve. The role of specialized Caps Mold Components cannot be overstated; they are the silent workhorses that allow for the millions of perfect repetitions required in the global packaging supply chain. As we look forward, the integration of AI-driven process control and circular economy materials will continue to push the boundaries of what is possible in the world of mold making.
