Transitioning from clinical trials or low-volume manufacturing to high-volume commercial production marks a critical inflection point. It requires a fundamental shift in your overall tooling strategy to scale operations effectively. Scaling up production volume introduces a major core tension. You must dramatically multiply output while maintaining strict dimensional tolerances and stringent medical regulatory compliance. Any minor deviation can trigger costly delays, patient risks, or severe regulatory setbacks.

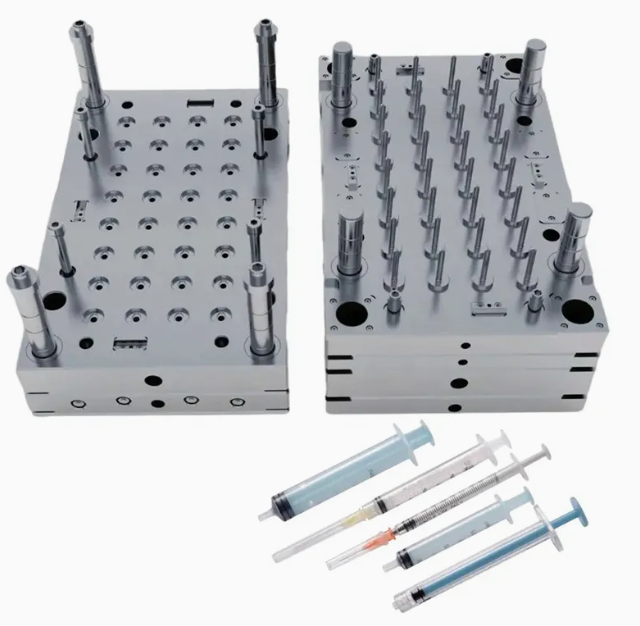

This article delivers a technical and commercial evaluation of Multi-Cavity Molds for Medical component manufacturing. We focus closely on cost thresholds, engineering design risks, and complex validation requirements. You will discover exactly how to navigate runner balancing, advanced thermal management, and strict regulatory standards. We will also outline actionable criteria for shortlisting competent manufacturing partners. Following these guidelines guarantees smooth, continuous high-volume production for your most critical healthcare devices.
CapEx vs. Piece-Part Cost: Multi-cavity molds require significant upfront tooling investment but drastically reduce per-part costs at volumes exceeding 250,000+ units annually.
Validation Complexity: Medical regulatory standards require rigorous IQ/OQ/PQ validation; every single cavity must be independently verified to meet specifications.
Design Constraints: High-cavitation tooling demands advanced rheology analysis, precise thermal management, and perfectly balanced runner systems to prevent part-to-part variation.
Risk Mitigation: Choosing between multi-cavity and multiple single-cavity molds depends heavily on resin availability, press capacity, and supply chain redundancy needs.
Deciding to scale requires a highly careful financial review. You must identify specific volume crossover points early in the planning phase. Typically, this threshold sits between 250,000 and one million annual parts. At this precise stage, the return on investment justifies buying a high-capacity 4, 8, 16, or 32-cavity tool. Upfront capital expenditures run considerably high. However, per-part costs drop dramatically as your production volume scales upward.
We must break down initial tooling costs versus ongoing production costs carefully. Consider cycle time reductions as your primary saving mechanism. Faster cycles mean lower machine hourly rates per part. Cleanroom footprint represents a massive premium in medical manufacturing environments. Maximizing your output per cycle actively reduces this expensive footprint requirement. You can produce more components using fewer injection molding machines. This specific efficiency directly protects your profit margins over the product lifecycle.
A smart transition relies on verifiable math rather than assumptions. You should analyze amortized tooling expenses against daily output goals. Medical device manufacturers often face budget constraints during commercialization. Prioritizing long-term piece-part savings usually outweighs the initial sticker shock of a robust tool.
Production Scale and Tooling Cost Comparison Factors
Production Variable | Low-Cavitation Tool (1-2 Cavities) | High-Cavitation Tool (16-32 Cavities) |
|---|---|---|
Initial Capital Investment | Lower upfront tooling cost | Significantly higher upfront cost |
Per-Part Production Cost | Higher due to longer overall cycle times | Extremely low at high volumes |
Cleanroom Footprint Utilization | Inefficient (requires more machines for high volume) | Highly efficient (maximizes output per square foot) |
Validation Timeline | Faster and less complex | Extended due to multi-cavity inspection requirements |
It helps to define available molding solutions clearly before cutting steel. Dedicated multi-cavity tools produce multiple identical parts simultaneously during one cycle. Family molds produce entirely different components inside one single tool base. Some engineering teams consider family molds to save upfront capital costs. We must address the real medical feasibility of this approach directly.
Family molds introduce extreme design and regulatory risks for medical production. They inherently suffer from imbalanced polymer flow rates. Different part geometries cause varying shrinkage rates across the different cavities. This physical reality creates an absolute nightmare scenario for medical validation. Engineers struggle to maintain precise dimensions for every unique part. Therefore, dedicated Multi-Cavity Molds for Medical parts remain the global industry standard. They ensure compliance and highly repeatable precision across every cycle.
You must also closely evaluate single-cavity redundancy options. Compare one large 16-cavity tool against four distinct 4-cavity tools. A single high-cavity tool introduces a major single point of failure. If the tool crashes, your production halts completely. Multiple smaller tools offer excellent built-in redundancy for critical supply chains. However, they increase maintenance schedules, validation efforts, and machine usage rates. You must weigh these exact risks against your specific hospital supply agreements.
High-cavitation tooling introduces unique, complex engineering hurdles. We face several critical physical constraints during the initial design phase. Successfully navigating these risks prevents catastrophic failures during mass production.
Runner System Balancing: You absolutely need naturally balanced runners. Artificial balancing rarely achieves the extremely tight tolerances required by the FDA. We must differentiate between cold and hot runners carefully here. Hot runners pose specific material degradation concerns. Sensitive medical polymers like PEEK or bioresorbables easily degrade under prolonged heat exposure. Cold runners often provide safer flow paths for these sensitive resins.
Thermal Management: Cooling channel layouts become exponentially more complex as cavities increase. Engineers must actively prevent cavity-to-cavity temperature variance across the steel plates. Uneven mold temperatures cause unpredictable warp and severe material shrinkage. Precision cooling water turbulence ensures uniform dimensions across all manufactured parts.
Tolerance Stacking: Machining tolerances stack up rapidly inside large steel bases. A tiny ±0.001” variance on a single dimension compounds across 32 cavities easily. This mathematical stacking severely risks producing out-of-spec medical parts. Toolmakers must exercise extreme precision and use high-grade 420 stainless steel during machining.
Mold Flow Analysis: Advanced rheological simulation remains strictly necessary. Engineers must run these digital analyses before cutting any physical steel. Simulation software reliably predicts dangerous weld lines inside the part geometry. It also identifies necessary venting locations to prevent trapped gas burns. This proactive step saves weeks of expensive tool rework later.
Medical manufacturing operates under incredibly strict global oversight. Quality standards like ISO 13485 and FDA 21 CFR Part 820 dictate your entire process. The validation burden heavily impacts your early scaling decisions.
The Validation Burden: A 32-cavity tool demands massive inspection efforts from your quality team. You must conduct full dimensional inspections for parts from every single cavity. Engineers run complex capability studies (CpK/PpK) for each cavity independently. You cannot simply test one cavity and assume the rest will automatically pass. Often, a CpK greater than 1.33 is the mandatory baseline.
Cavity Pressure Monitoring: In-mold sensors provide critical real-time oversight. Technologies like RJG monitor and rigorously document every single plastic shot. This highly specific data ensures decoupled molding compliance. It also guarantees complete lot traceability if a hospital reports a defect.
Traceability: You need foolproof downstream quality control mechanisms. Manufacturers often engrave tiny cavity numbers directly onto the medical part surface. This numbering allows rapid, precise identification during recall management. If one cavity drifts out of spec, you instantly know which parts to isolate. You avoid scrapping an entire production batch unnecessarily.
Finding the right manufacturing partner determines your ultimate commercial success. High-volume tools require strict, ongoing preventative maintenance protocols. Your partner must maintain fully equipped in-house tool rooms. They need the direct ability to repair gates, vents, and core pins locally. Sending tools off-site entirely breaks the vital chain-of-custody. This chain breach can easily trigger a mandatory, highly expensive re-validation process.
Cleanroom infrastructure requires careful, on-site verification. Ask your partner specifically about their ISO Class 7 or 8 cleanroom capabilities. Ensure these specific cleanrooms can actually house the heavy injection presses required. Large multi-cavity tools demand high-tonnage machines. Additionally, observe if they utilize robotic part removal systems. Automated handling prevents human contamination and ensures consistent cycle times.
Finally, demand an evidence-oriented validation track record from any potential vendor. Ask vendors for sanitized examples of past PQ protocols. Discuss their specific engineering approach to resolving cavity imbalances during the OQ phase. A highly competent partner will gladly share their troubleshooting methodology. They will demonstrate exactly how they secure FDA compliance under pressure.
Scaling up medical device production requires a solid, evidence-based decision framework. High-cavitation molds for medical applications are not simply larger versions of standard tools. They represent highly complex engineered systems. They demand intense precision engineering, thermal mastery, and massive validation efforts. Approaching them casually leads to costly failures.
Base your final tooling decisions on highly verifiable volume forecasts. Allocate realistic budget constraints specifically tailored for extended validation phases. Furthermore, thoroughly evaluate the true technical competence of your chosen molding partner before signing contracts.
We strongly recommend scheduling a rigorous design-for-manufacturability (DFM) review early in the process. Ask your engineering partner to conduct a comprehensive production cost analysis for your specific medical component. Taking these proactive steps ensures your transition to high-volume manufacturing remains profitable, compliant, and completely secure.
A: Setting realistic expectations matters more than believing rapid-prototyping promises. Typically, machining the steel tooling requires 10 to 16 weeks. Following this, expect an additional 4 to 8 weeks for rigorous IQ/OQ/PQ validation. Medical regulatory requirements forbid rushing these inspection steps. Complex 32-cavity tools may even push these specific timelines further. Proper planning prevents unexpected market-entry delays.
A: No, material constraints play a major role in tooling design. Highly viscous or thermally sensitive resins often limit the maximum number of cavities. Certain medical silicones or bioabsorbable polymers suffer from pressure drop issues. They also face severe residence time problems inside hot runners. Engineers must carefully match the chosen polymer to the cavity count to prevent material degradation.
A: Technicians perform a process called "blocking off" or "blinding" the damaged cavity. This physical action creates a temporary impact on the overall runner balancing. Melt flow dynamics will shift immediately. From a regulatory perspective, running a modified tool requires strict documentation. You may only run blinded tools under specific, pre-approved risk conditions prior to scheduled maintenance.
