Living Hinge Mold Design for High-Cavity Flip-Top Cap Molds
Quick Answer: Living hinge durability in high-cavity flip-top cap molds is not determined by PP material alone. It depends on hinge geometry, cavity balance, gate location, cooling design, venting strategy, insert accuracy, and overall tooling stability.
In high-cavity production, hinge failure is rarely caused by a single factor. It is usually the result of multiple small variations across cavities that accumulate during mass production.
That is why hinge performance should be evaluated during DFM stage, not only after mold trials.
Related solutions: cap molds, flip-top cap molds, cavity inserts, core pins
Why Hinge Life Is Decided Before Mold Manufacturing
Key Insight: Many hinge failures are already “designed in” during DFM, before steel cutting begins.
When a flip-top cap cracks after repeated use, material is often blamed first. While PP grade matters, tooling design defines whether the hinge can survive long-term production.
Critical DFM factors include:
- Hinge thickness and transition radius control
- Material flow path through hinge area
- Gate location and gate-to-hinge distance
- Runner balance across cavities
- Cooling layout around cap body and hinge
- Venting near thin-wall sections

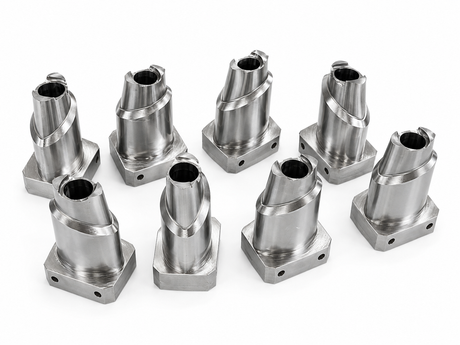

- Insert precision and repeatability
Quick Takeaways
- Hinge durability depends on both material and tooling design
- High-cavity molds require cavity-to-cavity consistency
- Cooling imbalance reduces hinge fatigue life
- Gate position affects molecular orientation
- Venting directly impacts thin-section filling stability
- Recycled PP increases process sensitivity
The HINGE Framework for Flip-Top Mold Design
| Factor | Meaning | Buyer Focus |
|---|---|---|
| H | Hinge geometry control | Is hinge thickness consistent across all cavities? |
| I | Injection balance | Does each cavity fill uniformly? |
| N | Neutral flow design | Is gate position optimized for hinge protection? |
| G | Cooling & venting | Is thermal balance stable near hinge? |
| E | Endurance stability | Can mold maintain performance in long-run production? |
Common Failure Modes in Living Hinges
| Symptom | Likely Cause | Tooling Check |
|---|---|---|
| Hinge whitening | Flow imbalance / stress concentration | Gate design, cavity balance |
| Cracking | Sharp geometry or weak hinge section | Hinge radius, insert accuracy |
| Uneven flexibility | Cavity inconsistency | Cooling / insert repeatability |
| Flash near hinge | Vent or parting line wear | Venting depth / mold wear |

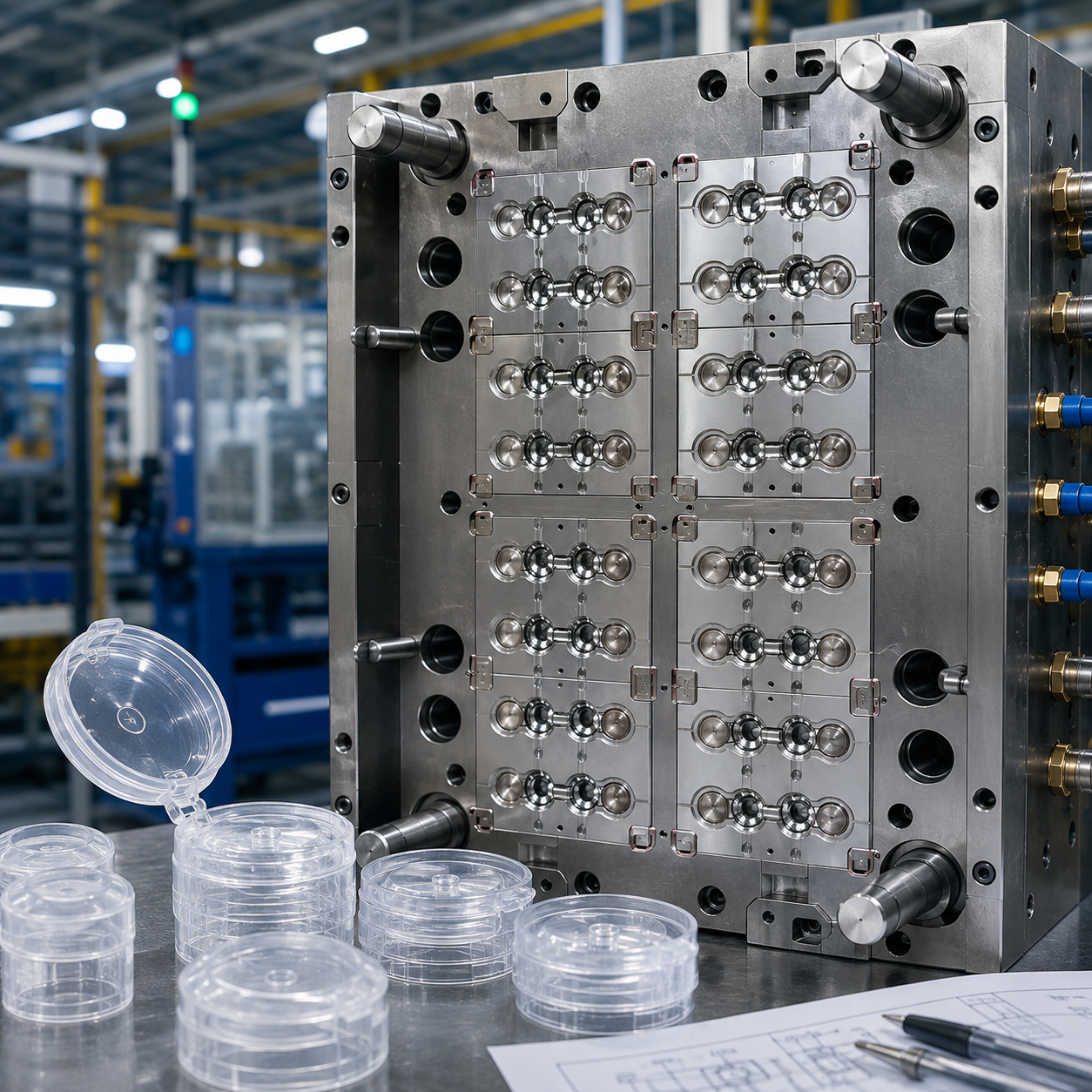

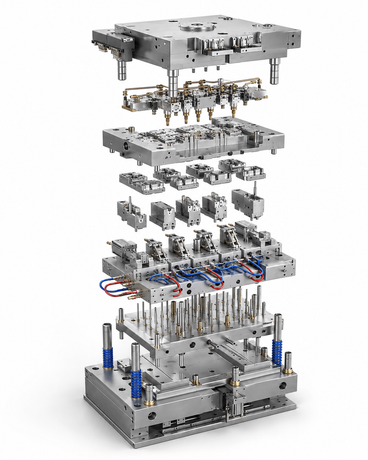

High-Cavity Mold Considerations
As cavity count increases, consistency becomes more critical than output.
- Cavity balance must be controlled across all cavities
- Cooling design must ensure uniform shrinkage
- Gate strategy must avoid hinge stress concentration
- Vent design must support thin-wall filling
- Insert interchangeability is critical for maintenance
Recycled PP & Monomaterial Packaging Impact
Monomaterial packaging and recycled PP introduce more variation in flow, shrinkage, and hinge recovery behavior.
Tooling must compensate through stable:
- Gate balance
- Cooling consistency
- Venting stability
- Hinge geometry control
Buyer Checklist Before Ordering Flip-Top Molds
- Hinge thickness consistency across cavities
- Gate position review for hinge protection
- Cooling layout balance
- Venting near hinge area
- Insert interchangeability design
- CMM inspection capability
- Long-run validation plan
Work With SENLAN
SENLAN provides custom injection molds and precision mold components for packaging applications.
We support:
If you are developing a new flip-top closure or facing hinge durability issues, send your drawings and production requirements for DFM review.
