Living hinge mold design directly affects the durability, flexibility, and long-run stability of high-cavity flip-top cap molds. For PP flip-top closures, hinge performance depends on hinge geometry, gate location, cavity balance, cooling design, venting strategy, insert accuracy, and tooling stability.
In high-cavity production, living hinge failure is rarely caused by material alone. Hinge whitening, cracking, uneven flexibility, flash, short shots, or unstable closing feel often come from small tooling variations that repeat across many cavities during mass production.
That is why buyers should review living hinge design during DFM, before steel cutting, instead of waiting until mold trials expose the problem.
When a flip-top cap cracks after repeated opening and closing, material is often blamed first. PP material selection matters, especially for recycled PP closures and monomaterial packaging. But in a high-cavity flip-top mold, tooling design is just as important.
Before mold manufacturing begins, the DFM stage already defines several conditions that influence hinge life:
hinge thickness and transition radius;
gate-to-hinge distance;
flow direction through the hinge area;
runner balance across cavities;
cooling layout around the cap body and hinge;
venting near thin-wall sections;
core and cavity insert repeatability.
If these decisions are weak, a mold may still produce acceptable first samples. The real issue may appear later, when the mold runs at production speed and every small variation is repeated thousands or millions of times.
The following table connects common flip-top cap mold design topics with the buyer concerns they affect in real production.
Design Area | Main Buyer Concern | Tooling Area to Review |
|---|---|---|
Living hinge mold design | Hinge durability and flexibility | Hinge geometry, thickness, transition radius |
Flip-top cap mold layout | Stable high-volume production | Cavity layout, runner balance, tooling stability |
Cooling design | Warpage, shrinkage, hinge stress | Cooling channels, insert contact, thermal balance |
Venting design | Short shots, burn marks, flash | Vent location, vent depth, parting line condition |
Cavity consistency | Repeatable hinge feel across all cavities | Insert accuracy, cavity inspection, replacement repeatability |
The HINGE framework helps buyers evaluate whether a high-cavity flip-top mold can support long-term hinge performance.
Factor | Meaning | Buyer Review Point |
|---|---|---|
H | Hinge geometry and thickness control | Is hinge thickness consistent across all cavities? |
I | Injection balance across cavities | Does every cavity fill under similar pressure and timing? |
N | Neutral flow and gate strategy | Does the gate location protect hinge performance? |
G | Guided cooling and venting | Are cooling and venting stable near the hinge area? |
E | Endurance validation and tooling stability | Can the mold maintain hinge performance during long production runs? |
Living hinges depend on controlled thickness. If the hinge is too thick, the flip-top cap may feel stiff. If it is too thin, the hinge may whiten, crack, or tear during repeated use.

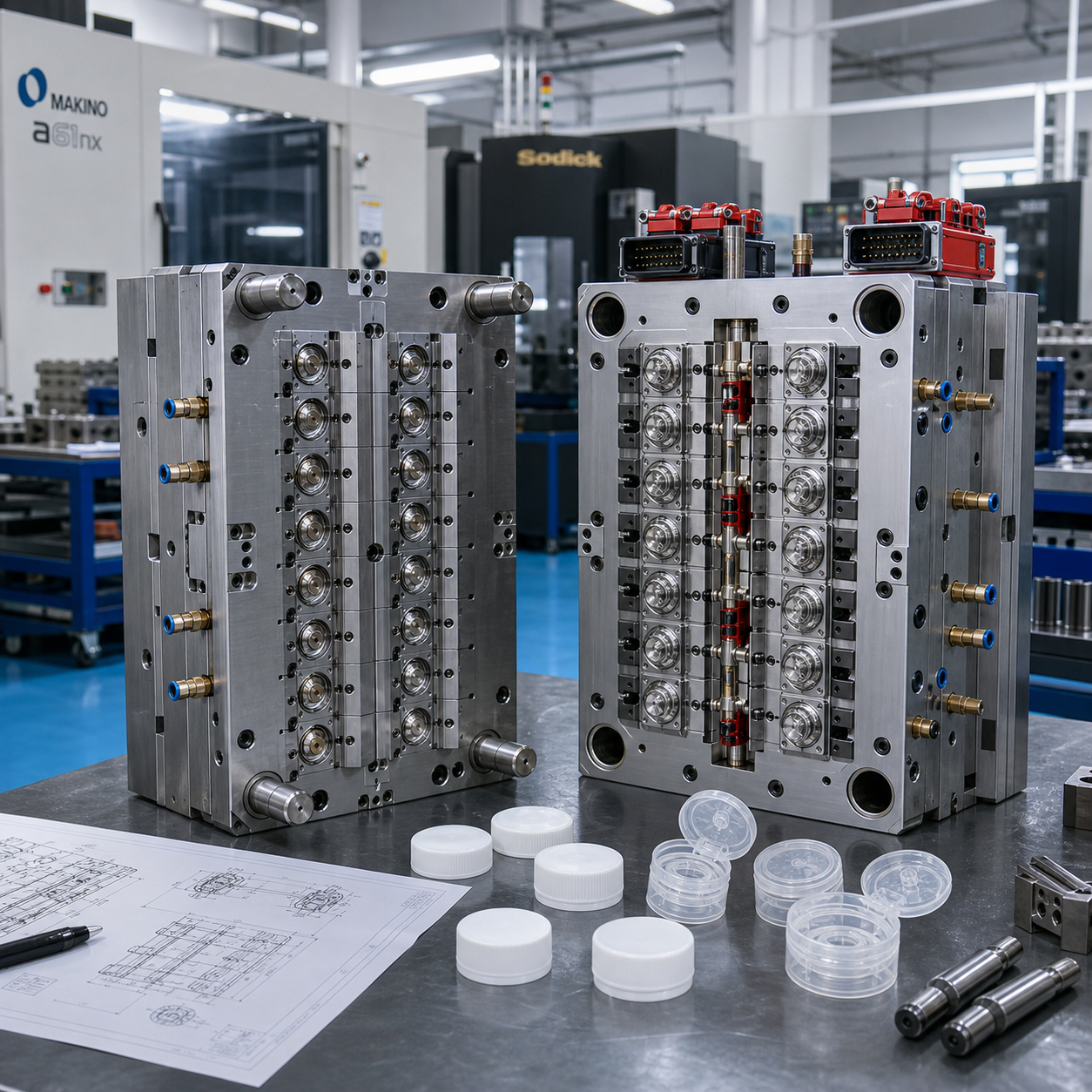

In a single-cavity prototype mold, hinge tuning is easier to observe. In a 48-cavity, 64-cavity, or higher-cavity flip-top cap injection mold, the challenge is different: every cavity must reproduce the same hinge geometry.
Buyers should review:
hinge thickness tolerance;
hinge radius and transition shape;
parting line position around the hinge;
polishing access;
core and cavity insert matching;
steel-safe allowance for hinge tuning.
The goal is not only to make the first sample work. The real goal is to repeat the same hinge behavior across every cavity during mass production.
Gate location in a flip-top cap mold affects more than filling. It influences flow direction, molecular orientation, weld line risk, pressure balance, and stress around the living hinge.
A poor gate location may create flow hesitation, weld lines, or local packing stress near the hinge area. These problems may not be obvious during the first mold trial, but they can later appear as hinge whitening, early cracking, uneven flexibility, or inconsistent closing feel.
During DFM, buyers should ask:
How does the gate position affect material flow through the hinge area?
Will weld lines appear near the hinge, snap-fit, or sealing surface?
Can each cavity fill under similar pressure and timing?
Will the gate mark affect the visible surface?
Can cooling and venting support the selected gate strategy?
For buyer review, gate strategy should be checked together with the mold layout, runner balance, parting line condition, and the precision of the related cap mold components.
Cooling imbalance is one of the most overlooked reasons for living hinge problems. If the cap body, hinge area, and sealing features do not cool evenly, the part may release with internal stress.
Cooling Issue | Possible Effect | Tooling Review Point |
|---|---|---|
Local hot spots | Warpage or delayed shrinkage | Cooling path near cap body and hinge |
Uneven cooling near hinge | Hinge stress or deformation | Insert contact and local thermal balance |
Poor insert contact | Cavity-specific dimensional drift | Insert fit, preload, and replacement accuracy |
Unstable cooling during cycle reduction | Shorter hinge fatigue life | Cycle-time target and cooling efficiency |
Cooling design for flip-top molds should be reviewed together with gate strategy, venting, ejection, and insert structure. Treating cooling as a separate issue may miss the real source of hinge variation.
The living hinge area is thin and sensitive to filling conditions. Poor venting design can cause trapped air, burn marks, short shots, weak surface quality, or flash near the parting line.
Buyers should review venting near:
hinge sections;
thin-wall flow ends;
snap-fit features;
sealing areas;
parting lines around the cap body.
Venting design for injection molds should not be treated as a small maintenance detail. In high-cavity flip-top molds, venting stability directly affects cavity consistency and long-run production stability.
As cavity count increases, the challenge is not only producing more parts per cycle. The real challenge is keeping every cavity stable.
Review Area | Why It Matters | Buyer Question |
|---|---|---|
Cavity balance | Prevents cavity-specific hinge performance differences | How will each cavity be checked during trial? |
Insert repeatability | Controls hinge thickness and cap geometry | Can replacement inserts hold the same critical dimensions? |
Cooling balance | Reduces uneven shrinkage and hinge stress | Is cooling balanced across cap body and hinge areas? |
Inspection method | Confirms whether tooling accuracy is controlled | Are critical inserts checked by CMM or equivalent inspection? |
Cavity consistency in cap molds is especially important for personal care, cosmetic packaging, food packaging, and other applications where appearance, opening feel, sealing fit, and repeatability matter. Precision cavity inserts for packaging molds are one of the key tooling areas to review.
European and North American packaging teams are paying more attention to recyclable and monomaterial packaging structures. PP flip-top closures fit this direction, but material changes can affect molding behavior.
Compared with virgin PP, recycled PP closures may show differences in:
melt flow behavior;
shrinkage;
release characteristics;
surface appearance;
hinge recovery;
process stability.
A stable mold design cannot remove all material variation, but it can provide a wider process window. For monomaterial cap mold projects, gate balance, cooling consistency, venting stability, and hinge geometry control should be reviewed before mold manufacturing.
Symptom | Possible Tooling Cause | What to Review |
|---|---|---|
Hinge whitening | Flow imbalance or local stress | Gate location, flow direction, packing condition |
Cracking after repeated use | Sharp transition or unstable hinge thickness | Hinge radius, insert accuracy, steel-safe tuning |
Uneven flexibility | Cavity inconsistency | Cavity insert dimensions, runner balance, cooling layout |
Flash around hinge | Parting line mismatch or vent wear | Parting surface, vent depth, mold wear |
Deformation | Cooling imbalance or release issue | Cooling layout, insert contact, ejection system |
Short shots near hinge | Poor venting or filling resistance | Vent location, injection window, thin-section flow |
Before approving a new high-cavity flip-top cap mold, buyers should review:
living hinge thickness consistency;
hinge radius and transition design;
gate position and flow direction;
weld line risk near hinge, snap-fit, or sealing areas;
cavity-to-cavity variation;
cooling layout near hinge and cap body;
vent location and vent maintenance plan;
parting line condition around hinge;
mold component interchangeability;
expected cycle time;
PP grade and recycled content;
inspection method for core and cavity inserts;
long-run hinge validation requirements.
SENLAN supports custom injection molds and precision mold components for packaging applications. For flip-top cap mold projects, the review focus goes beyond nominal dimensions and includes hinge geometry, cavity consistency, gate strategy, cooling balance, venting design, tooling stability, and replacement component repeatability.
SENLAN's caps mold components capabilities include cavity inserts, core pins, mold cores, thread inserts, neck rings, sliders, lifters, collapsible cores, CNC and EDM precision mold parts, and custom machined mold components.
For buyers developing new flip-top closures or solving living hinge failure, short shots, flash, weld lines, or cavity-specific defects, the most useful starting point is a technical review of the drawing, target material, cavity count, production machine, cycle time target, and hinge performance requirement.
Living hinge mold design is affected by hinge thickness, hinge radius, gate location, material flow direction, cooling balance, venting, cavity consistency, insert accuracy, and long-run tooling stability.
Living hinge failure can be caused by material selection, but tooling factors are also important. Common mold-related causes include unstable hinge thickness, poor gate location, uneven cooling, insufficient venting, cavity imbalance, parting line issues, and local stress concentration.
Gate location affects material flow direction, weld line risk, pressure balance, and stress around the living hinge. Poor gate strategy can contribute to hinge whitening, cracking, uneven flexibility, or cavity-specific hinge problems.
Each cavity must reproduce the same hinge geometry and molding conditions. If one cavity fills, cools, or vents differently, hinge life and opening feel can vary across the same mold.
Recycled PP can be evaluated for flip-top closures, but the mold and process window should be reviewed carefully. Recycled PP blends may change melt flow, shrinkage, surface appearance, release behavior, and hinge recovery.
Buyers should ask about DFM review, hinge thickness control, gate strategy, cavity balance, cooling layout, venting, steel selection, CMM inspection, trial validation, and replacement component repeatability.
If you are developing a new PP flip-top closure or troubleshooting living hinge durability issues, send your drawing, target material, cavity count, production requirements, and hinge performance target for technical review.
SENLAN can support high-precision mold components and custom mold parts for cap molds, flip-top closures, cosmetic packaging mold components, medical consumables molds, and related packaging mold projects.
